RICH SOLAR MEGA 100 & Onyx 100W 12V Off-Grid Solar Panel
Rich Solar
- Regular price
- Price: $95.99
- Regular price
- List Price:
- Sale price
- Price: $95.99
- Unit price
- per
Couldn't load pickup availability
Share
PRODUCT DESCRIPTION
Power Your Off-Grid Freedom with the RICH SOLAR MEGA 100 & Onyx 100W Solar Panel

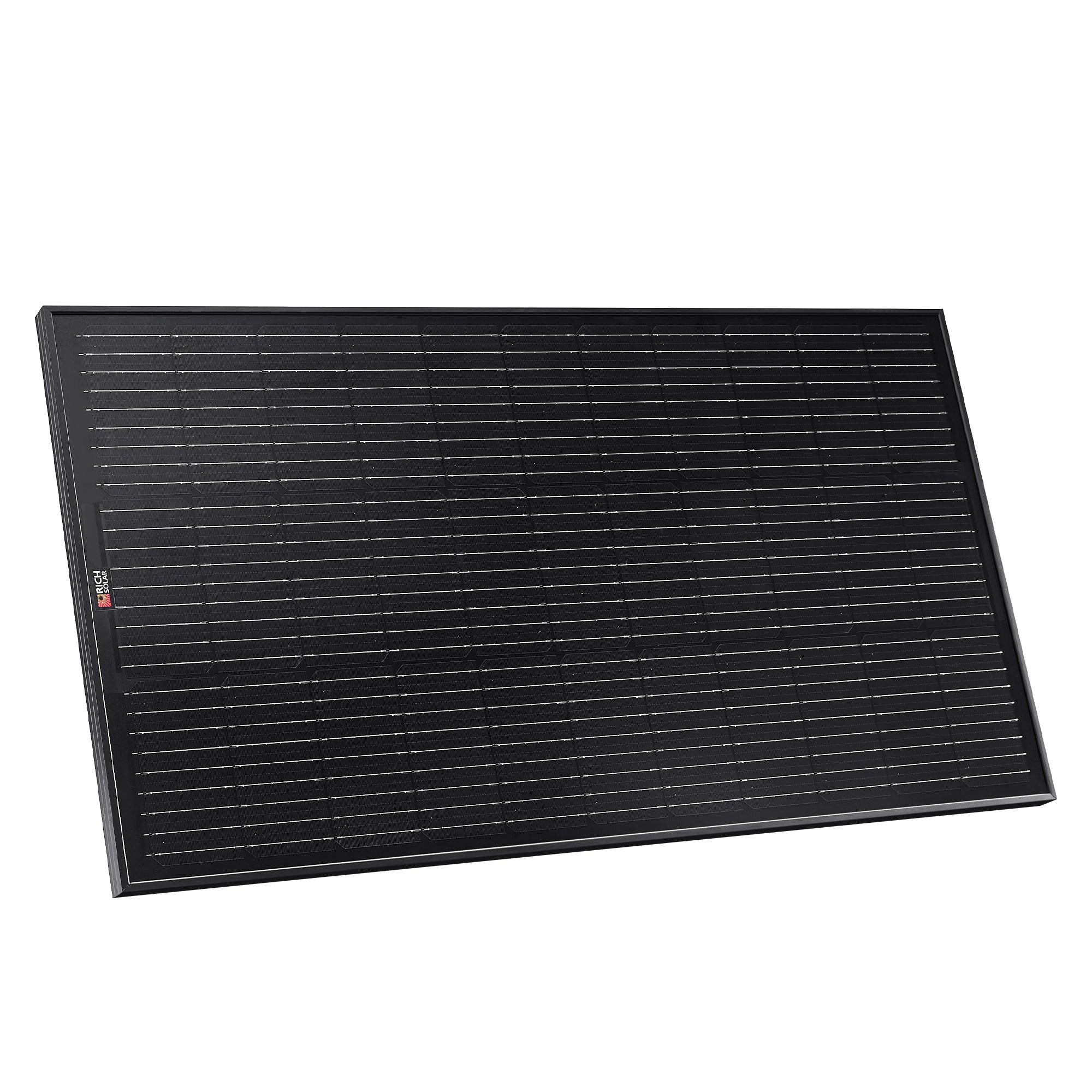

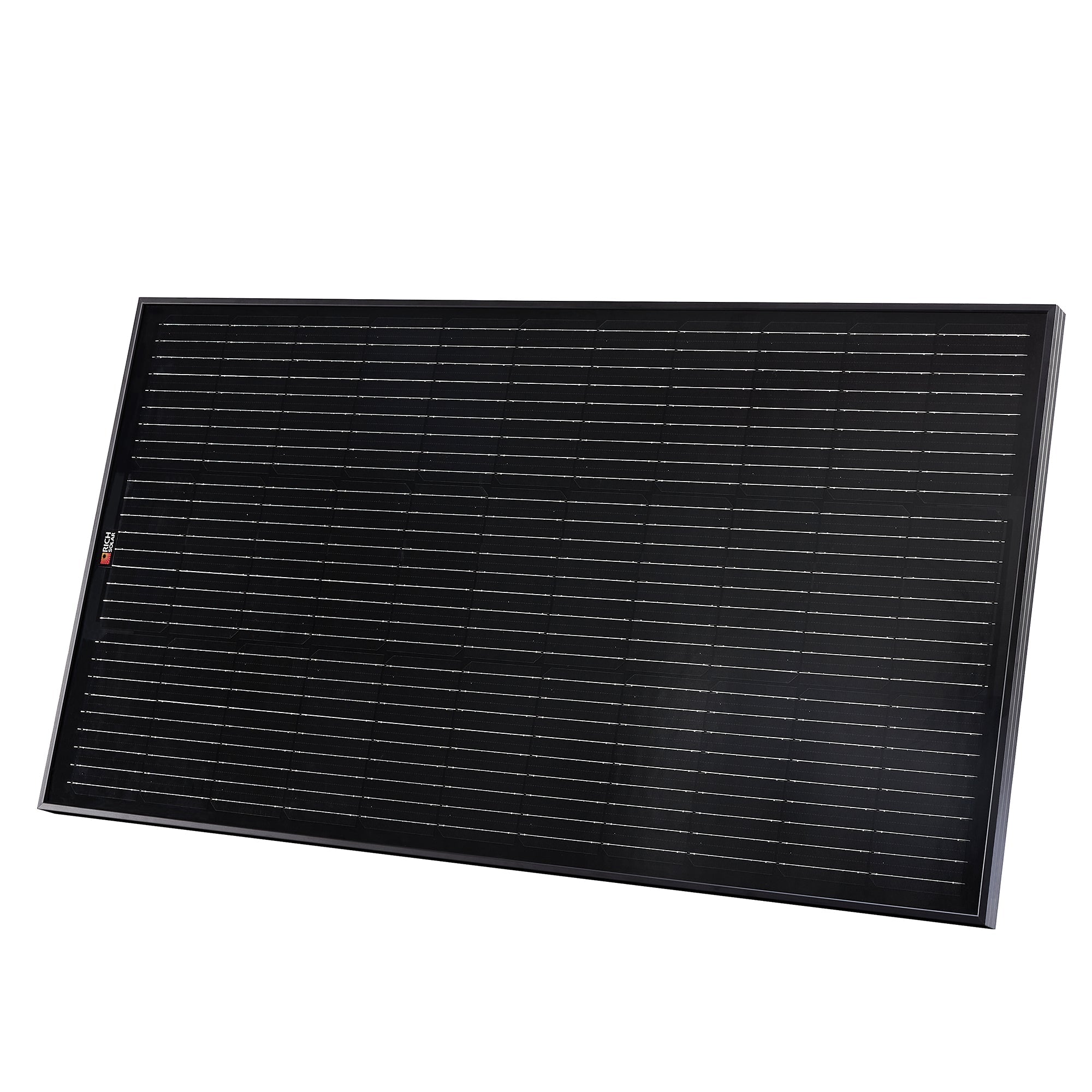

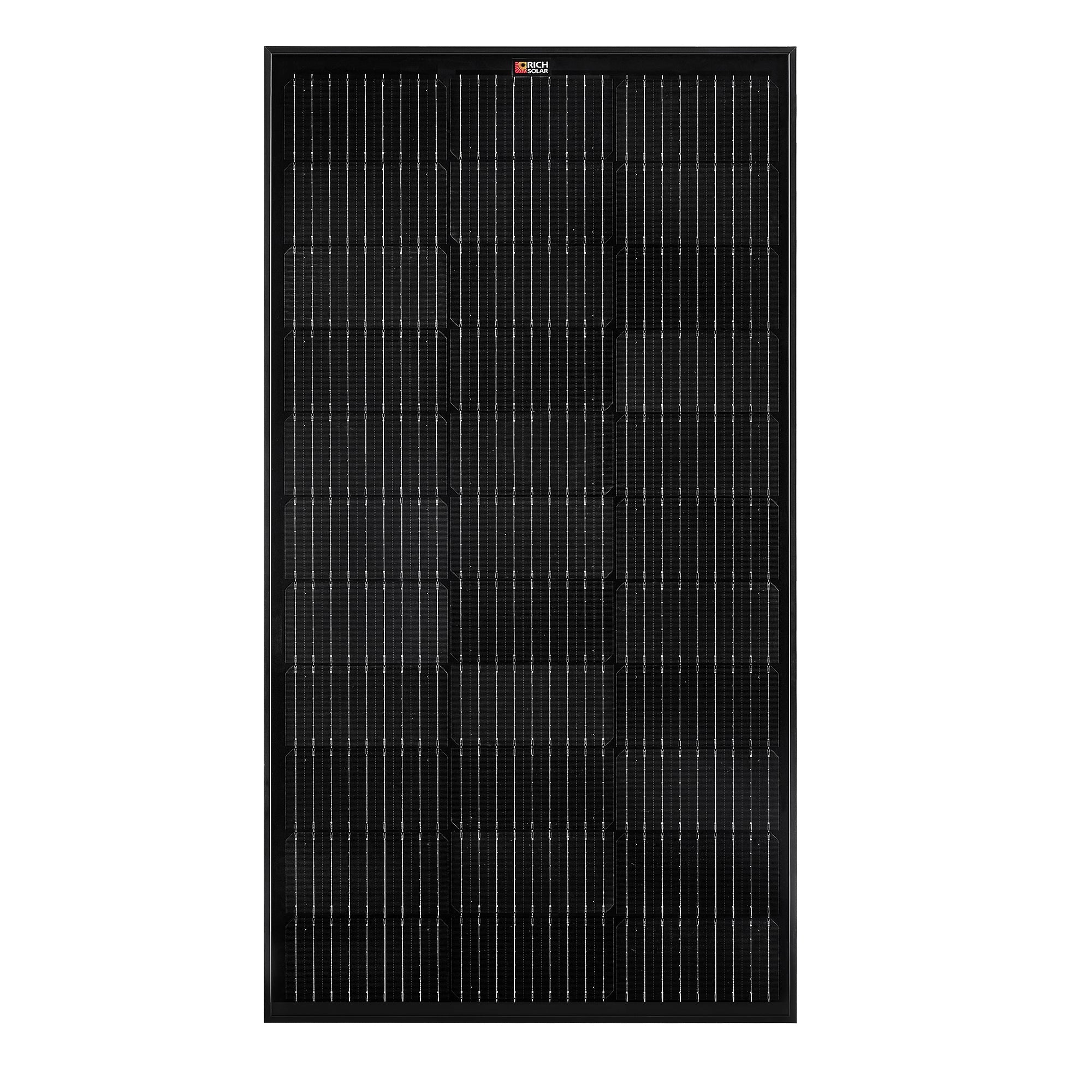

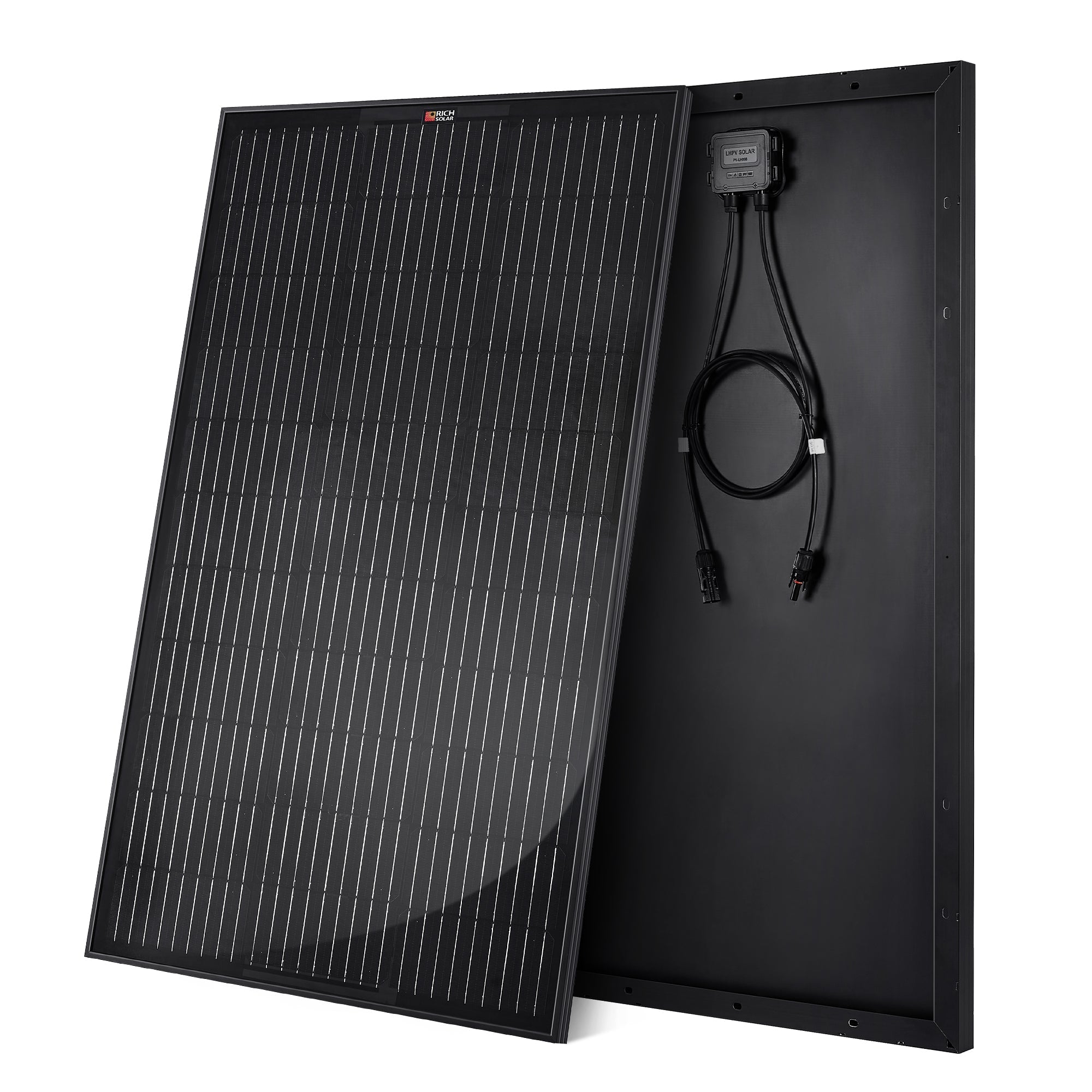

Whether you are building out a camper van, setting up an off-grid cabin, or keeping your marine batteries topped off, the RICH SOLAR MEGA 100 Series 12-Volt Monocrystalline Solar Panel delivers reliable, high-efficiency power in a lightweight, commercial-grade package. Available in both the standard classic silver and the ultra-sleek, premium all-black Onyx Edition (RS-M100B), this panel is engineered to maximize energy capture even in demanding environments.
Key Features & Performance Benefits

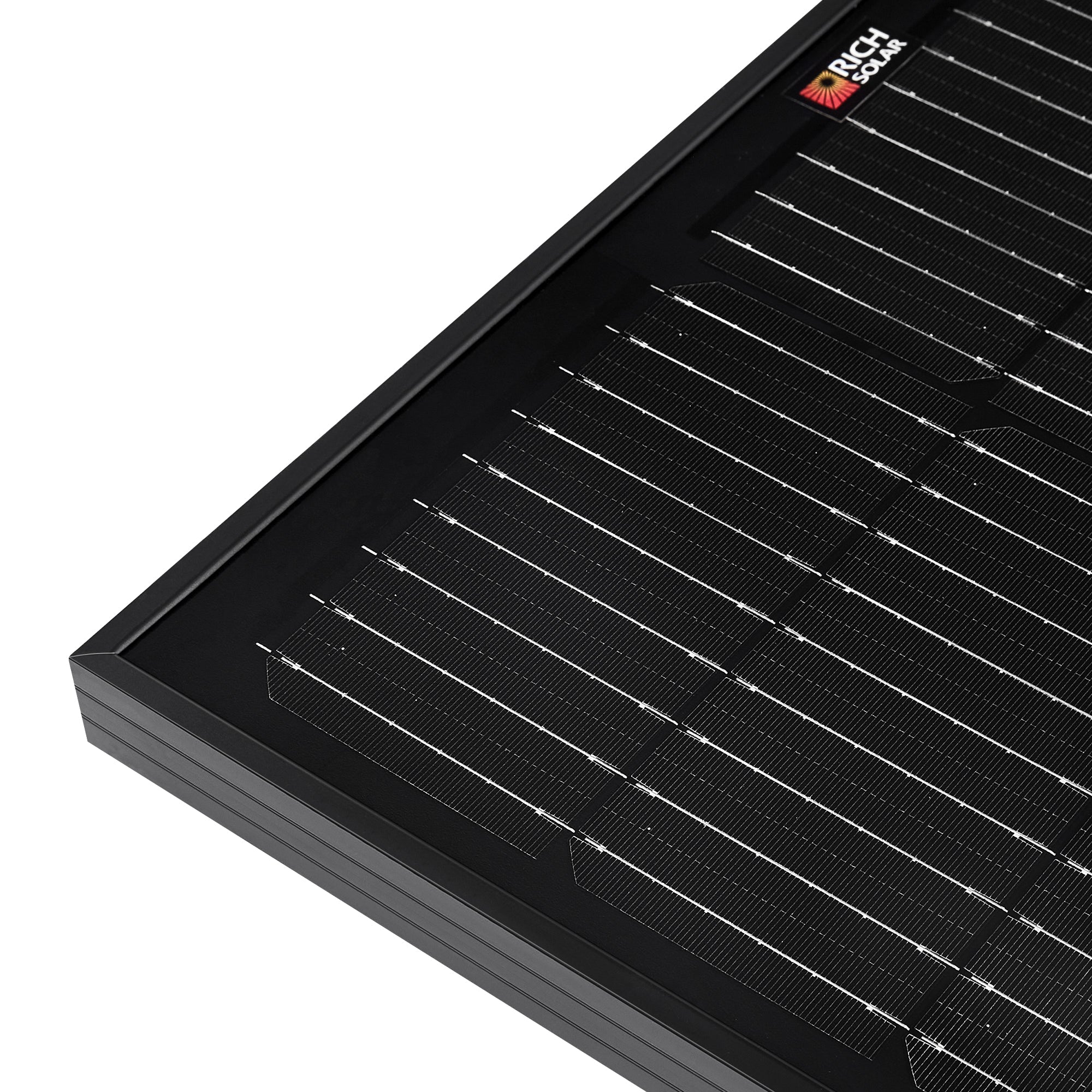

- Grade A+ Monocrystalline Cells: Features high-density 33-cell layout boasting up to 22.6% cell efficiency for maximum output per square inch.
- Low-Light & Shade Optimization: Equipped with built-in bypass diodes to minimize power drops caused by partial shade, morning mist, or heavy overcast skies.
- All-Weather Durability: Constructed with anti-reflective (AR) coated tempered glass and a heavy-duty anodized aluminum frame capable of enduring 2400 Pa wind speeds and 5400 Pa snow loads.

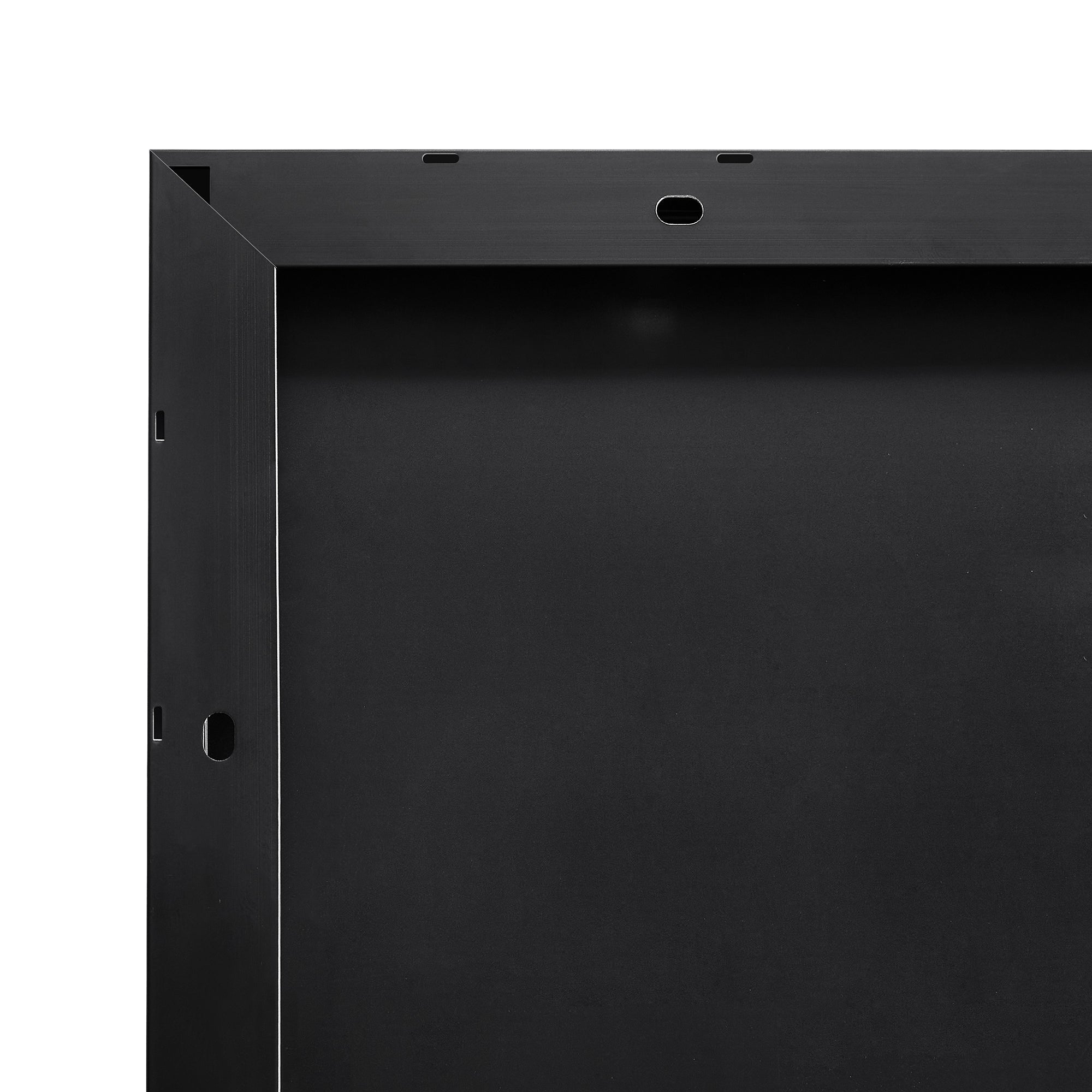

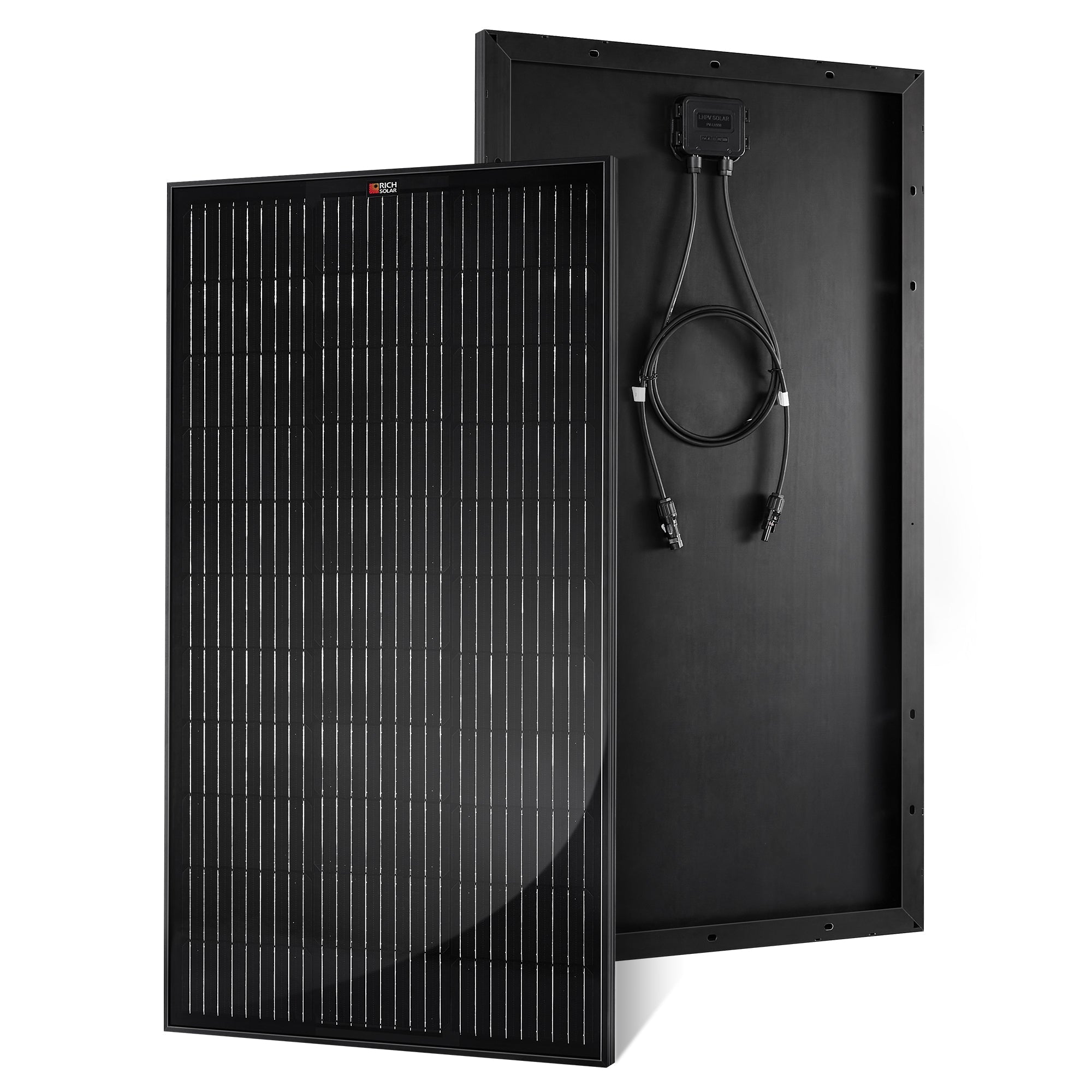

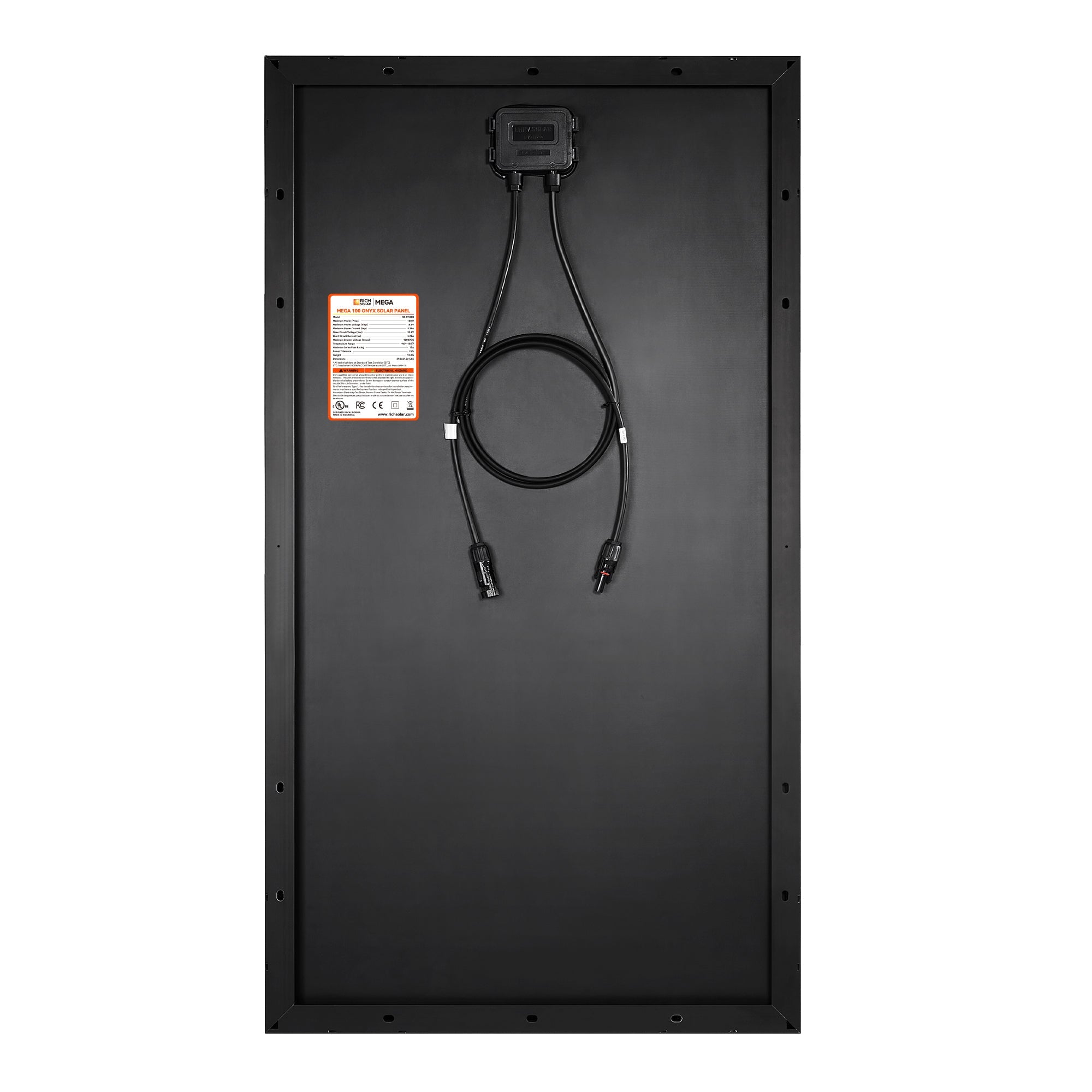

- Plug-and-Play Ready: Includes pre-drilled holes for rapid mounting and an attached 35-inch output cable with waterproof IP67 MC4 connectors.
- Industry-Leading 25-Year Warranty: Guaranteed performance output ensuring your long-term investment is fully protected over decades of seasonal use.
RICH SOLAR MEGA 100 vs. MEGA 100 Onyx Variant Comparison
Both models share identical footprint dimensions, interior cell architectures, and electrical output characteristics. Choose the variation that best aligns with your aesthetic build preferences:
| Specification / Feature | MEGA 100 Standard (RS-M100) | MEGA 100 Onyx Black (RS-M100B) |
|---|---|---|
| Frame Color / Finish | Anodized Aluminum Silver | Sleek Matte Onyx Black |
| Backsheet Color | White | All-Black Aesthetic |
| Maximum Power Output | 100 Watts | 100 Watts |
| Best Application Type | Standard utility installations, cabins | Premium overlanding rigs, modern RVs |
EXPLORE MEGA 100 ONYX (BLACK):
EXPLORE MEGA 100 SILVER:

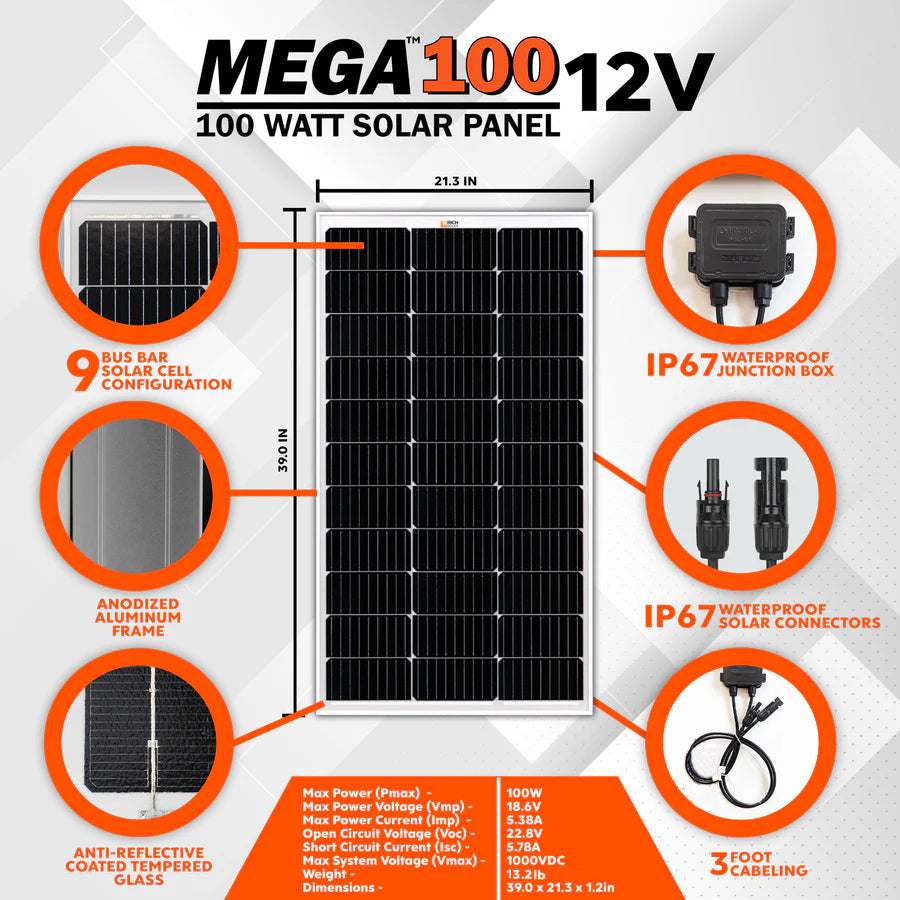

Technical Specifications & Electrical Parameters

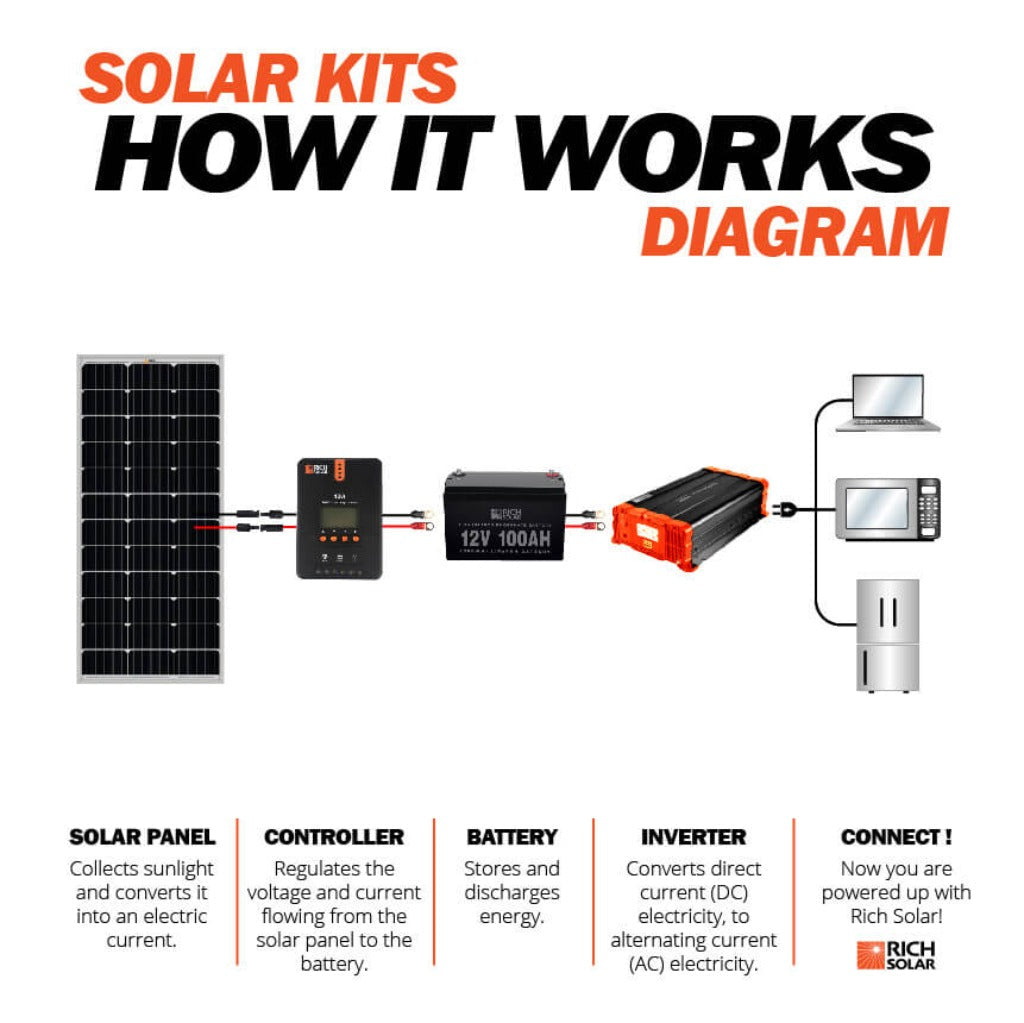

Engineered for seamless integration with standard 12V battery banks, MPPT/PWM charge controllers, and pure sine wave inverters:
- Maximum Power (Pmax): 100W
- Maximum Power Voltage (Vmp): 18.6V
- Maximum Power Current (Imp): 5.38A
- Open Circuit Voltage (Voc): 22.8V
- Short Circuit Current (Isc): 5.78A
- Maximum System Voltage (Vmax): 1000VDC
- Operating Temperature Range: -40°F to +185°F
- Weight: 13.2 lbs

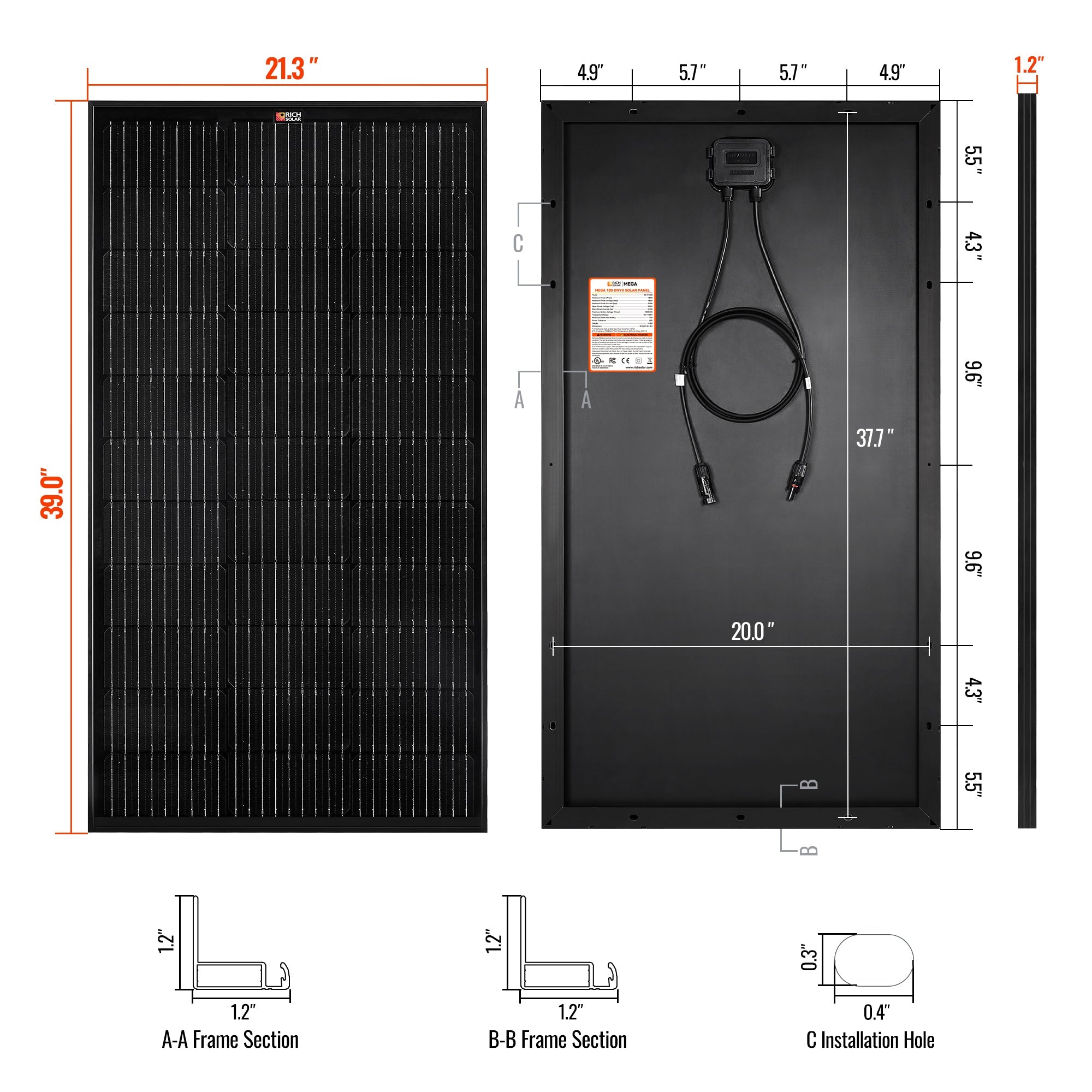

- Dimensions: 39.0 x 21.3 x 1.2 inches
Frequently Asked Questions
Can I connect multiple RICH SOLAR MEGA 100W panels together?
Yes. You can connect multiple 100W panels in series to increase the total system voltage or in parallel to boost system amperage, depending on your charge controller requirements.
Do I need an inverter to use this 100-watt solar panel?
An inverter is not needed if you are solely charging a 12V battery pack via a charge controller. You only need an inverter to convert the stored DC battery power into 110V AC power to operate standard home appliances.
Will this solar panel continue to charge my battery during the winter?
Yes. Solar panels generate power from sunlight, not ambient heat. In fact, cold winter air can improve cell efficiency. Ensure the tempered glass surface remains completely clear of snow, mud, or debris obstructions for optimal performance.
Does this panel prevent overnight battery drainage?
When integrated with any quality PWM or MPPT solar charge controller, the system prevents reverse current paths, keeping your batteries from discharging back into the solar cells at night.
Will this panel work with my existing solar charge controller and battery bank?
Yes. This is a 12V panel and will work with any properly sized 12V MPPT or PWM charge controller and battery bank, including AGM, gel, sealed lead-acid, or LiFePO4 batteries. Match the controller's rated input voltage and current to the panel's specs listed above before wiring it in.
Will a tree branch or roof vent shading part of the panel kill its output?
No. Bypass diodes are built in precisely for that, routing current around shaded cells so the remainder keeps producing. Output drops in proportion to the area shaded rather than falling off a cliff. Persistent shading is still worth designing out where you can.
Does this come with brackets, or do I buy those separately?
Usually separately. What is built in is the pre-drilled mounting points on the frame; the bracket style depends on where it is going — Z-brackets for a flat roof, rails for a rack, tilt legs for a ground mount. Confirm against the specifications above before ordering.
Is this panel waterproof for outdoor, marine, or RV use?
Yes. It's built with a sealed, IP-rated waterproof junction box and weatherproof MC4 connectors (see the exact IP rating in the specifications above) and a corrosion-resistant aluminum frame, so it's rated for permanent outdoor, marine, and RV rooftop exposure.
How long is this panel guaranteed for?
Two separate periods apply: 25 years on power output, and 10 years on workmanship. The output warranty is the one that matters long-term, since panels degrade gradually rather than failing outright. See the specifications above for this model's terms.
Do I need an electrician to install this panel?
Most owners install and wire these panels themselves using the included MC4 connectors, since it's a DC-only component. If you're tying the system into your home's AC wiring through an inverter or hybrid system, we recommend a licensed electrician for that portion of the install.
