RICH SOLAR Mega 100 Slim & Onyx 100W 12V Solar Panel

Maximize Your Off-Grid Roof Space with the RICH SOLAR Mega 100 Slim Series

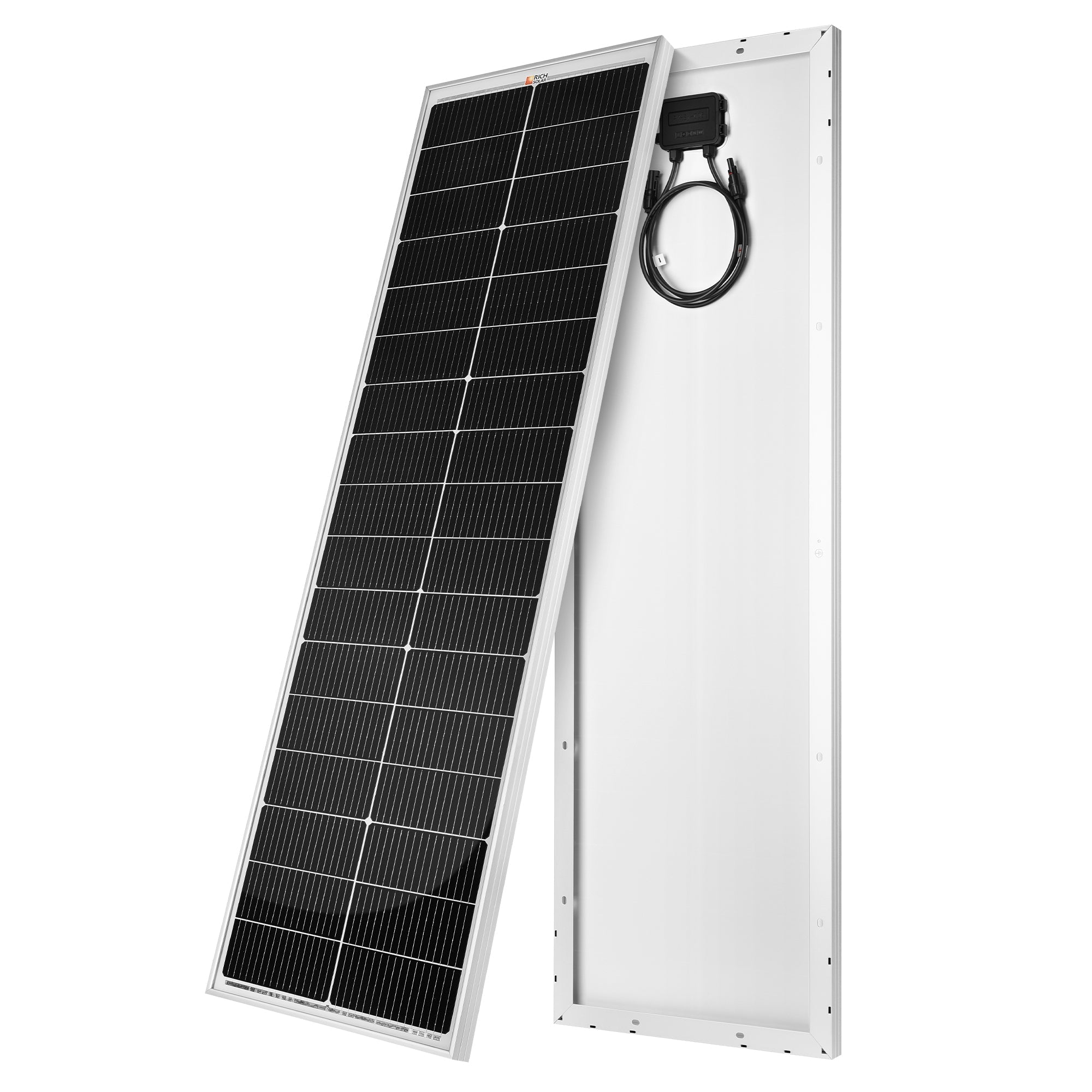

When it comes to off-grid mobile builds, roof space is prime real estate. The RICH SOLAR Mega 100 Slim 100-Watt 12V Monocrystalline Solar Panel is engineered specifically to resolve space constraints on Class B RVs, converted vans, overlanders, and boats. With its ultra-narrow profile measuring just 15.7 inches wide, this premium panel delivers a powerful 100W output without occupying excessive space.

Available in two design variants—the classic silver-framed Mega 100 Slim and the sleek, stealth-look Mega 100 Slim Onyx (All-Black)—this off-grid power solution pairs high efficiency with rugged durability.

Mega 100 Slim Onyx (All-Black):

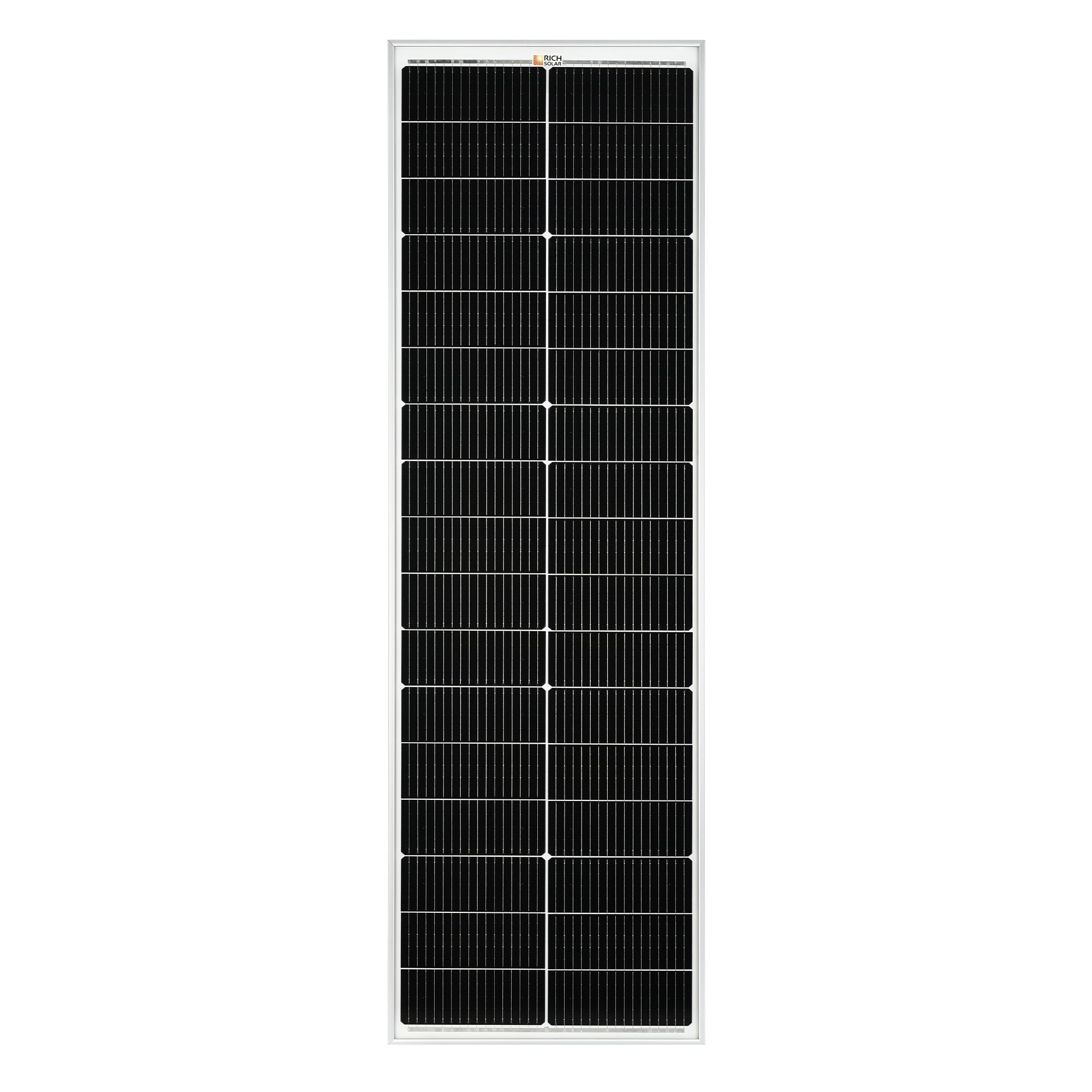

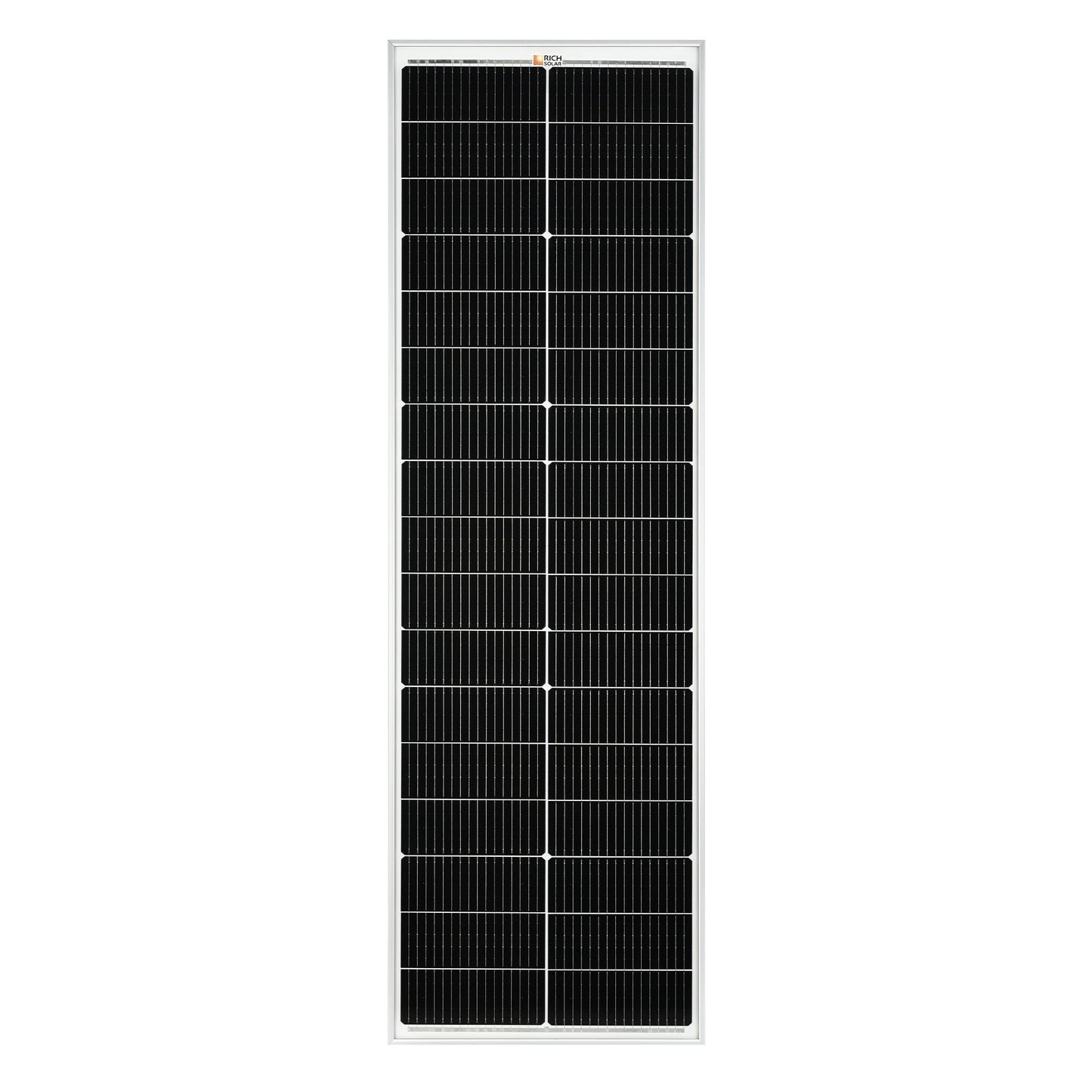

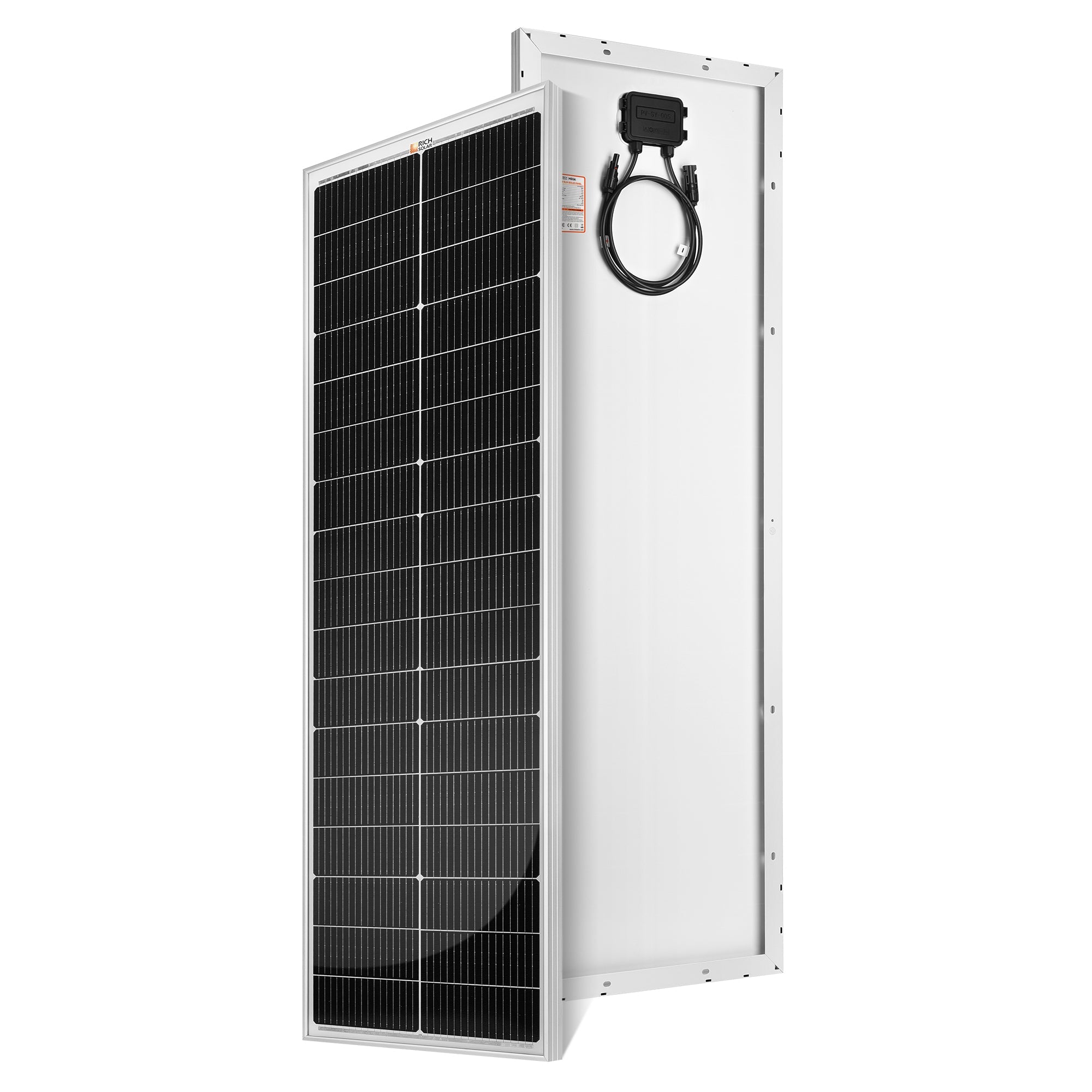

Mega 100 Slim Silver:

Key Features & Performance Benefits

• Ultra-Narrow Footprint: Measuring 50.0" x 15.7" x 1.2", it features an 11.8% smaller footprint than older generational models, easily slotting between roof racks, vents, and air conditioning units.

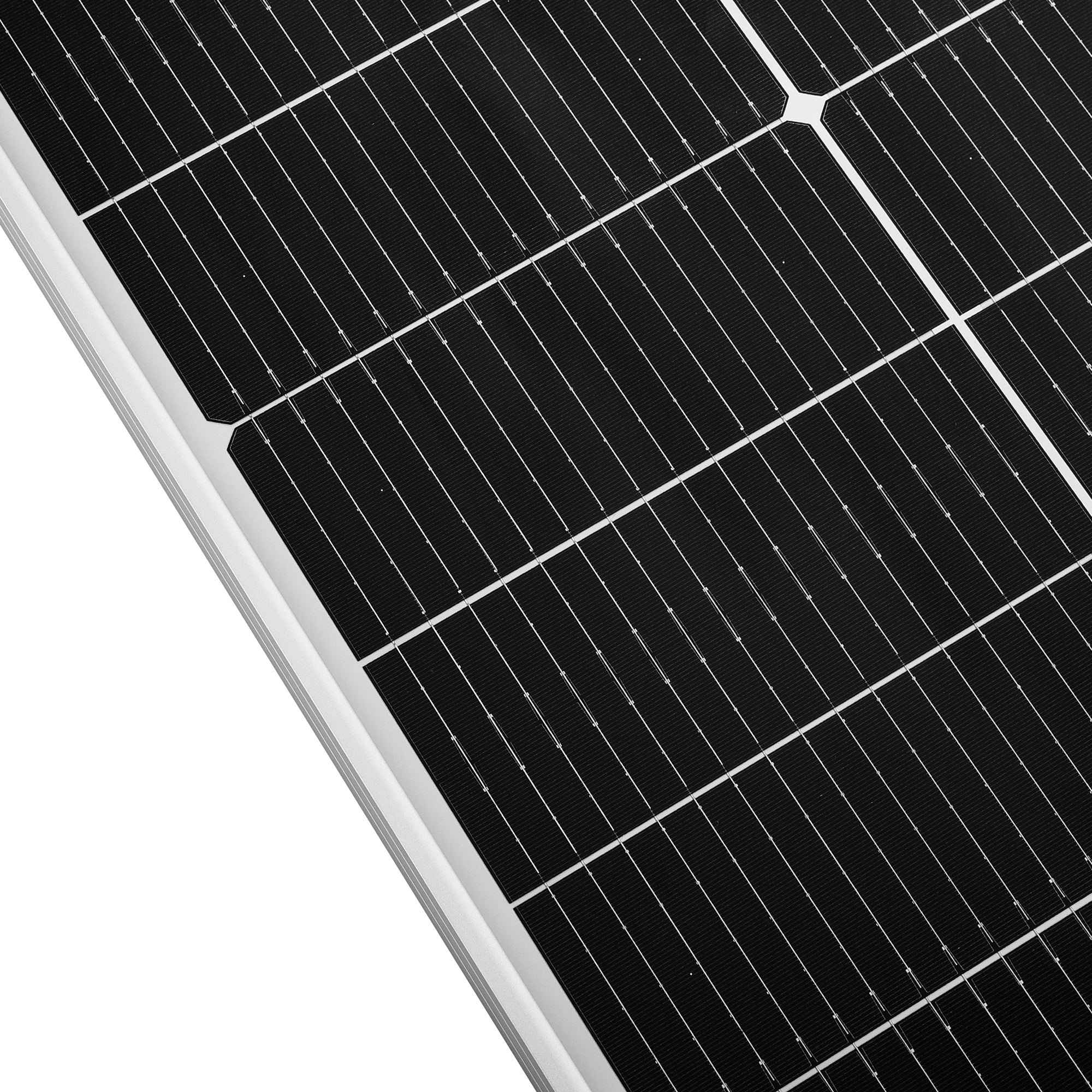

• Advanced N-Type TOPCon Technology: Equipped with cutting-edge N-type TOPCon solar cells, providing a maximum efficiency of 25.1%. Expect superior energy conversion, even under low-light or high-temperature conditions.

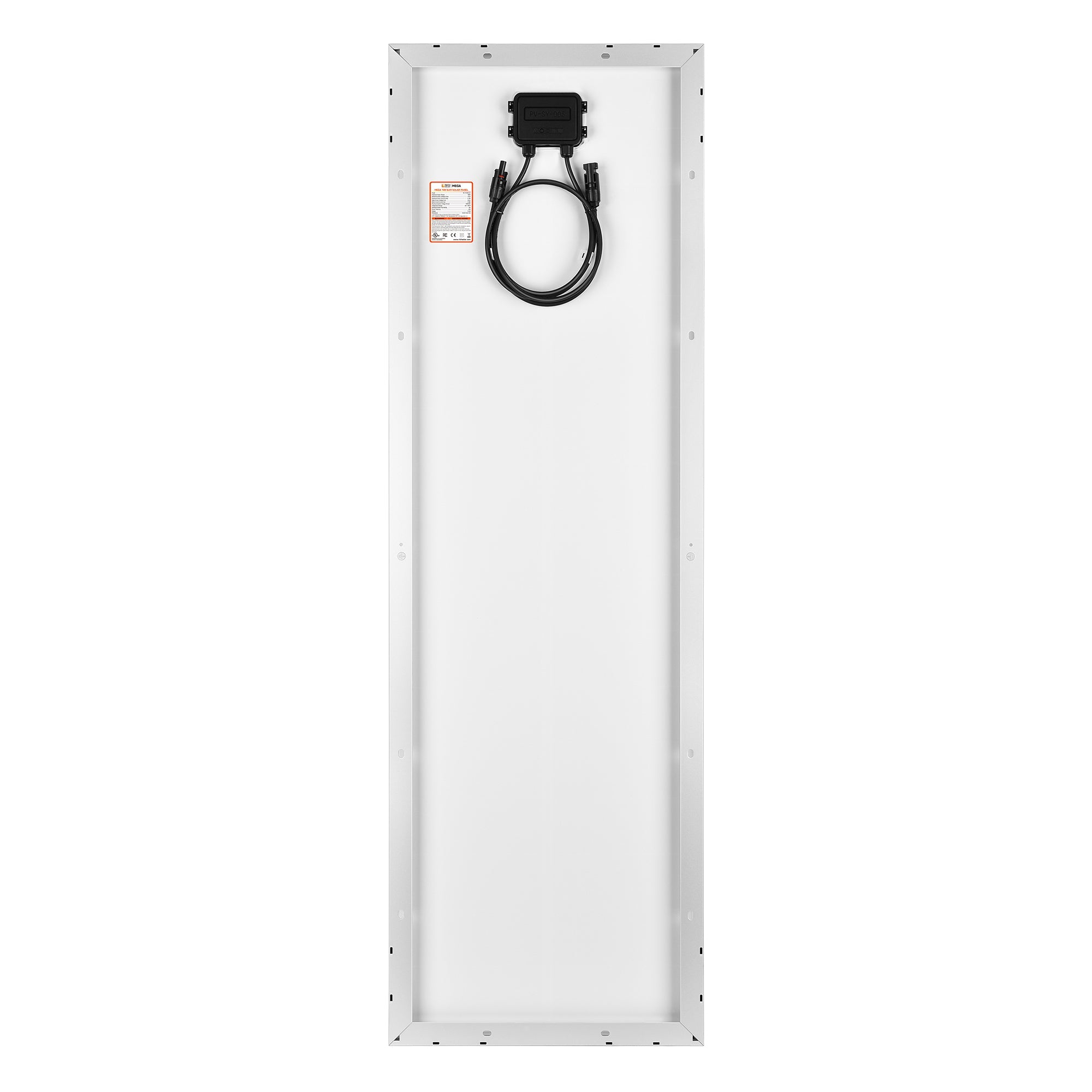

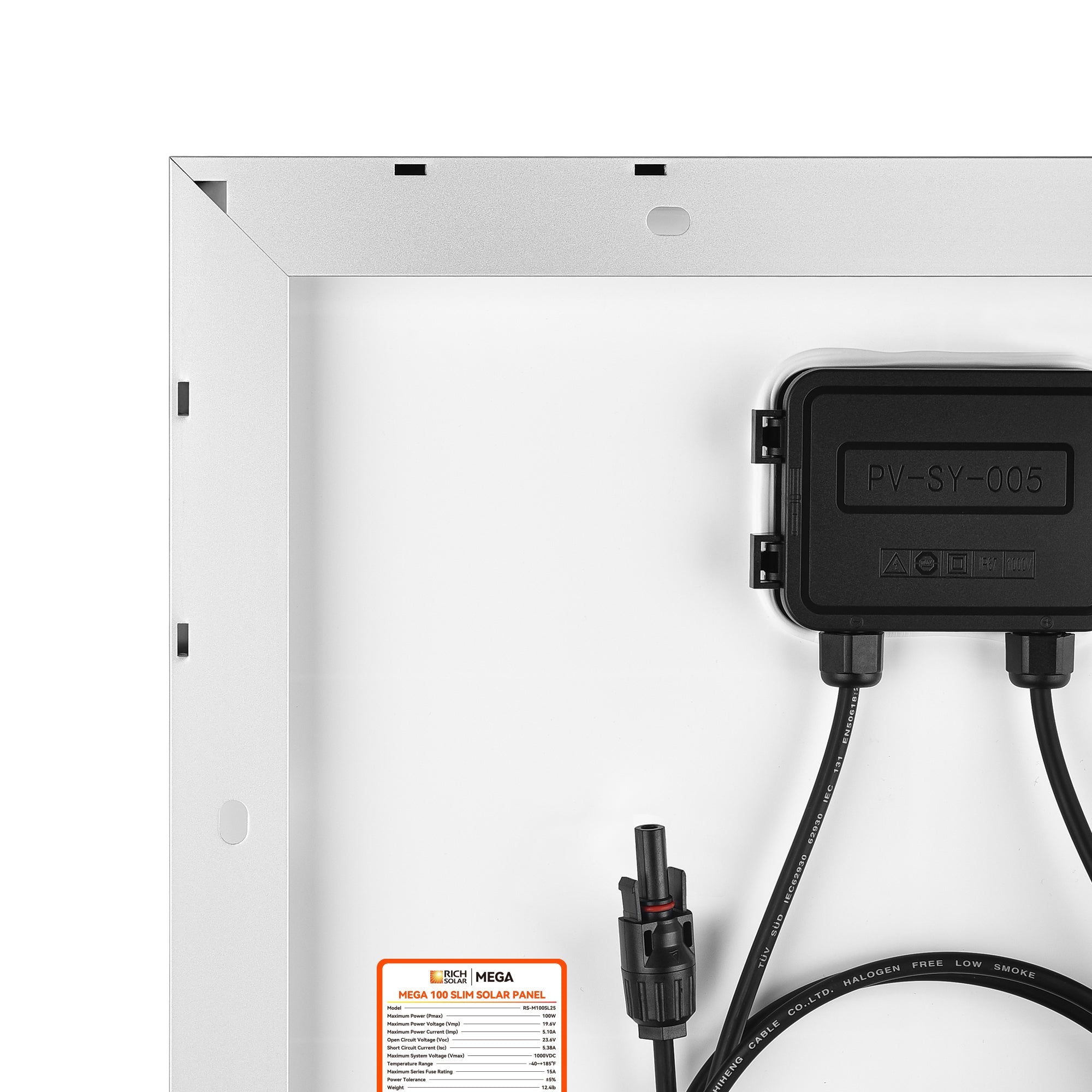

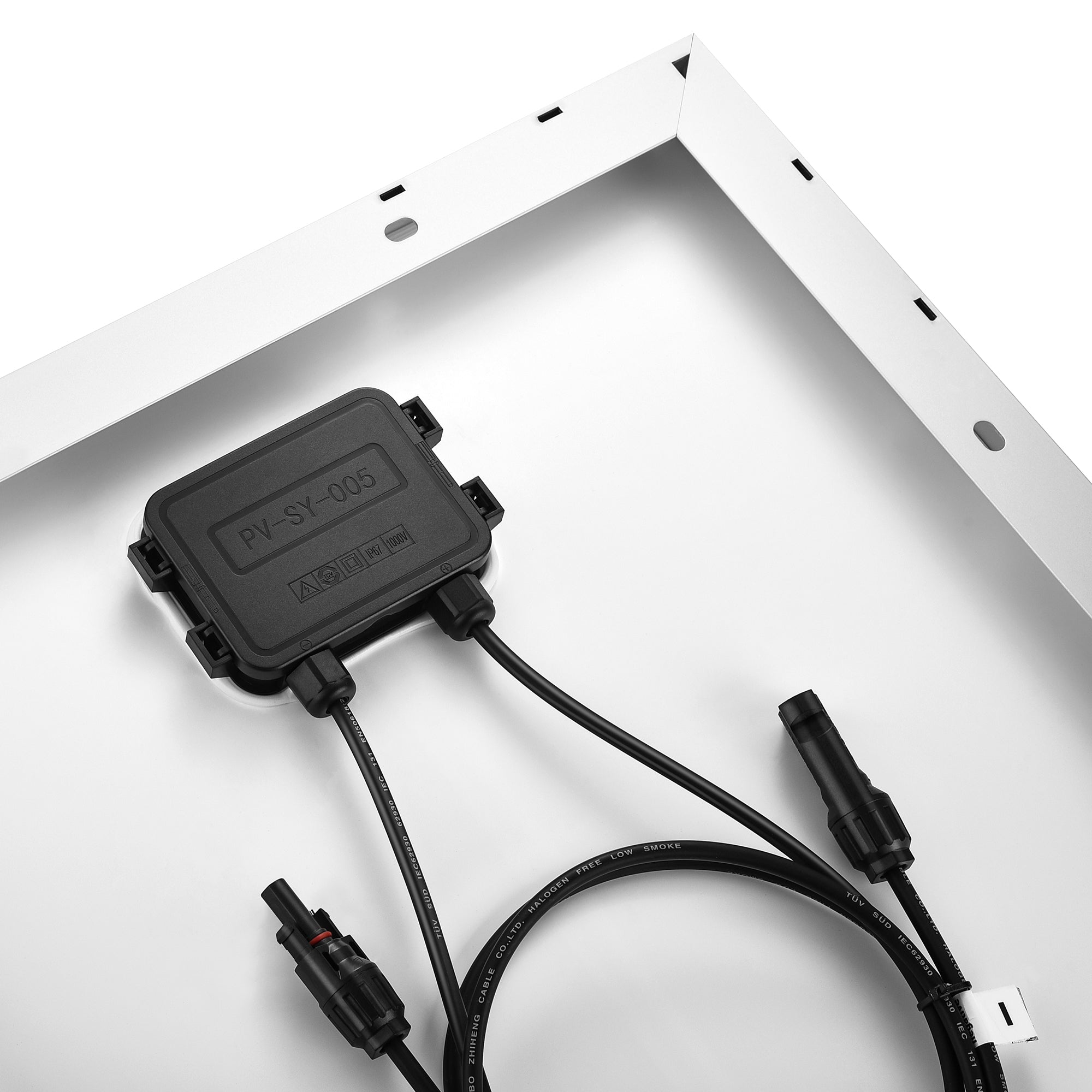

• Weather-Resilient Construction: Features an IP67-rated waterproof junction box and pre-attached MC4 connectors. It is structurally certified to withstand heavy snow loads up to 5400Pa and high wind loads up to 2400Pa.
• Industry-Leading 25-Year Performance Warranty: Rest easy knowing your investment is protected. The manufacturer guarantees more than 95% output after 5 years, 90% after 10 years, and a solid 80% output after 25 years.

Variant Comparison: Slim (Silver) vs. Onyx (Black)

Choose the model that best matches your aesthetic and thermal environment. Both variants share identical electrical specifications, dimensions, and structural integrity.

Technical Specifications

• Maximum Power (Pmax): 100W
• Maximum Power Voltage (Vmp): 19.6V
• Maximum Power Current (Imp): 5.01A / 5.1A
• Open Circuit Voltage (Voc): 23.6V
• Short Circuit Current (Isc): 5.38A
• Maximum System Voltage (Vmax): 1000VDC

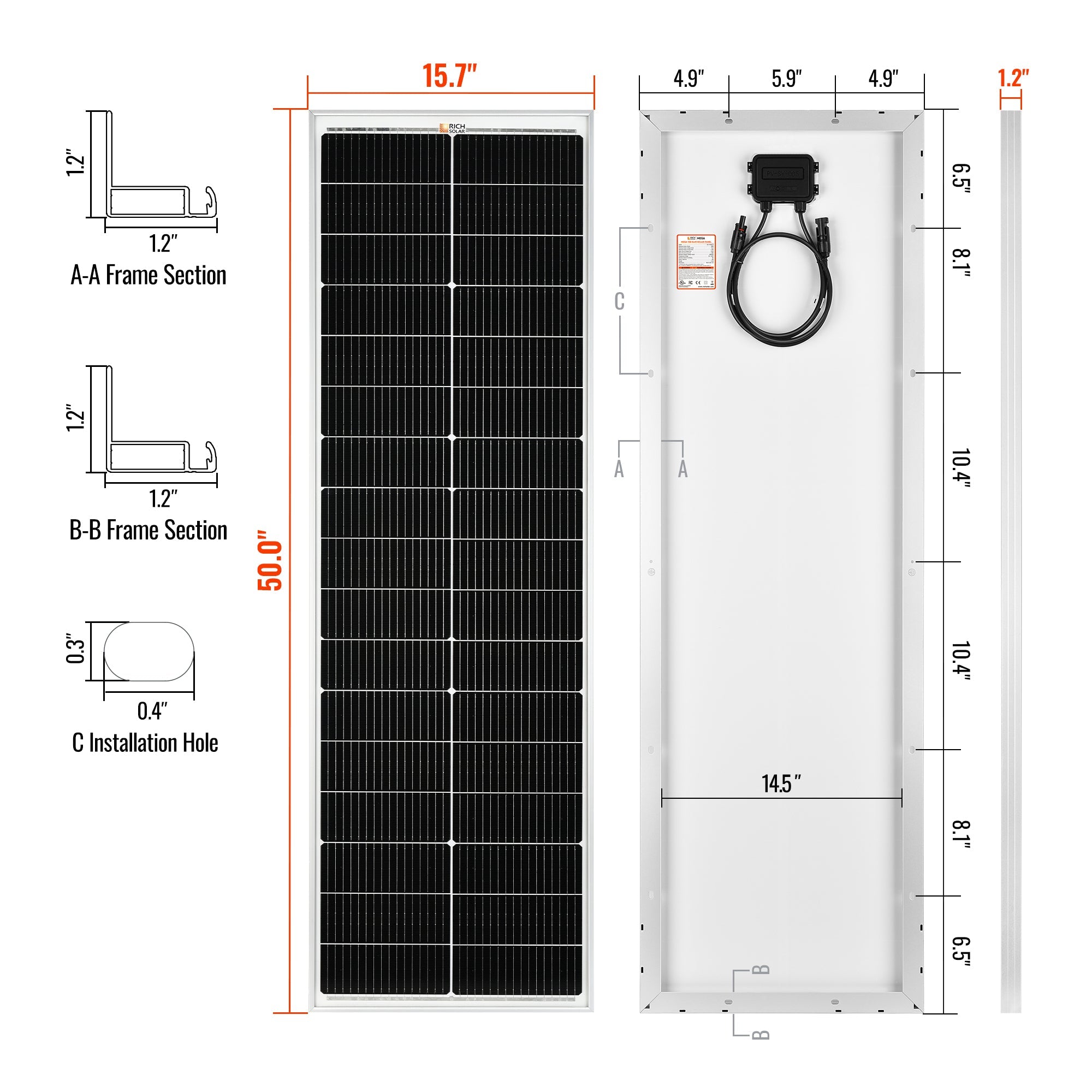

• Dimensions: 50.0 in × 15.7 in × 1.2 in
• Weight: 12.4 lbs
• Operating Temperature Range: -40°F to +185°F

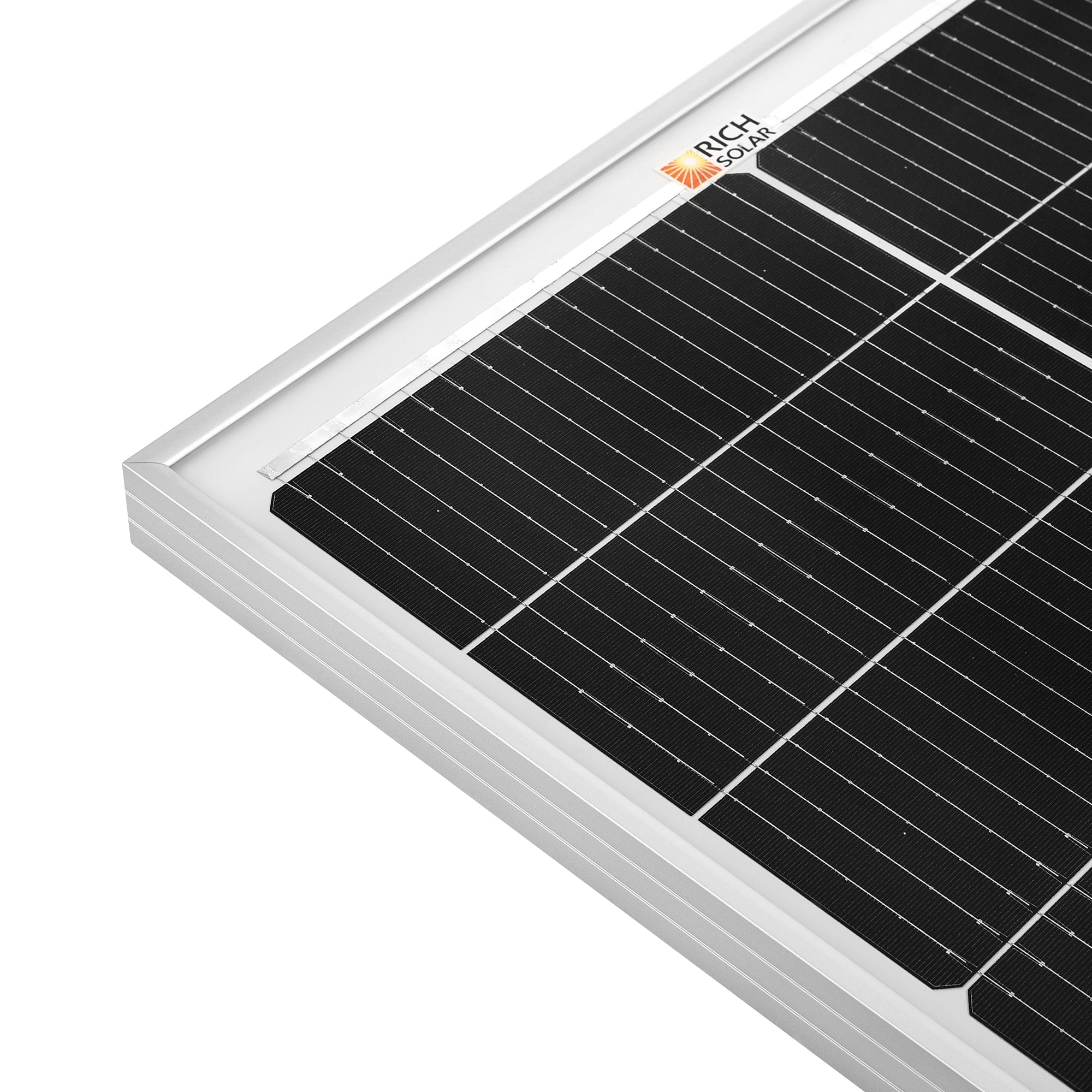

• Material: Tempered Glass, Heavy-Duty Aluminum Frame, Monocrystalline Silicon
• Cable Length: Pre-attached ≈ 35 - 48 inches with MC4 Connectors

Frequently Asked Questions

Can I use the RICH SOLAR Mega 100 Slim to charge my battery directly?
No, you should never connect a solar panel directly to a battery. A solar charge controller must be installed between the panel and the battery to regulate voltage and prevent overcharging or reverse current drainage at night.

Do I need an inverter for my off-grid solar setup?
An inverter is only required if you intend to run standard household appliances that operate on 110V AC power (such as microwaves, laptops, or TVs). If you are only running native 12V DC components (like lights, USB outlets, or 12V fridges), a battery and charge controller are sufficient.

How well do N-Type TOPCon cells perform during winter?
Solar panels function excellently in cold weather conditions, as cooler temperatures improve solar cell efficiency. As long as sunlight hits the panel, it will generate electricity. Ensure that snow, shade, or dirt accumulation is regularly cleared off the face of the panel to maintain optimal generation.

Does installing these panels require drilling holes into my vehicle roof?
While the panel comes with pre-drilled holes for secure physical mounting, roof penetration isn't always mandatory. Depending on your vehicle setup or roof rack structure, many installers use high-strength solar mounting brackets paired with heavy-duty industrial sealants/adhesives to eliminate drilling.

What makes a 'Slim' panel different from Rich Solar's standard rigid panels?
The Slim series uses a thinner, lighter aluminum frame than Rich Solar's standard MEGA panels while keeping the same 12V monocrystalline cell technology, so you get comparable output in a lower-profile, easier-to-mount package — ideal for van and RV roofs where space and weight matter.

Is a Slim panel this thin still durable enough for daily use?
Yes. Despite the reduced thickness, it uses the same tempered glass and aluminum-framed construction as Rich Solar's standard panels, rated to withstand normal wind and snow loads. See the specifications above for its exact wind/snow load rating.

Will this fit on my van or RV roof with limited clearance?
Yes, that's the main use case for the Slim series. Check the exact length, width, and thickness in the specifications above against your roof's available space and existing roof-rack or vent layout before ordering.

Is this a flexible panel I can walk on or bend around a curved roof?
No — this is a rigid, thin-profile panel, not a flexible/bendable panel. It has a standard aluminum frame and tempered glass surface and should be mounted flat; it's not designed to be walked on or flexed around curves.

How do I wire it into my van or RV's existing electrical system?
The panel outputs 12V DC through standard MC4 connectors, so it wires into any properly sized 12V solar charge controller the same way a standard rigid panel would — no special adapters needed.

Is it waterproof for driving in rain or washing the vehicle?
Yes. It uses a sealed, IP-rated waterproof junction box and weatherproof MC4 connectors (see the specifications above for the exact rating), so normal rain and washing won't affect it once properly mounted and sealed.
