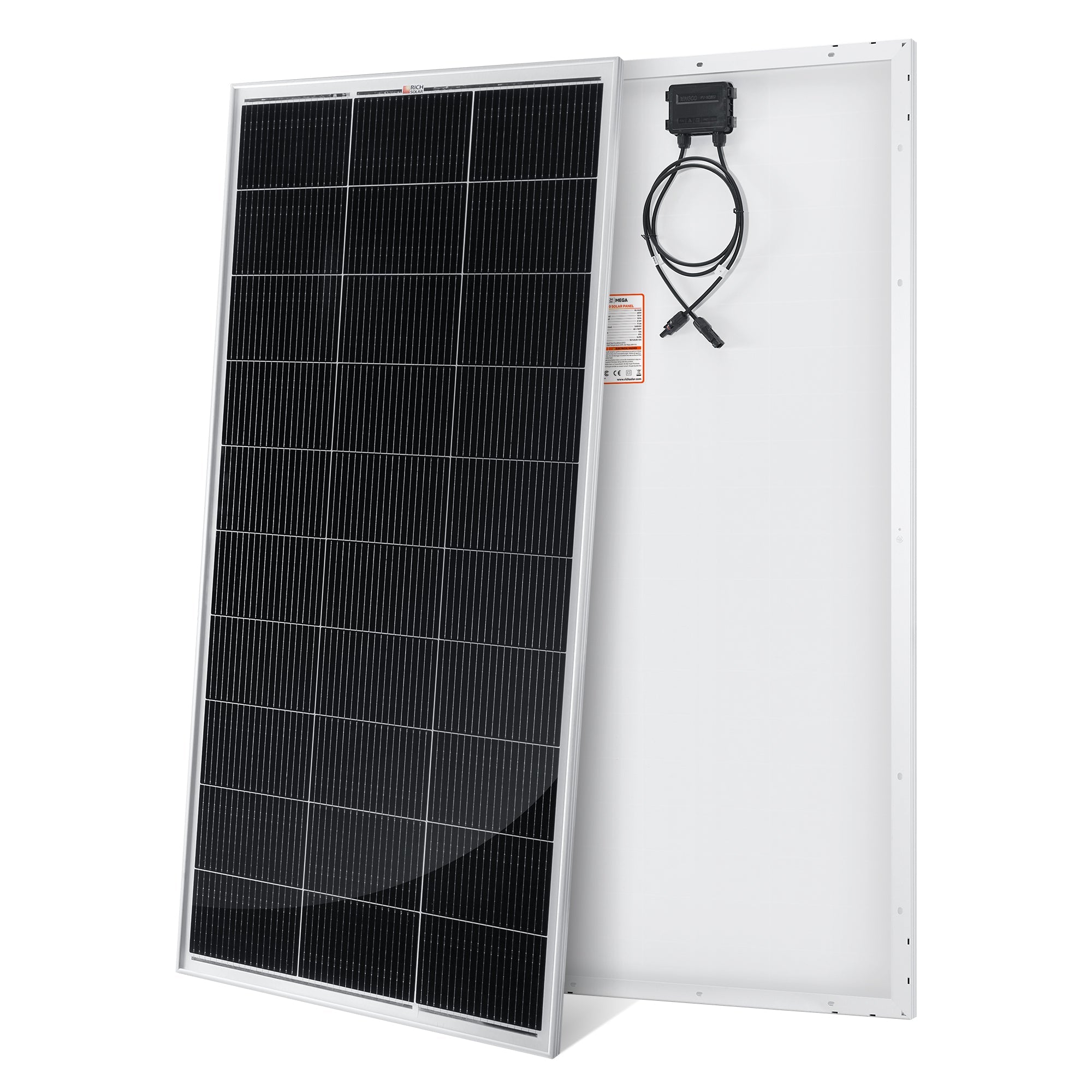

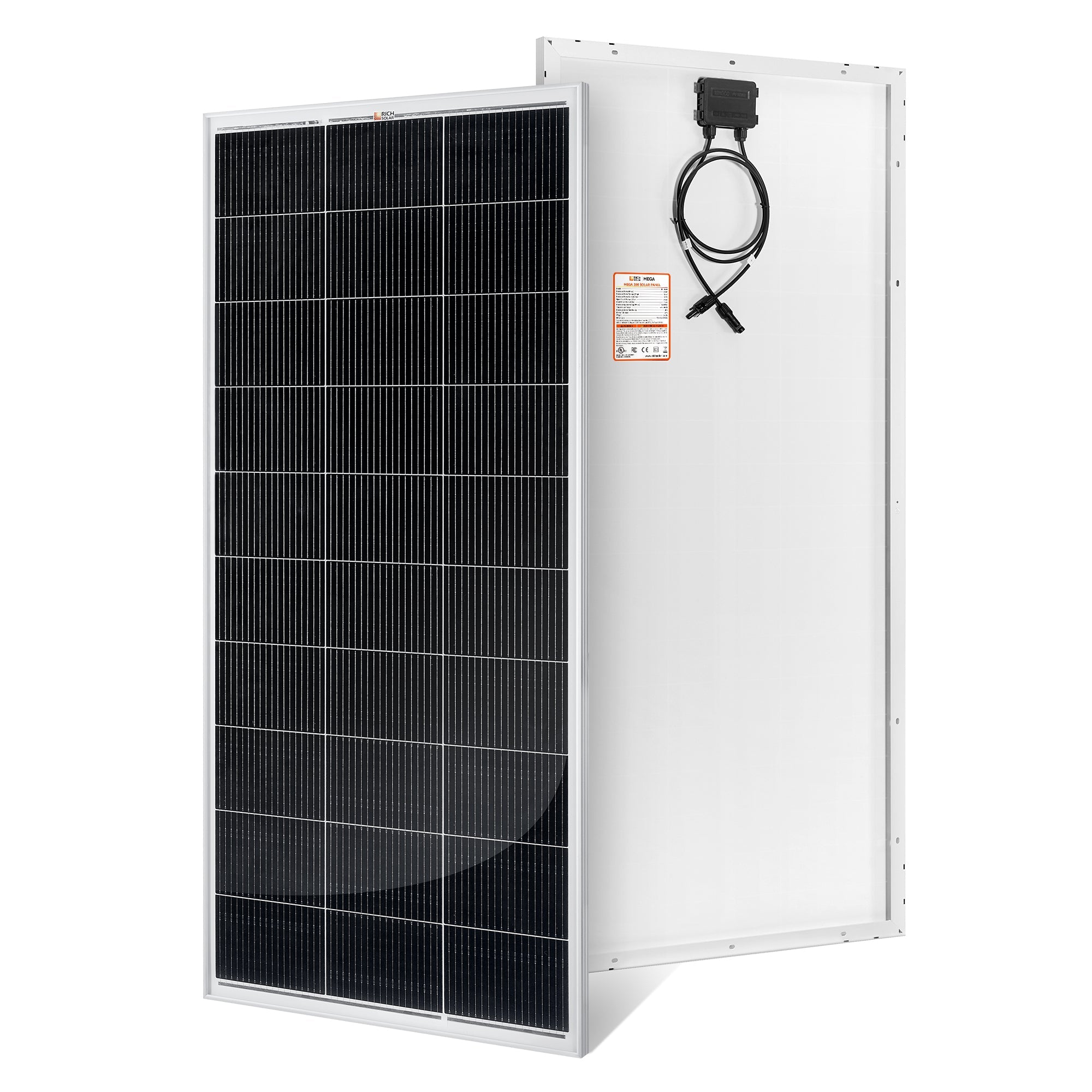

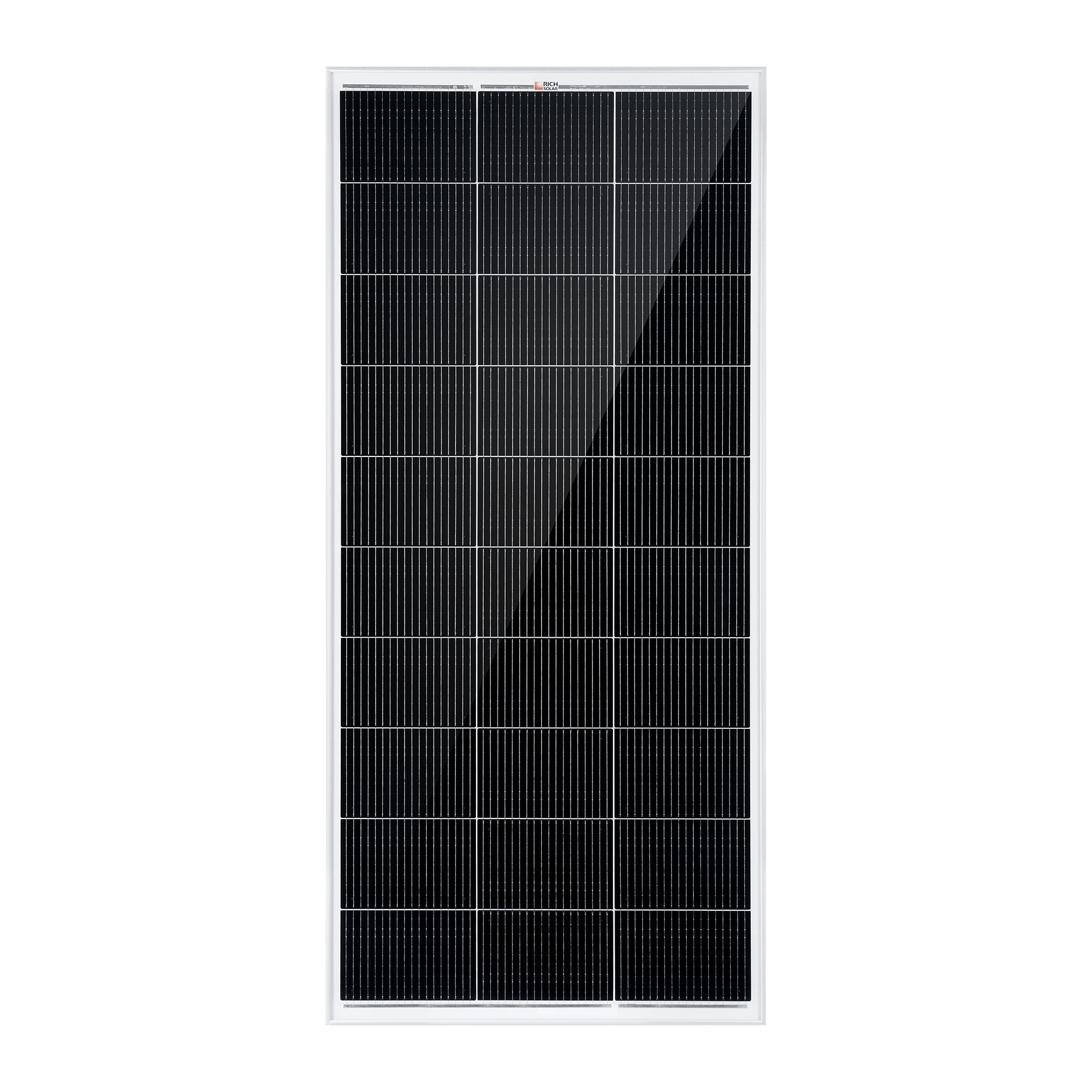

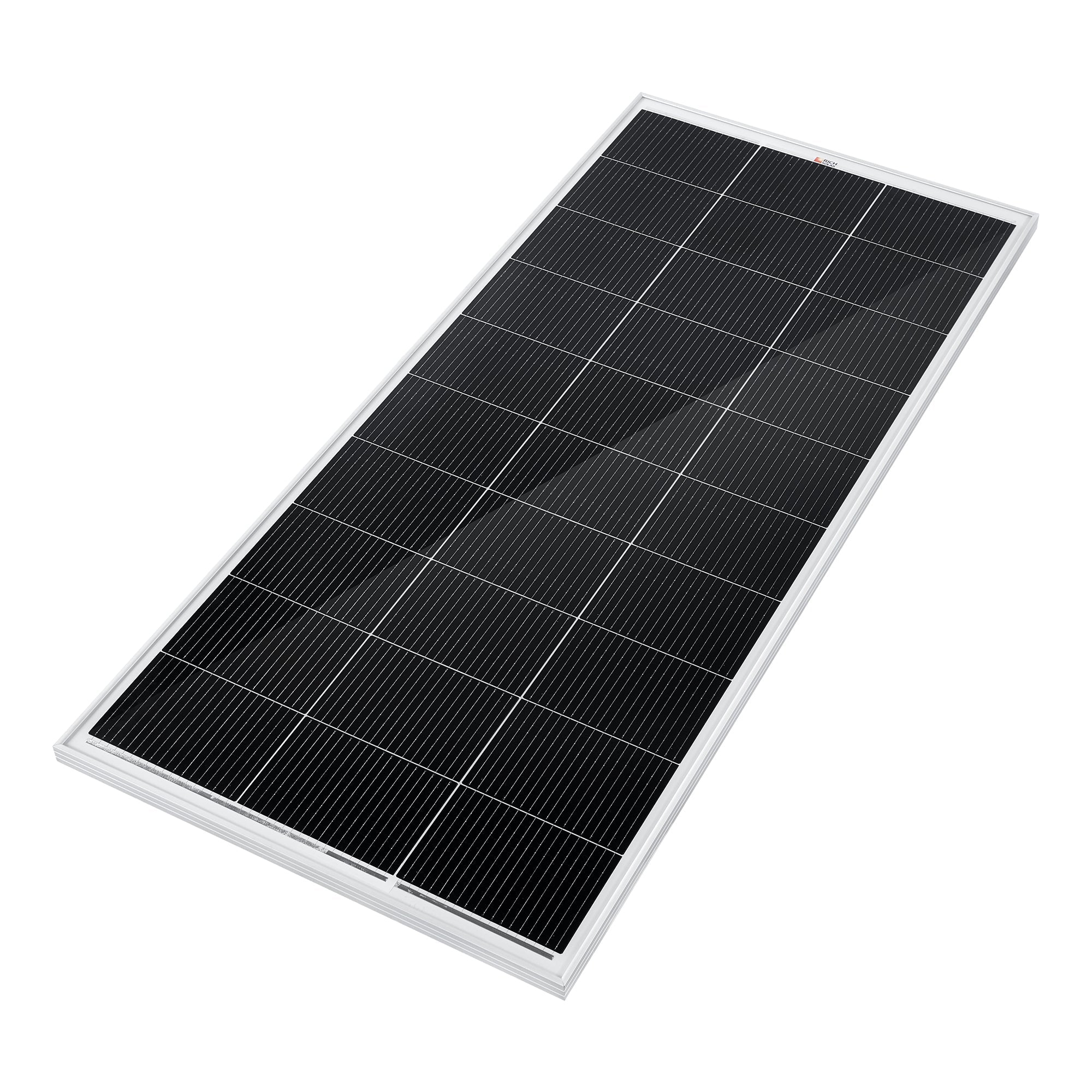

Rich Solar MEGA 200W 12V Solar Panel

The Rich Solar MEGA 200 Watt 12 Volt Monocrystalline Solar Panel (SKU: RS-M200) is a premium, high-efficiency power solution engineered for off-grid applications. Built with advanced 16BB (16 Busbar) technology and Grade A+ monocrystalline silicon cells, this compact solar panel delivers an exceptional 24.8% cell efficiency, optimizing power generation even in partial shade or low-light conditions.

Whether you are retrofitting an RV, setting up a remote cabin, rigging a marine vessel, or expanding a backup DIY solar power grid in your garage workshop, the MEGA 200 provides heavy-duty resilience and reliable output.

Product Video Feature & Demonstrations

Core Performance Features

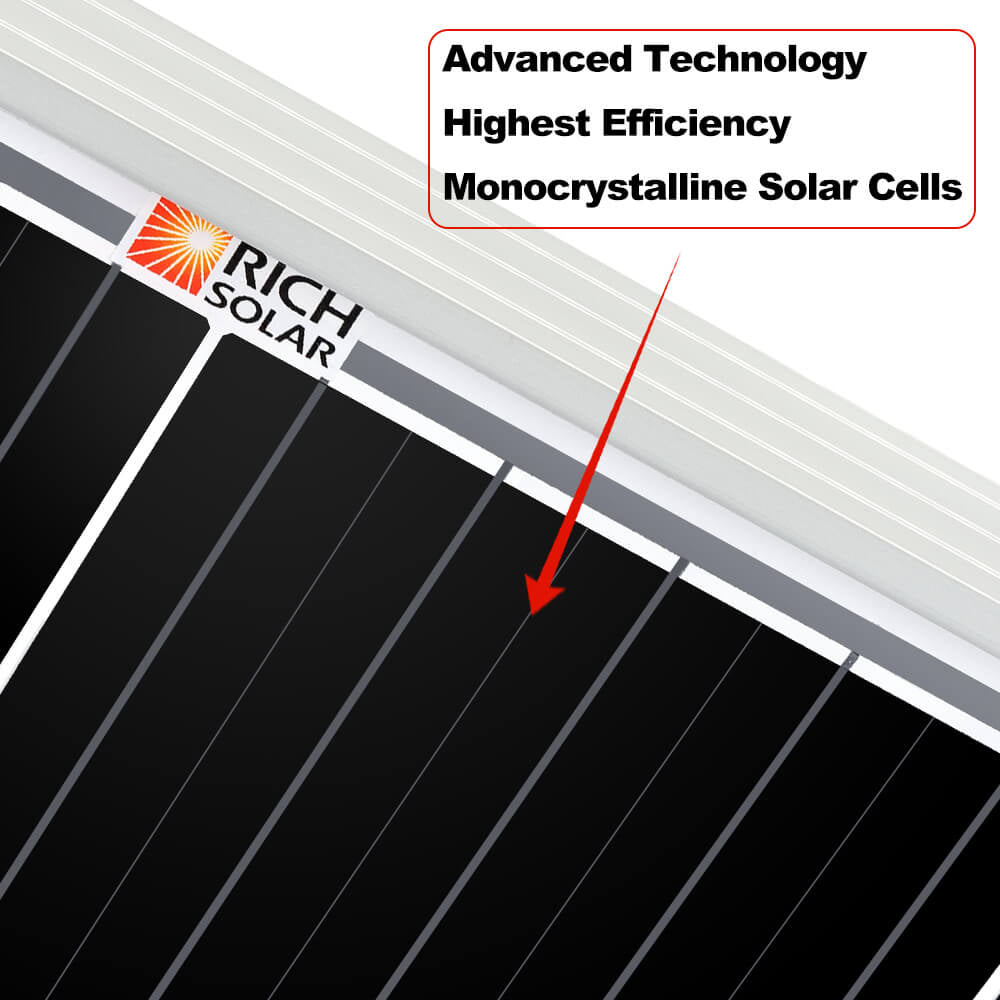

1. Advanced 16BB Busbar Technology

Unlike standard panels that use fewer busbars, the MEGA 200 utilizes a 16-busbar design. This dense grid reduces internal electrical resistance, minimizes micro-cracking over time, and accelerates electron transmission. The result is a more durable solar cell that maximizes total daily watt-hour output.

2. Built for Extreme Weather Resilience

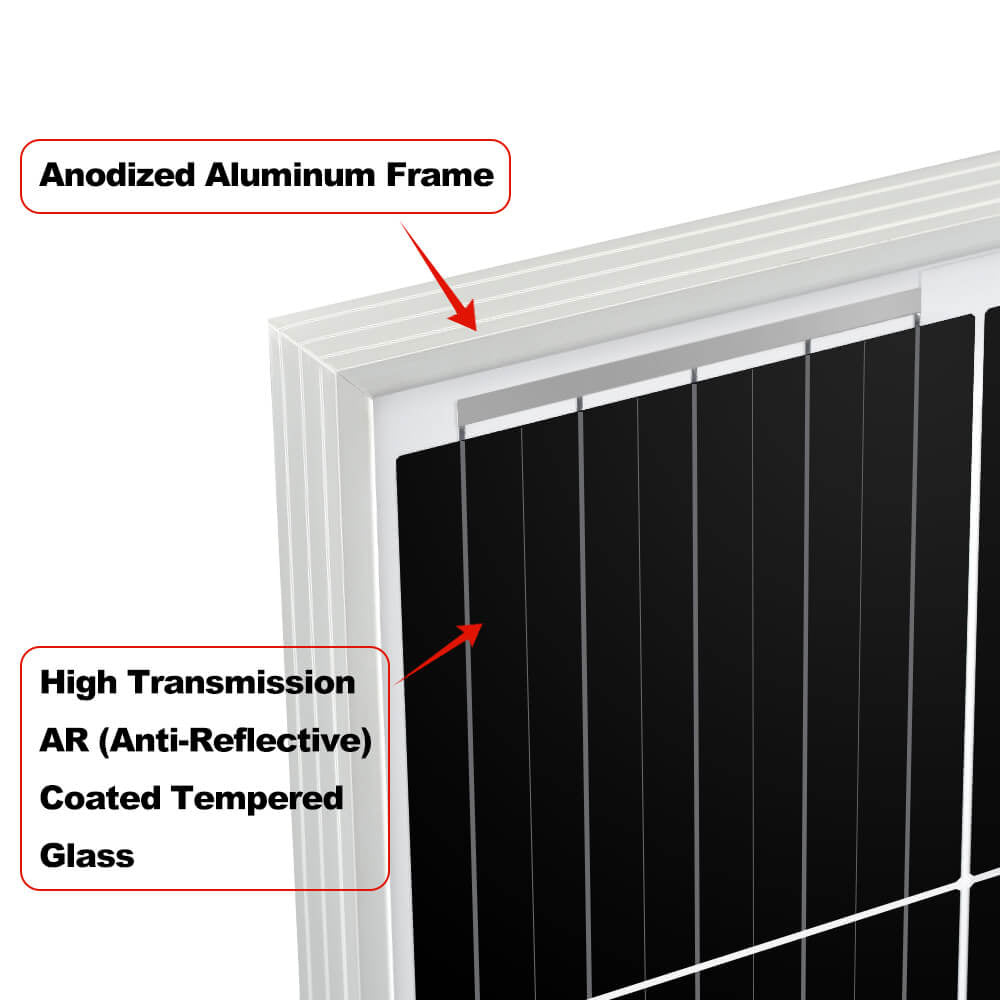

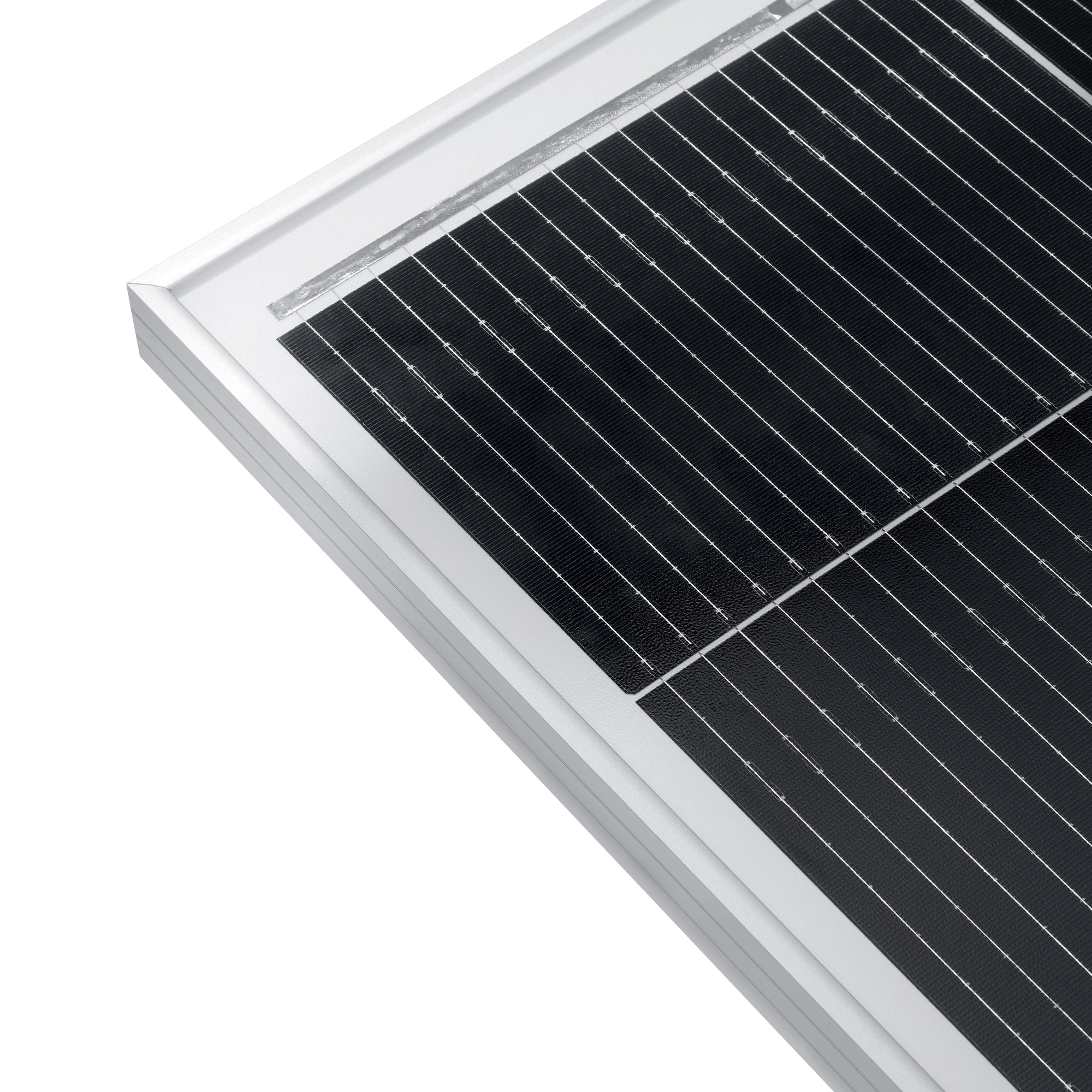

Constructed from impact-resistant tempered glass and a rugged, corrosion-resistant anodized aluminum frame, this panel is engineered to withstand severe environments:

• Wind Load Resistance: Up to 2,400 Pa.
• Snow Load Capacity: Up to 5,400 Pa.
• Hail Impact Protection: Survives hail up to 35 mm travelling at 97 km/h.

3. Smart Shade Management & Protection

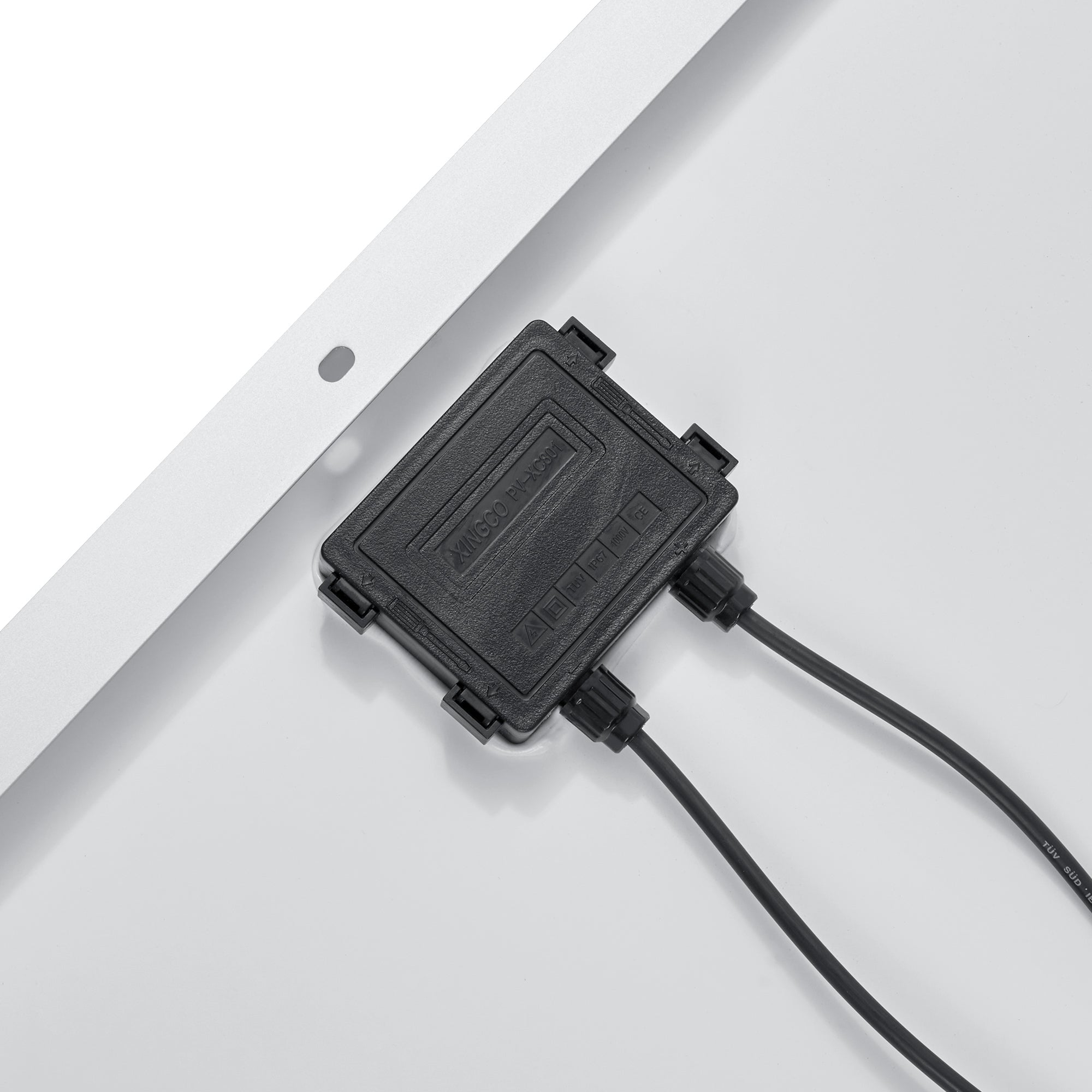

Equipped with an IP67-rated waterproof junction box, the panel includes integrated bypass diodes. If a section of the panel is covered by tree limbs, dirt, or clouds, the bypass diodes keep the rest of the cell string running efficiently, protecting against hot-spot heating and dramatic power drops.

4. Plug-and-Play Universal Integration

The 12V nominal output makes it natively compatible with both Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT) charge controllers. It scales effortlessly into larger arrays by connecting multiple panels in series or parallel configurations for 24V or 48V off-grid battery banks.

Installation & Setup Guide

1. Connect Charge Controller to Battery: Always connect your charge controller to the 12V battery bank first. This allows the controller to boot up, auto-detect the battery voltage, and safely regulate incoming solar power.
2. Mount the Solar Panel: Secure the MEGA 200 panel to your vehicle roof, ground rack, or cabin using Z-brackets. Position the panel at a 30 to 45-degree angle facing true South (in the Northern Hemisphere) for optimal year-round exposure. Avoid areas prone to structural shading.
3. Wire the Panel to the Controller: Plug the 35-inch pre-attached solar cables into your extension cables, routing them directly into the PV inputs of the charge controller. The built-in IP67 connections click together securely to seal out dust and moisture.
4. Verify System Operations: Check the display panel or LED indicators on your charge controller to verify that the incoming PV voltage matches the panel specs (~18.4V Vmp under sun) and that current is actively flowing to your battery storage.

Frequently Asked Questions

What makes a 16BB solar panel better than older models?
A 16BB (16 Busbar) solar panel uses sixteen thin strips of metal to collect and carry electricity away from the cells, whereas older panels use fewer, thicker bars. More busbars shorten the distance electrons must travel, which reduces electrical resistance, boosts overall solar cell efficiency to 24.8%, and minimizes power loss caused by microscopic fractures over years of use.

Can the Rich Solar MEGA 200W panel charge a 12V battery directly?
No, you should never connect a solar panel directly to a battery without a charge controller. The MEGA 200 outputs an open-circuit voltage of 21.8V, which can overcharge, overheat, or damage a standard 12V battery. Always route the solar panel through a PWM or MPPT charge controller to regulate the voltage safely.

Do I need an inverter to use this solar panel on my RV or boat?
You only need an inverter if you plan to power standard household appliances that run on 110V/120V Alternating Current (AC), such as a microwave, TV, or laptop charger. If you only want to run 12V Direct Current (DC) appliances—like LED cabin lights, USB ports, or 12V portable fridges—the panel can charge your battery, and you can pull power directly from the battery bank without an inverter.

Will this solar panel generate electricity during cloudy or snowy winter conditions?
Yes, solar panels generate power anywhere sunlight is present, and colder winter temperatures actually improve solar cell conductivity and performance. While heavy clouds reduce total output efficiency, light will still penetrate. However, if snow accumulates and covers the panel completely, it will stop producing power entirely. Keep the surface clear of snow, mud, and leaves to maintain output.

Does the system protect my batteries from draining at night?
Yes, provided you are using a standard solar charge controller. Modern controllers feature automatic reverse-current protection, which acts as a check-valve to stop electricity from flowing backward from your batteries into the solar panel during the night.

How many 200W panels do I need for my system?
That depends on your daily power use and sun hours, but as a rule of thumb, one 200W panel produces roughly 0.8 kWh per day of full sun (about 200 watts x 4-5 peak sun hours). Add up your daily watt-hour usage and divide by that figure to estimate how many panels you'll need, then size your charge controller and battery bank to match.

Can I wire multiple 200W panels together for more power?

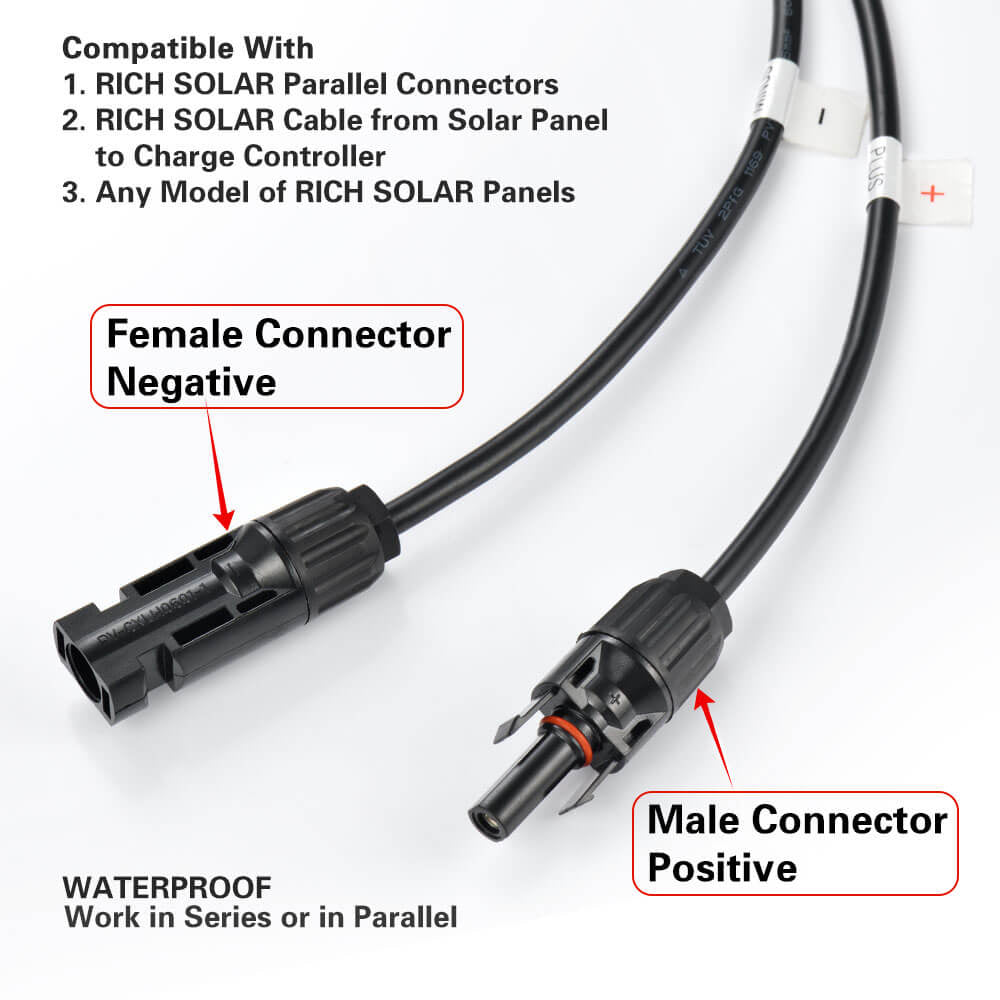

Yes. This panel uses standard MC4 connectors, so you can wire additional 200W panels (or other Rich Solar panels of the same voltage) in series or parallel to scale up your array, as long as your charge controller's input voltage and amperage ratings can handle the combined output.

Will this panel work with my existing solar charge controller and battery bank?
Yes. This is a 12V panel and will work with any properly sized 12V MPPT or PWM charge controller and battery bank, including AGM, gel, sealed lead-acid, or LiFePO4 batteries. Match the controller's rated input voltage and current to the panel's specs listed above before wiring it in.

Does this panel still produce power in cloudy weather or partial shade?
Yes, at reduced output. Monocrystalline cells hold up better than most in diffuse light, and built-in bypass diodes mean a shaded section does not drag the whole panel down — the unshaded cells keep working. Expect a fraction of rated output on an overcast day, not zero.

Does this come with brackets, or do I buy those separately?
Usually separately. What is built in is the pre-drilled mounting points on the frame; the bracket style depends on where it is going — Z-brackets for a flat roof, rails for a rack, tilt legs for a ground mount. Confirm against the specifications above before ordering.
