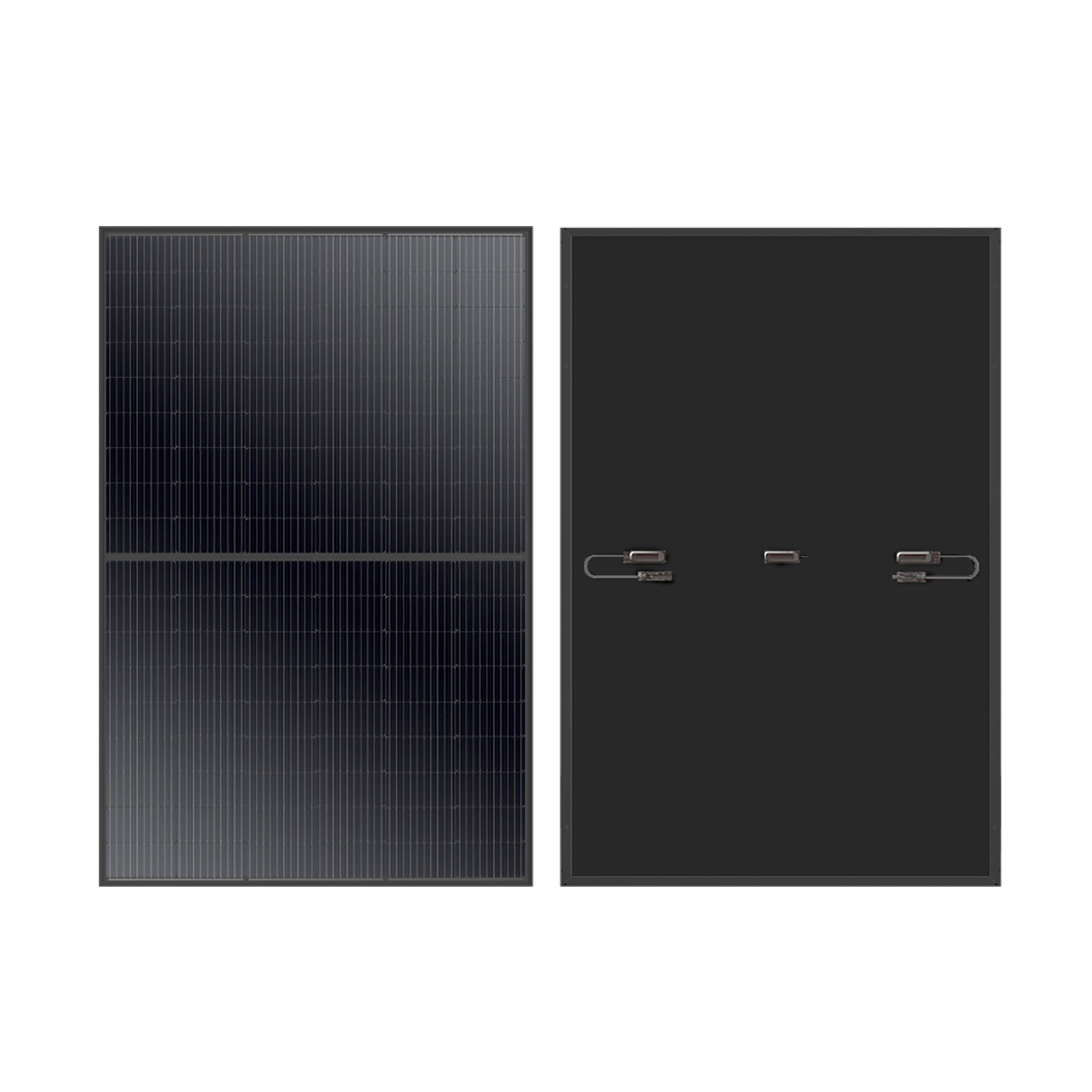

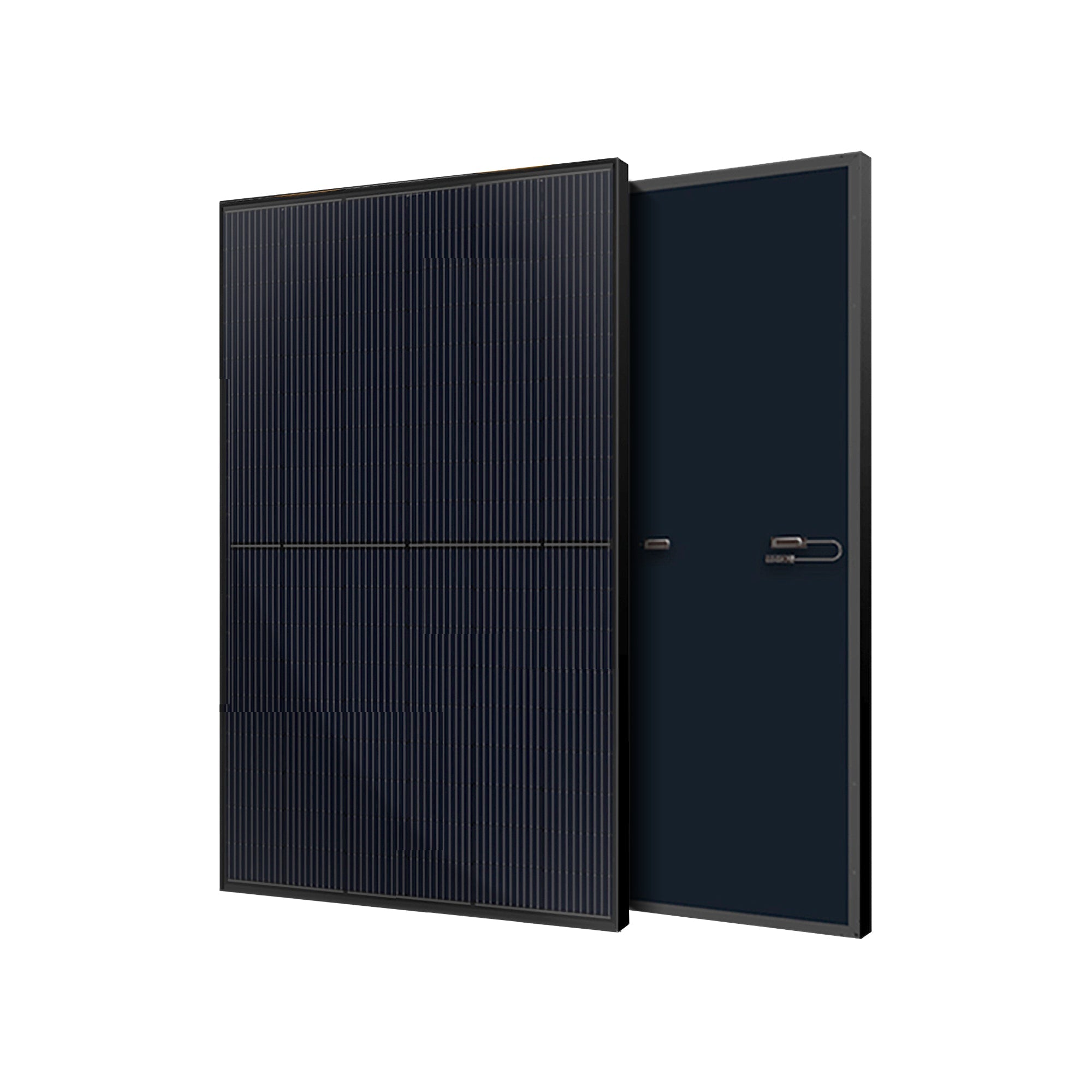

RICH SOLAR MEGA 400 Watt 24 Volt Monocrystalline Solar Panel
Rich Solar
- Regular price
- Price: $2,159.99
- Regular price
- List Price:
- Sale price
- Price: $2,159.99
- Unit price
- per
Couldn't load pickup availability
Share
PRODUCT DESCRIPTION
Upgrade your backup energy systems, garage workshops, or off-grid power grids with the RICH SOLAR MEGA 400 Watt 24 Volt Solar Panel. Specifically engineered for premium residential, commercial, and agricultural applications, this high-efficiency monocrystalline solar panel delivers elite power generation even in limited-space setups. Utilizing cutting-edge 10-busbar and Mono PERC technology, the MEGA 400 extracts maximum energy out of every square inch of sunlight.
Key Features & Performance Advantages
- Advanced 10-Busbar Cell Architecture: Reduces internal resistance and cell degradation while dramatically improving current collection across the panel surface.
- Premium Mono PERC Technology: Features a passivated emitter and rear cell layer to reflect light back through the cell, providing excellent low-light performance on cloudy days, early mornings, and late evenings.
- Built for Tough Climates: Outfitted with an anti-reflective (AR) coated tempered glass surface and a lightweight, heavy-duty anodized aluminum frame designed to withstand high winds and heavy snow loads.
- Streamlined Installation: Features pre-drilled holes perfect for standard Z-brackets, ground mounts, pole mounts, and tilt kits. Plug-and-play junction boxes with industry-standard quick-connect cables make series or parallel wiring quick and safe.
Technical Specifications
| Specification Parameter | Value / Detail |
|---|---|
| Maximum Power (Pmax) | 400 Watts |
| Maximum Power Voltage (Vmp) | 31.0 Volts |
| Maximum Power Current (Imp) | 12.9 Amps |
| Open Circuit Voltage (Voc) | 37.1 Volts |
| Short Circuit Current (Isc) | 13.7 Amps |
| Dimensions | 67.8 x 44.7 x 1.2 inches |
| Weight | 45.2 lbs |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 25A |
| Warranty Protection | 25-Year Power Output Warranty / 10-Year Workmanship Warranty |
Frequently Asked Questions
What are the physical dimensions of the RICH SOLAR 400W solar panel?
The latest model of the RICH SOLAR MEGA 400W solar panel measures 67.8 inches long by 44.7 inches wide by 1.2 inches thick (67.8 x 44.7 x 1.2 in) and weighs exactly 45.2 lbs.
Can this solar panel be used for off-grid configurations?
Yes. While it is built powerful enough for residential grid-tie installations, its 24V configuration makes it excellent for high-end off-grid solar systems, agricultural applications, mobile platforms, and remote garage or workshop power setups.
What type of inverters are compatible with the MEGA 400?
The RICH SOLAR MEGA 400W panel is fully compatible with both standard grid-tied inverters and off-grid battery-inverter systems. Ensure your charge controller or inverter can handle an open circuit voltage (Voc) of 37.1V per panel.
How many 400W panels do I need for my system?
That depends on your daily power use and sun hours, but as a rule of thumb, one 400W panel produces roughly 1.6 kWh per day of full sun (about 400 watts x 4-5 peak sun hours). Add up your daily watt-hour usage and divide by that figure to estimate how many panels you'll need, then size your charge controller and battery bank to match.
Can I wire multiple 400W panels together for more power?
Yes. This panel uses standard MC4 connectors, so you can wire additional 400W panels (or other Rich Solar panels of the same voltage) in series or parallel to scale up your array, as long as your charge controller's input voltage and amperage ratings can handle the combined output.
Will this panel work with my existing solar charge controller and battery bank?
Yes. This is a 12V/24V panel and will work with any properly sized 12V/24V MPPT or PWM charge controller and battery bank, including AGM, gel, sealed lead-acid, or LiFePO4 batteries. Match the controller's rated input voltage and current to the panel's specs listed above before wiring it in.
Does this panel still produce power in cloudy weather or partial shade?
Yes, at reduced output. Monocrystalline cells hold up better than most in diffuse light, and built-in bypass diodes mean a shaded section does not drag the whole panel down — the unshaded cells keep working. Expect a fraction of rated output on an overcast day, not zero.
How is the panel actually fixed down?
Through pre-drilled holes in the aluminium frame, using whichever bracket suits the surface: Z-brackets, rails, tilt mounts or pole mounts. Those brackets are typically a separate purchase. Match the fixing to the roof material, and use sealant on any penetration.
Is this panel waterproof for outdoor, marine, or RV use?
Yes. It's built with a sealed, IP-rated waterproof junction box and weatherproof MC4 connectors (see the exact IP rating in the specifications above) and a corrosion-resistant aluminum frame, so it's rated for permanent outdoor, marine, and RV rooftop exposure.
What does the panel warranty actually cover?
Power output over 25 years, and manufacturing workmanship for 10. Output cover is a guarantee that the panel still produces above a stated percentage of its rating; workmanship covers defects such as frame or junction-box failure. Terms for this model are above.
