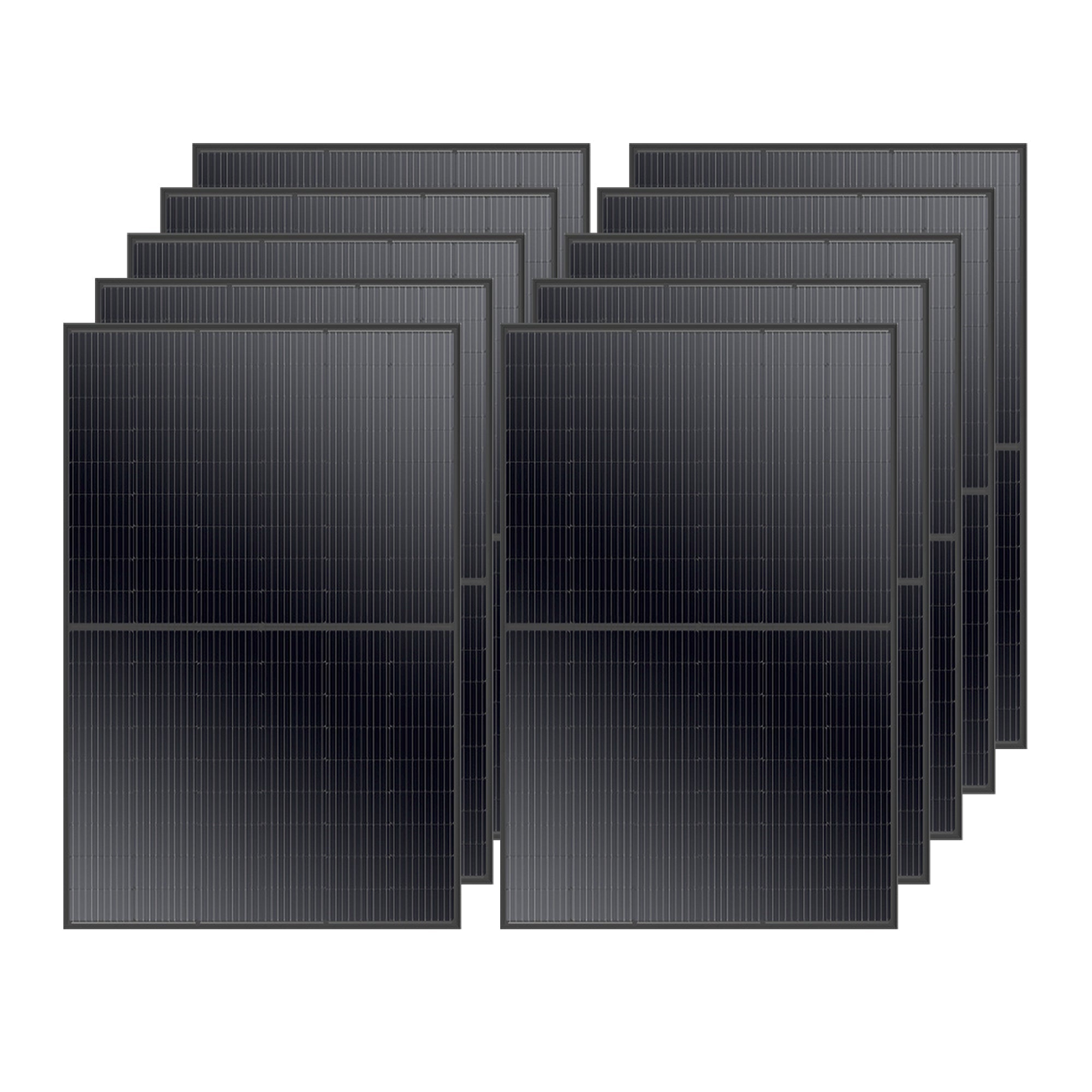

Rich Solar MEGA 410W 24V Mono PERC Solar Panel
Rich Solar
- Regular price
- Price: $2,239.99
- Regular price
- List Price:
- Sale price
- Price: $2,239.99
- Unit price
- per
Couldn't load pickup availability
Share
PRODUCT DESCRIPTION

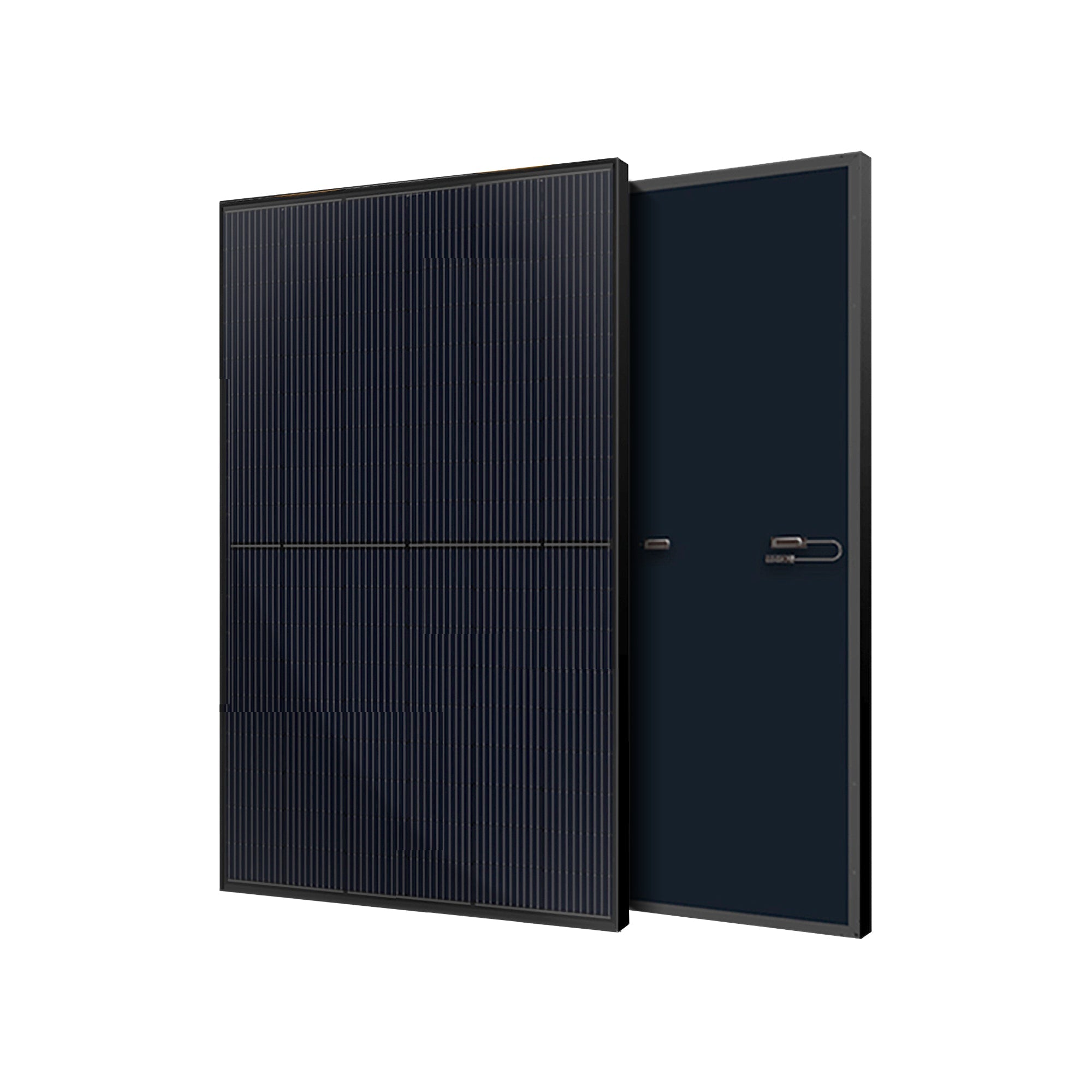

Maximize your power generation while minimizing footprint and installation costs with the Rich Solar MEGA 410 (410 Watt, 24 Volt) Solar Panel. Built with cutting-edge Mono PERC technology and a high-efficiency 10-busbar configuration, this premium solar panel delivers exceptional performance for residential, off-grid, agricultural, and commercial applications. Engineered to thrive in challenging environments, it features an anti-reflective tempered glass front and a durable anodized aluminum frame.
Key Specifications
| Technical Metric | Value / Specification |
|---|---|
| Maximum Power (Pmax) | 410W |
| Nominal Voltage | 24V |
| Maximum Power Voltage (Vmp) | 31.3V |
| Maximum Power Current (Imp) | 13.1A |
| Open Circuit Voltage (Voc) | 37.5V |
| Short Circuit Current (Isc) | 13.8A |
| Dimensions | 67.8 x 44.7 x 1.2 inches |
| Weight | 45.2 lbs |
Premium Features & Engineering
- Advanced 10-Busbar & Mono PERC Cell Technology: Offers improved current transmission, lower internal resistance loss, and superior panel efficiency.
- Outstanding Low-Light Performance: Specially engineered to optimize solar output during overcast days, early mornings, and late evenings.
- All-Weather Heavy Duty Construction: Made with high-transmission, anti-reflective (AR) coated tempered glass and a lightweight anodized aluminum frame to withstand heavy snow and high wind loads.
- Plug-and-Play Setup: Comes equipped with an IP68-rated waterproof junction box, built-in bypass diodes, and 4-foot industry-standard quick-connect cables for easy series or parallel wiring.
Versatile Installation Options

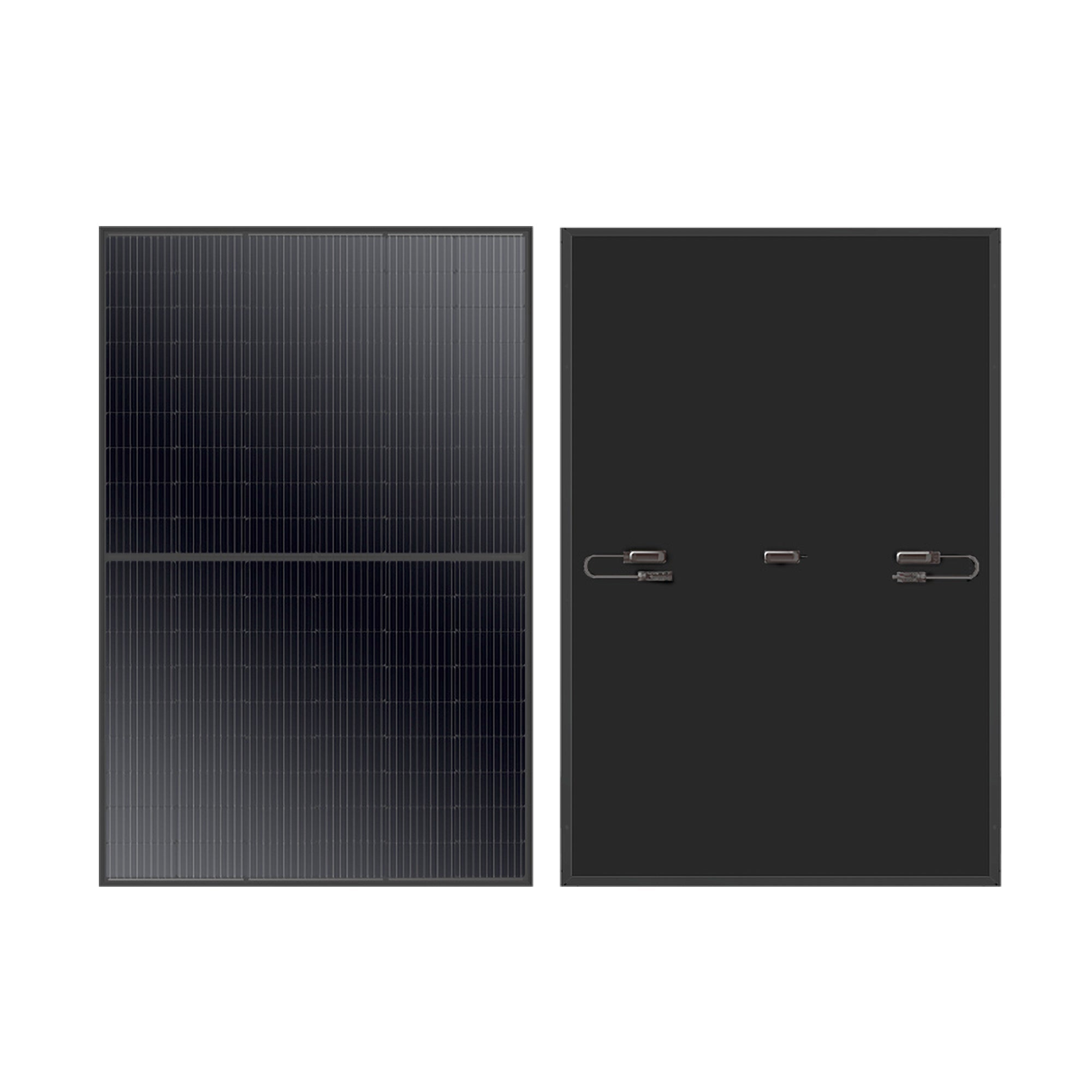

The Rich Solar 410W 24V panel features pre-drilled holes on the back frame, ensuring full compatibility with standard mounting solutions:
- Z-brackets and pole mounts
- Tilt mounts and ground mount arrays
- Seamless integration with both on-grid and off-grid inverters
Manufacturer Warranty Protection
- 25-Year Limited Power Output Warranty
- 10-Year Workmanship Warranty
Frequently Asked Questions
What are the main benefits of a 10-busbar solar cell configuration?
A 10-busbar system shortens the distance current has to travel across the cell surface, decreasing internal resistance losses and increasing overall energy efficiency and longevity.
Can the Rich Solar MEGA 410 be used for off-grid mobile setups like RVs or cabins?
Yes. Its 24V nominal output and high-density Mono PERC cells make it highly effective for space-constrained, high-demand off-grid mobile and agricultural setups.
How many 410W panels do I need for my system?
That depends on your daily power use and sun hours, but as a rule of thumb, one 410W panel produces roughly 1.64 kWh per day of full sun (about 410 watts x 4-5 peak sun hours). Add up your daily watt-hour usage and divide by that figure to estimate how many panels you'll need, then size your charge controller and battery bank to match.
Can I wire multiple 410W panels together for more power?
Yes. This panel uses standard MC4 connectors, so you can wire additional 410W panels (or other Rich Solar panels of the same voltage) in series or parallel to scale up your array, as long as your charge controller's input voltage and amperage ratings can handle the combined output.
Will this panel work with my existing solar charge controller and battery bank?
Yes. This is a 24V panel and will work with any properly sized 24V MPPT or PWM charge controller and battery bank, including AGM, gel, sealed lead-acid, or LiFePO4 batteries. Match the controller's rated input voltage and current to the panel's specs listed above before wiring it in.
Does this panel still produce power in cloudy weather or partial shade?
Yes, at reduced output. Monocrystalline cells hold up better than most in diffuse light, and built-in bypass diodes mean a shaded section does not drag the whole panel down — the unshaded cells keep working. Expect a fraction of rated output on an overcast day, not zero.
What mounting hardware do I need, and is it included?
The aluminium frame has pre-drilled corner holes suited to roof, ground, pole or Z-bracket mounting. Brackets and fixings are usually sold separately unless the listing says otherwise, so check the product images and specifications above for exactly what ships with this SKU.
Is this panel waterproof for outdoor, marine, or RV use?
Yes. It's built with a sealed, IP-rated waterproof junction box and weatherproof MC4 connectors (see the exact IP rating in the specifications above) and a corrosion-resistant aluminum frame, so it's rated for permanent outdoor, marine, and RV rooftop exposure.
What does the panel warranty actually cover?
Power output over 25 years, and manufacturing workmanship for 10. Output cover is a guarantee that the panel still produces above a stated percentage of its rating; workmanship covers defects such as frame or junction-box failure. Terms for this model are above.
How does the 410W model compare to other panels in the Rich Solar MEGA lineup?
The MEGA lineup spans roughly 50W to 410W. Smaller panels (50-100W) suit trickle-charging or small off-grid setups, mid-size panels (150-250W) suit RVs and cabins, and larger panels (300W+) suit home backup and off-grid ground-mount arrays. Choose based on your available mounting space and daily power needs.
