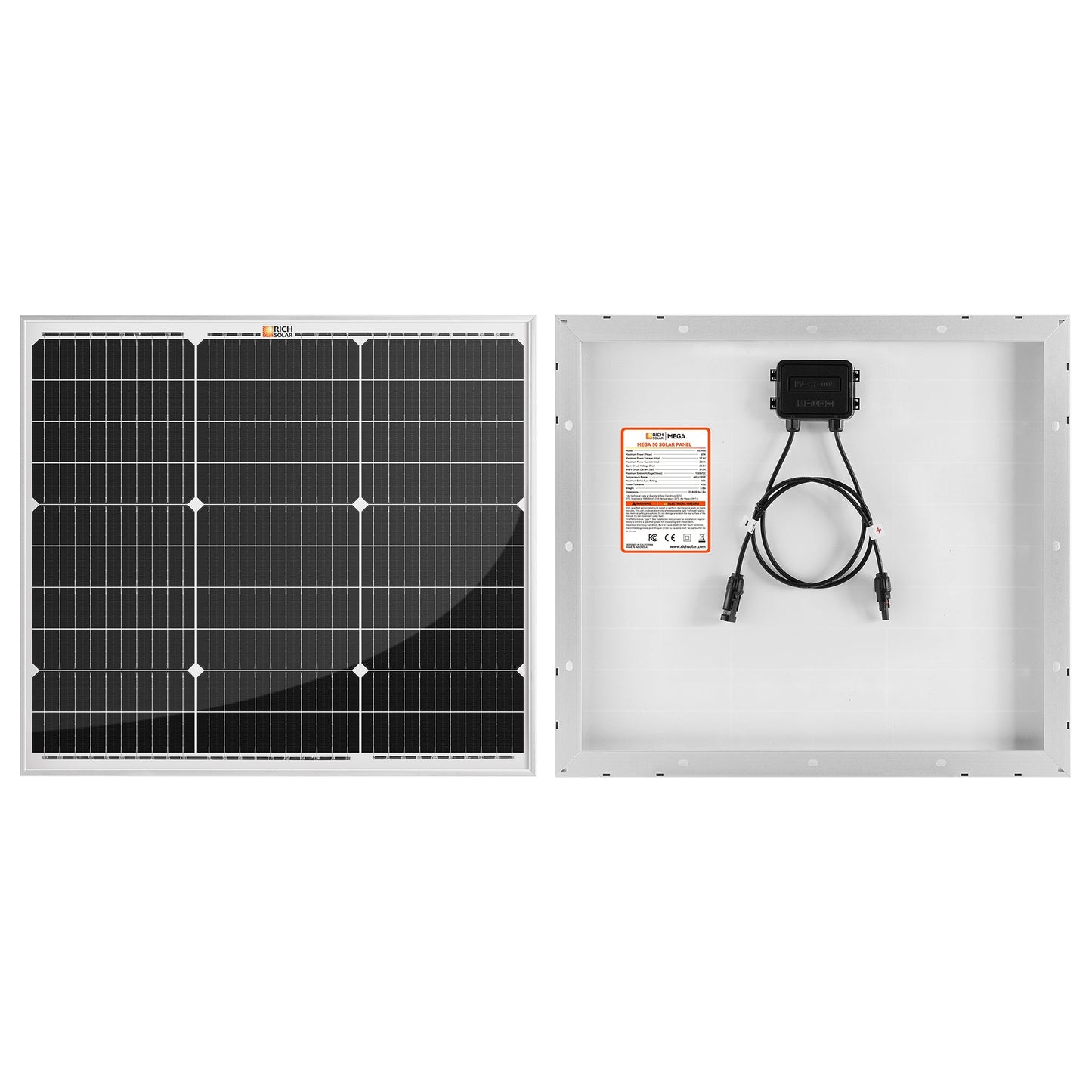

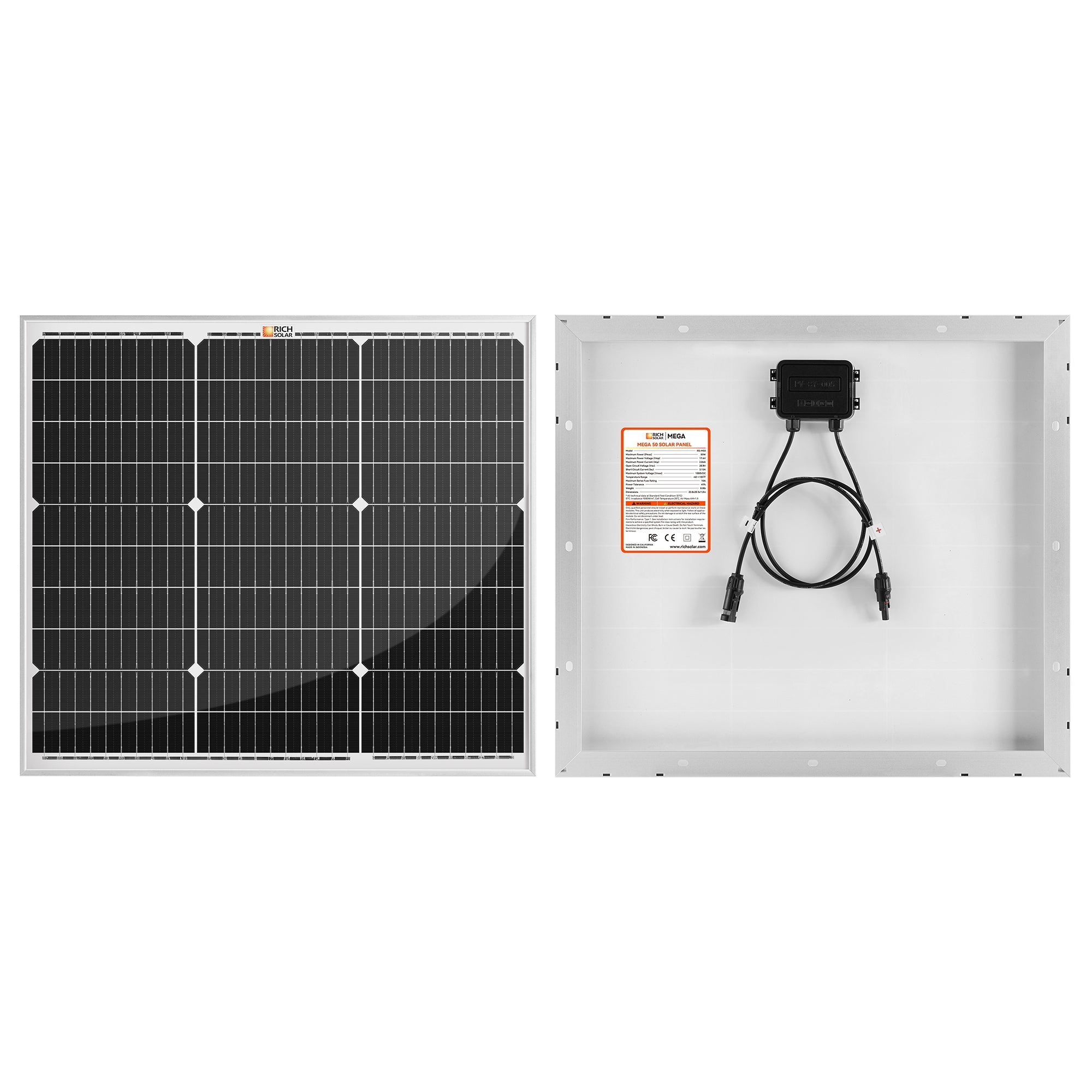

Rich Solar MEGA 50W 12V Monocrystalline Solar Panel (Onyx & Silver)

Empower your mobile and off-grid setups with the Rich Solar MEGA 50W 12V Monocrystalline Solar Panel. Available at Garage Tools Storage, this premium, high-efficiency solar panel comes in two distinctive variations: the sleek, low-profile MEGA 50 ONYX (Black Frame) and the traditional ultra-durable MEGA 50 (Silver Frame). Engineered explicitly for rugged marine environments, overlanding rigs, vans, trailers, and compact off-grid battery maintenance, these 12-volt modules offer outstanding energy generation in a compact footprint.

Whether you need to maintain a deep-cycle battery bank on a boat or extend your off-grid capabilities in an RV, the Rich Solar MEGA 50 series provides heavy-duty architecture, plug-and-play simplicity, and an industry-leading 25-year output warranty.

Key Features & Benefits

• High-Efficiency Monocrystalline Cells: Advanced solar cell technology ensures maximum power conversion, delivering consistent 0~+5W guaranteed positive power output even in space-constrained applications.

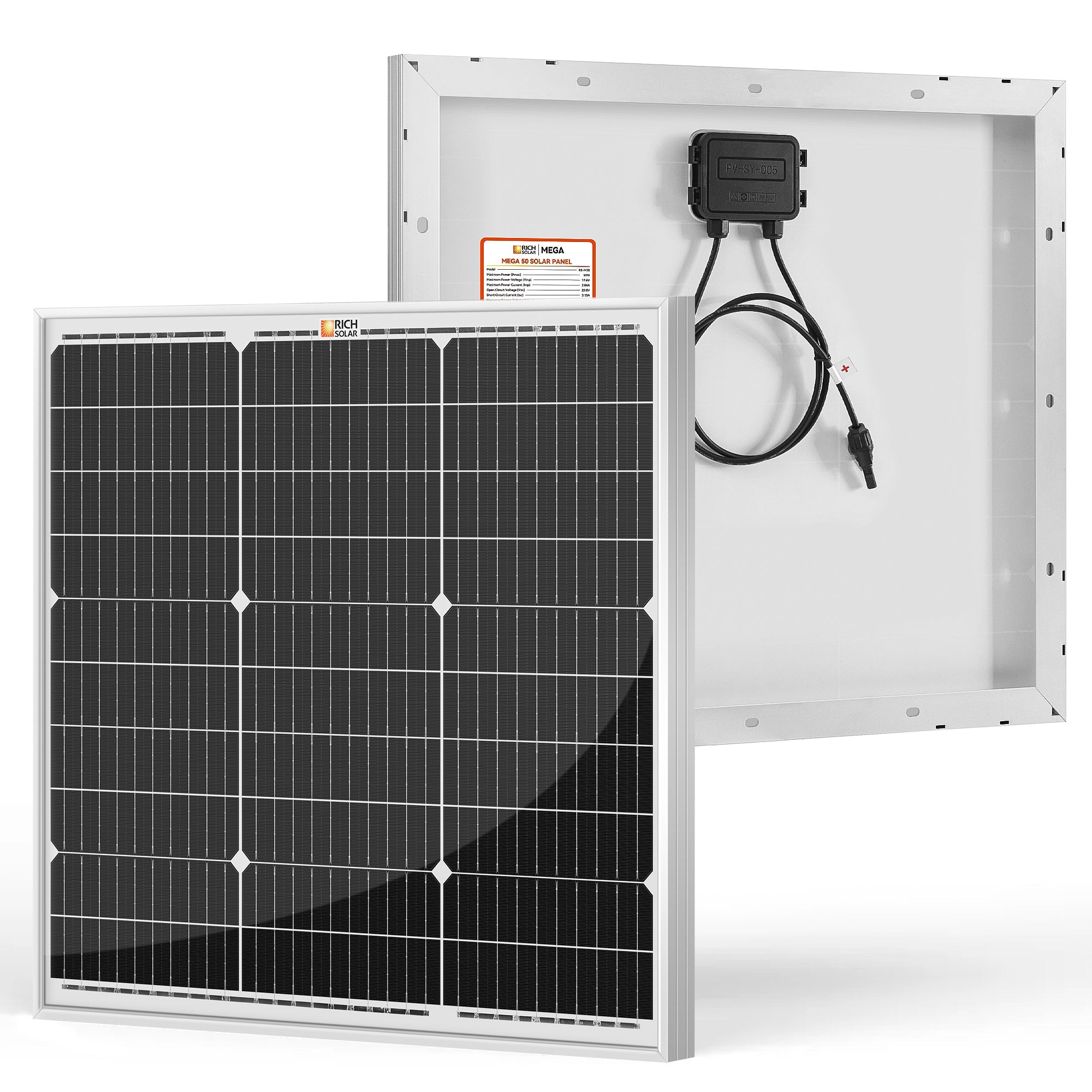

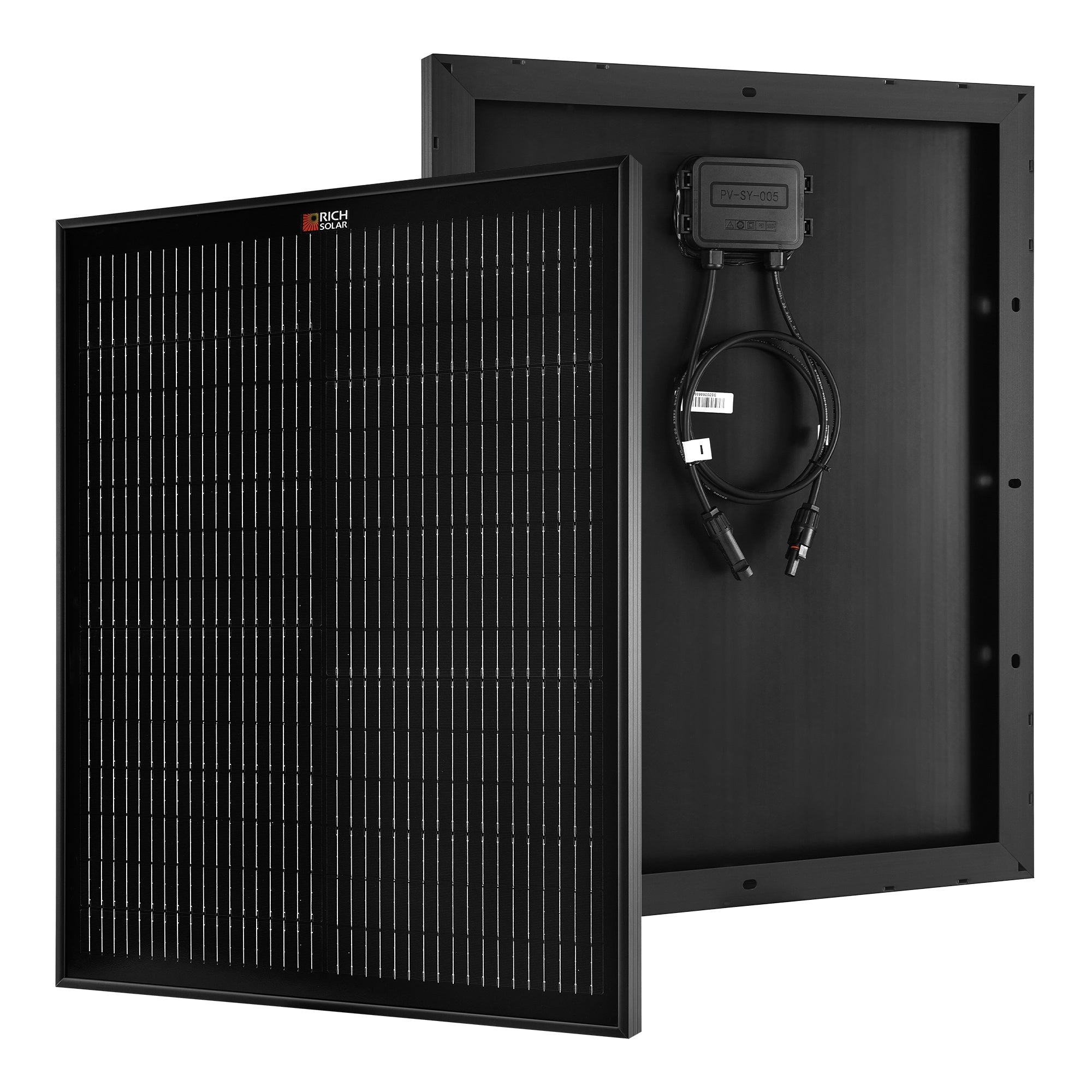

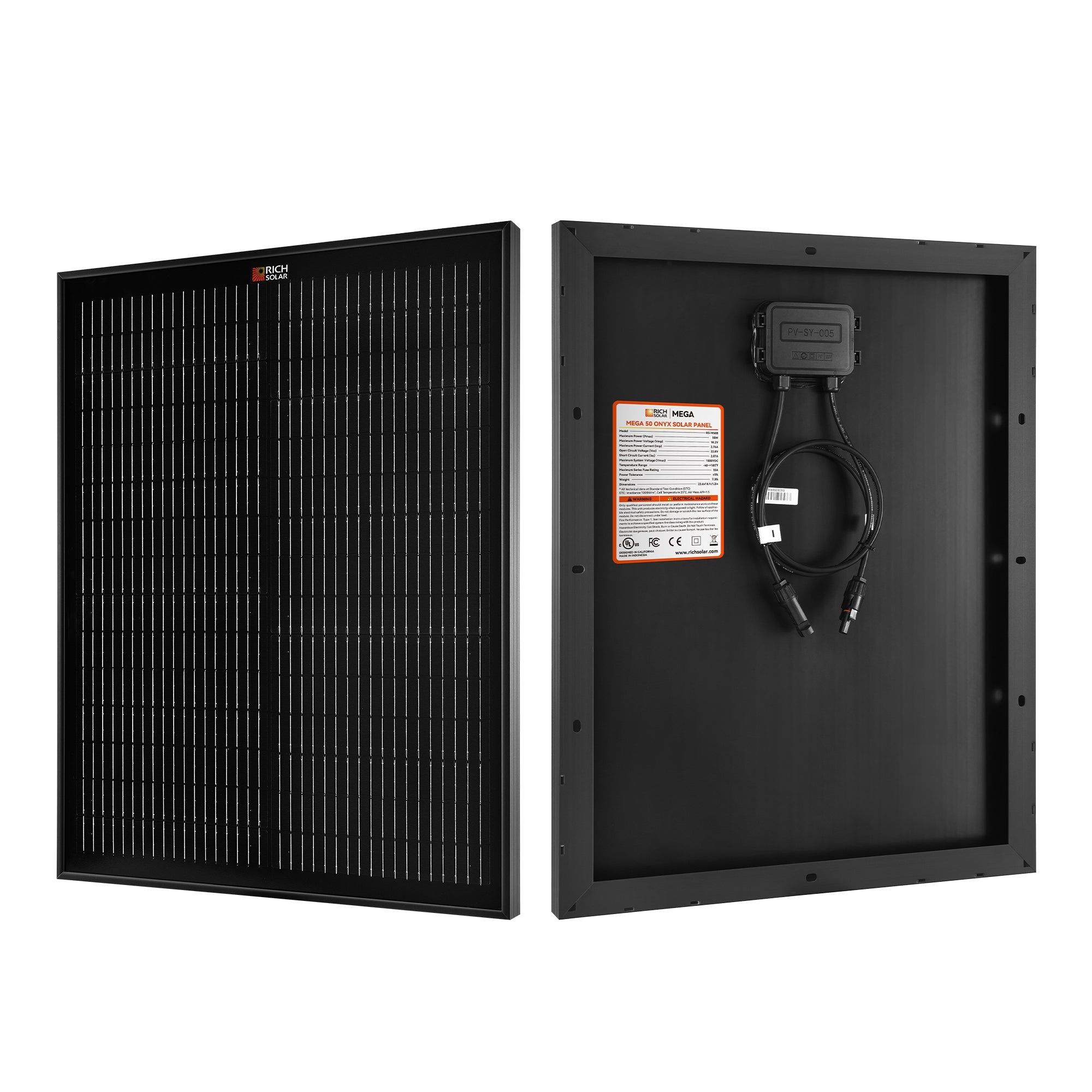

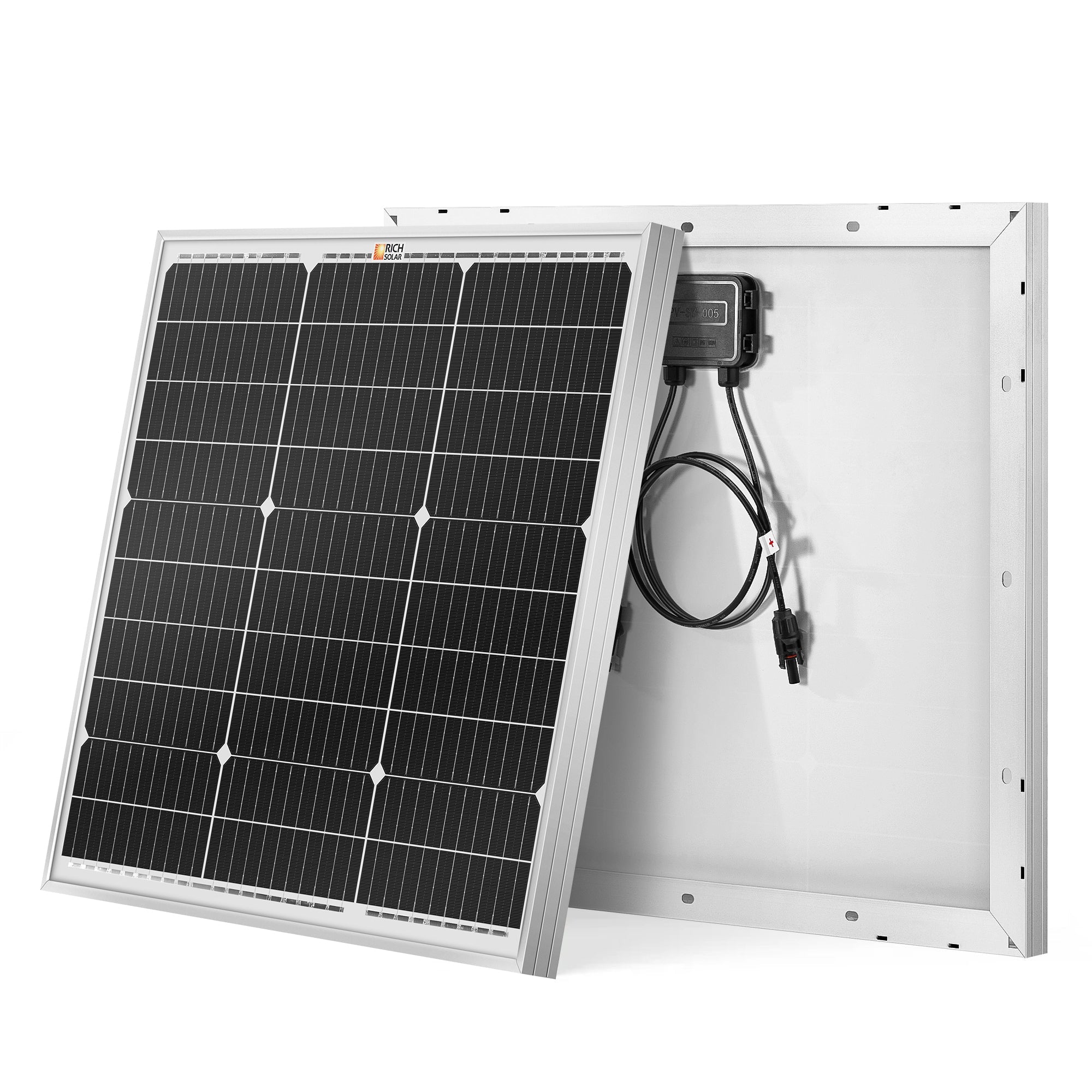

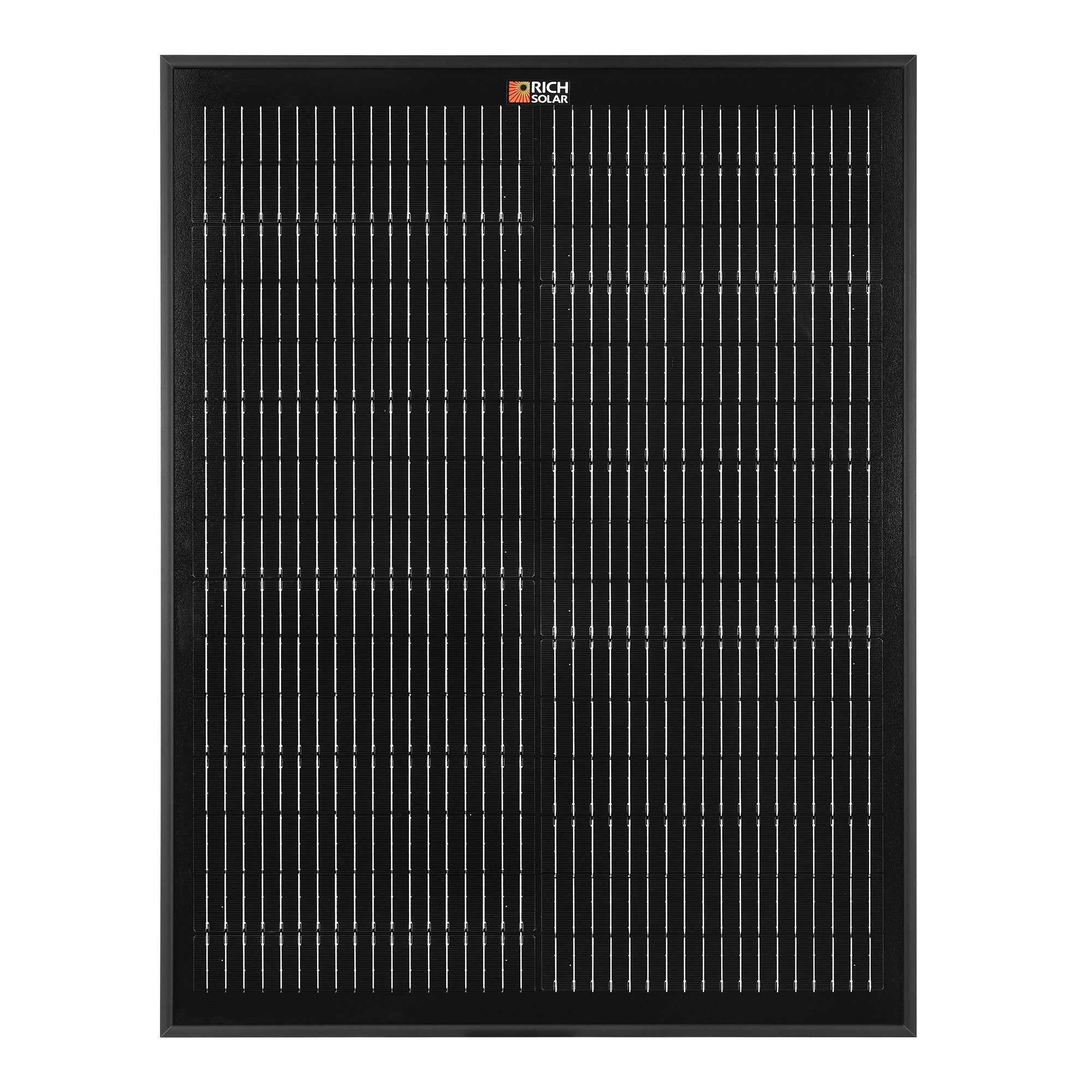

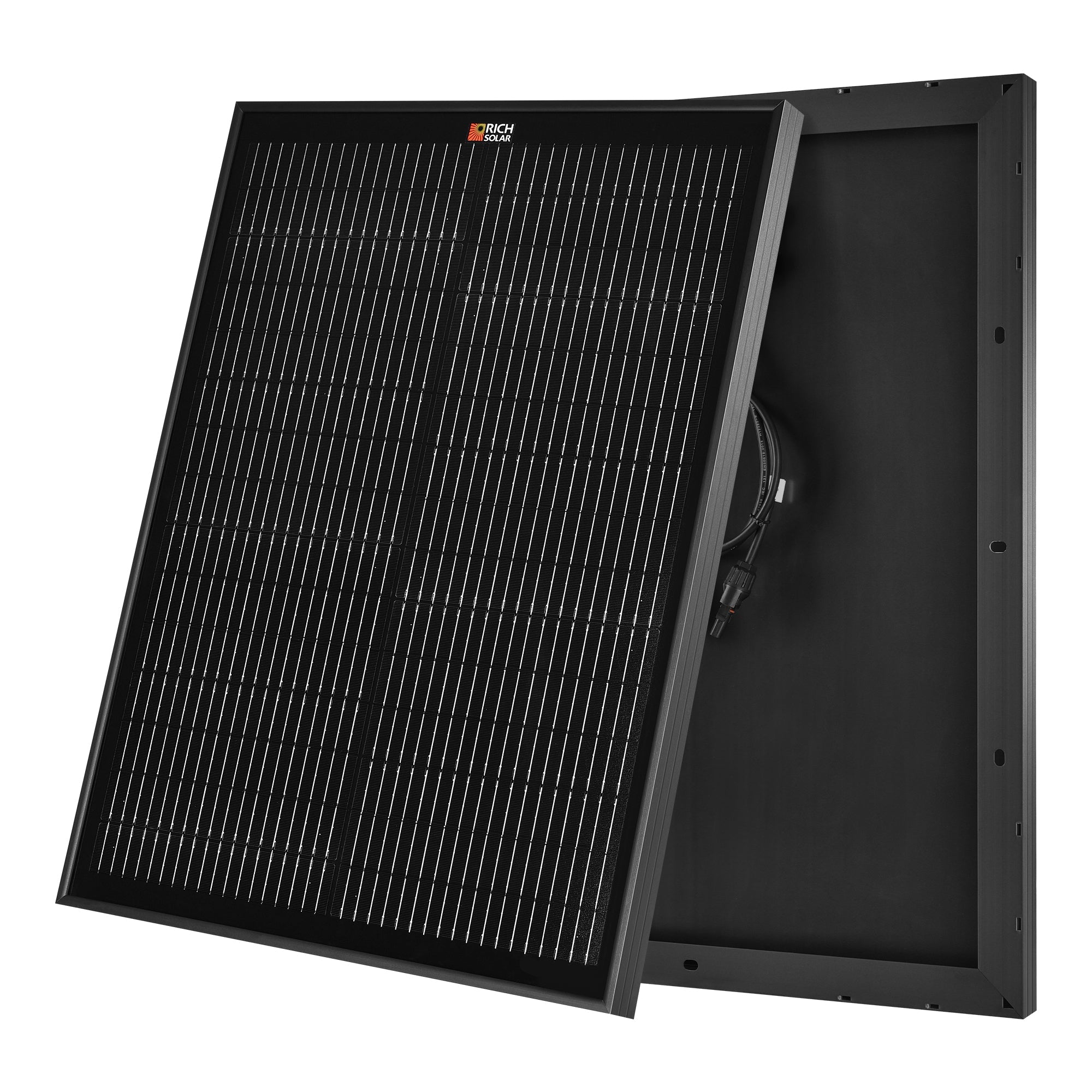

• Two Premium Styles Available: Choose between the stealthy, modern aesthetic of the ONYX Black (RS-M50B) or the timeless, rugged durability of the Silver Frame (RS-M50).
• Excellent Low-Light Performance: Outfitted with high-transmission, anti-reflective (AR) coated tempered glass, optimizing sunlight absorption for reliable output on overcast days, dawn, and dusk.
• Extreme Weather Resistance: Certified to withstand high-impact physical loads, including heavy snow loads up to 5400 Pa and extreme wind forces up to 2400 Pa.

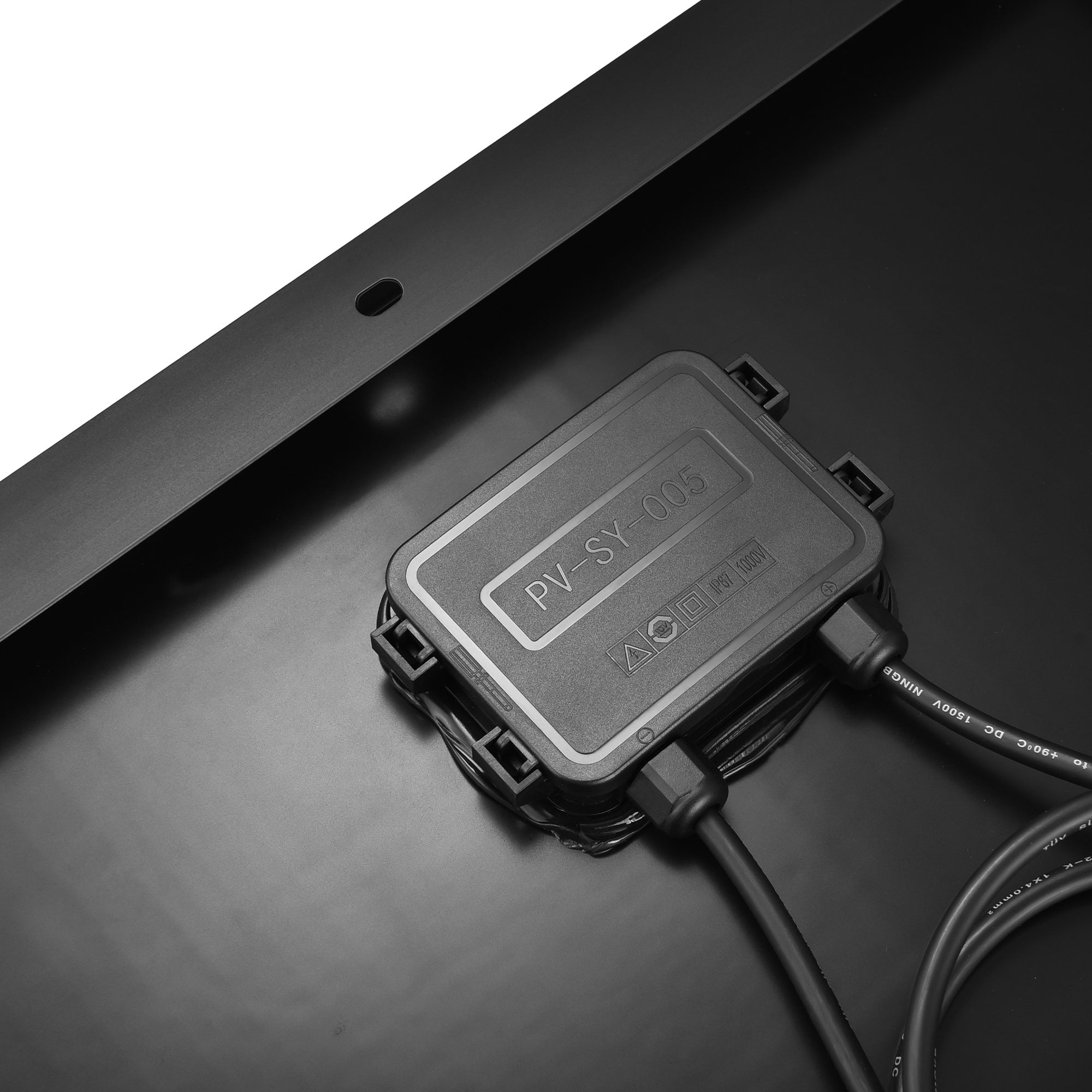

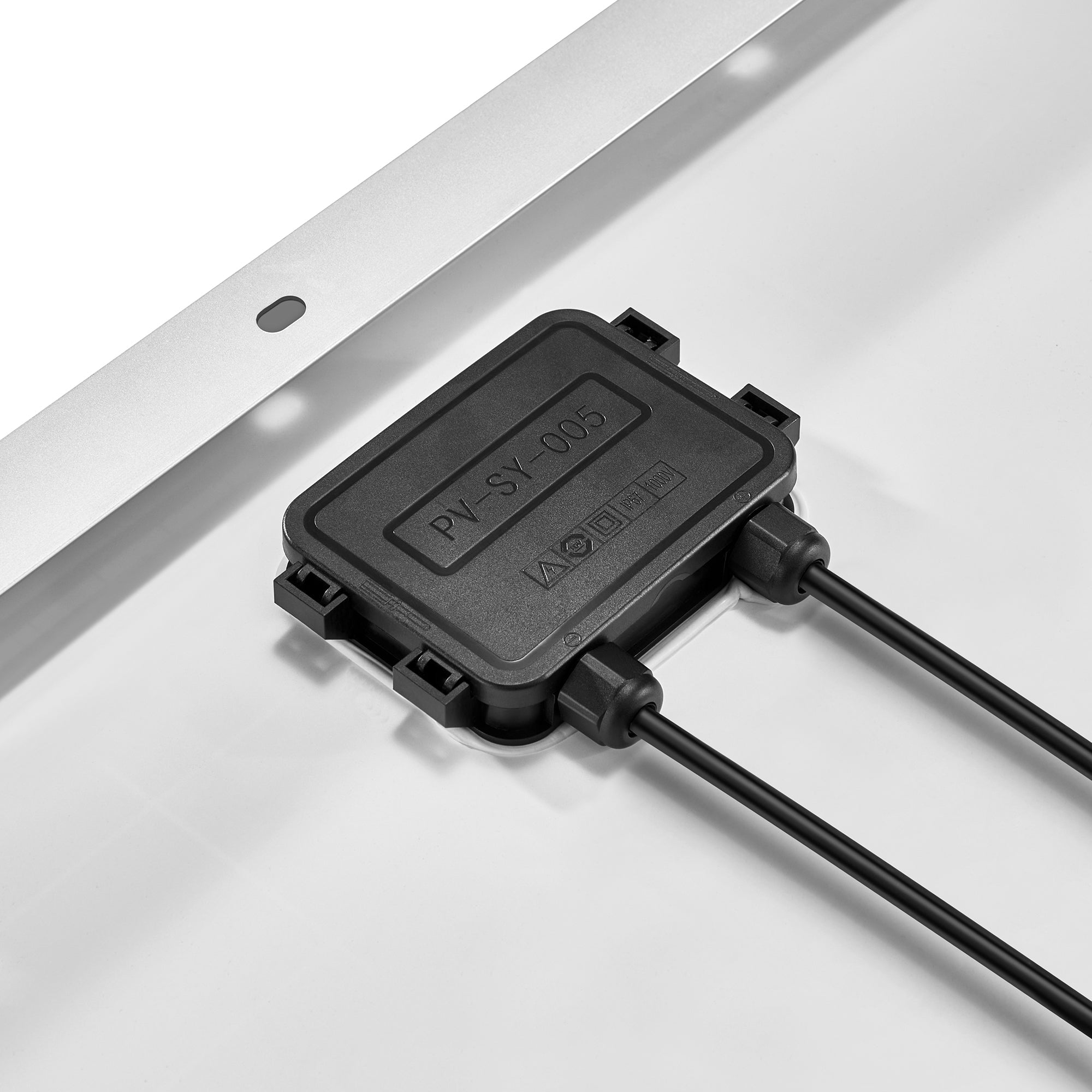

• All-Weather Protection: Featuring an IP67-rated waterproof junction box with built-in bypass diodes to minimize power drops caused by partial shading, and pre-attached 2-foot solar cables.

Rich Solar MEGA 50 Comparison: Onyx vs. Silver

Review the specific mechanical and electrical configurations to choose the perfect 50W 12V solar panel for your system layout:

Applications & Easy Installation

The compact footprint makes this 50-watt 12V panel incredibly versatile. It is ideal for marine crafts, teardrop trailers, camper vans, overlanding setups, gate openers, and remote telemetry stations. Each panel comes engineered with:

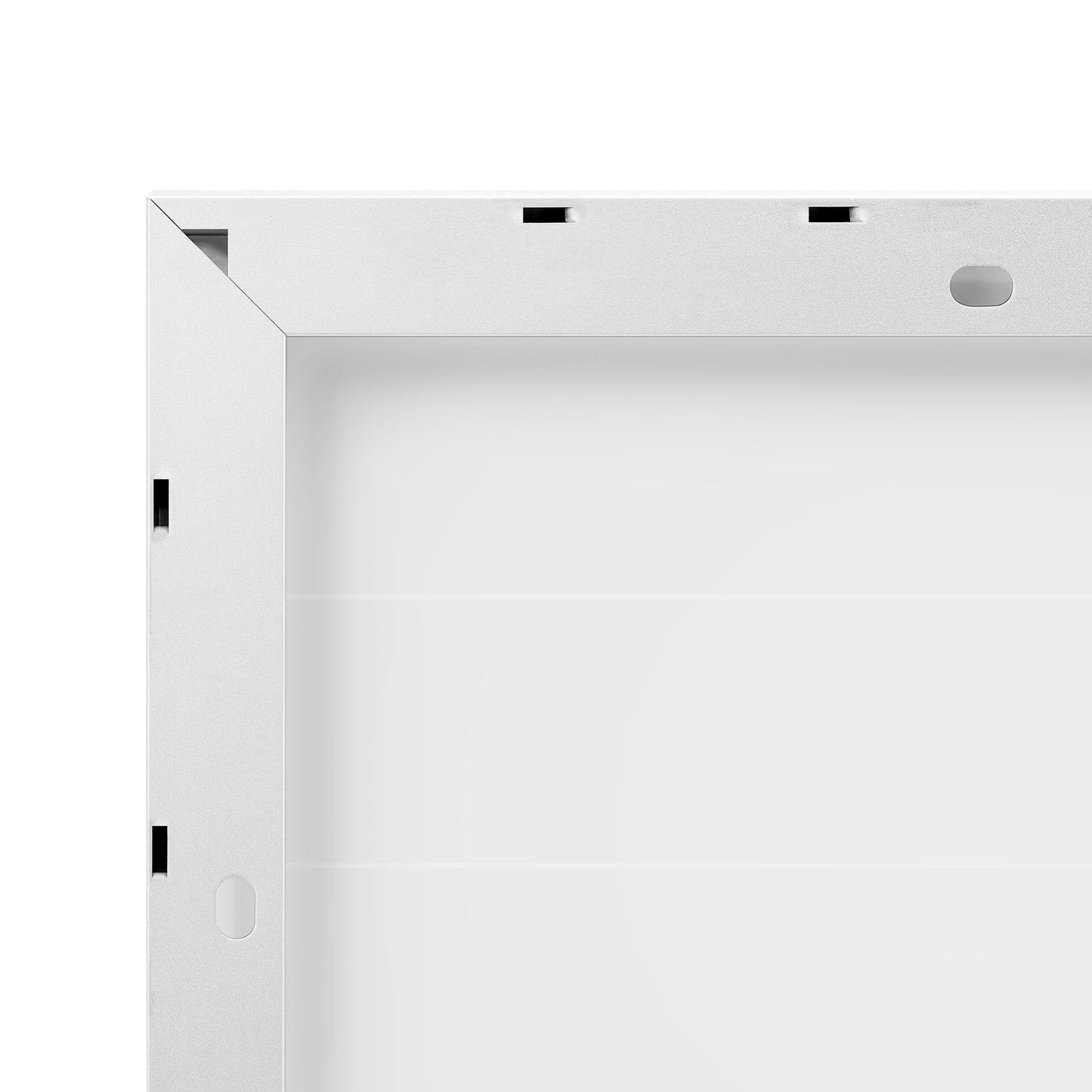

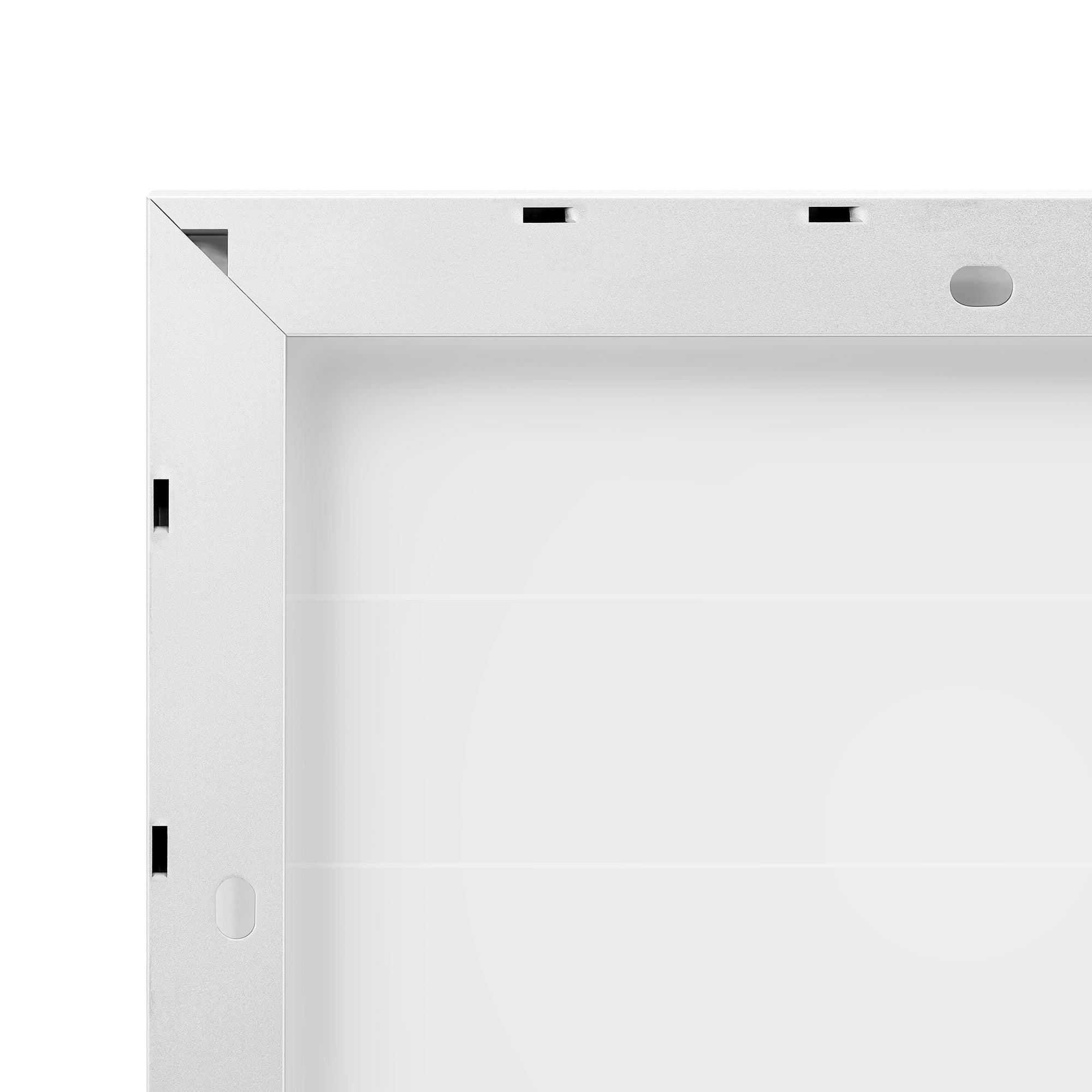

• Anodized corrosion-resistant aluminum frames to combat severe salt and moisture environments.

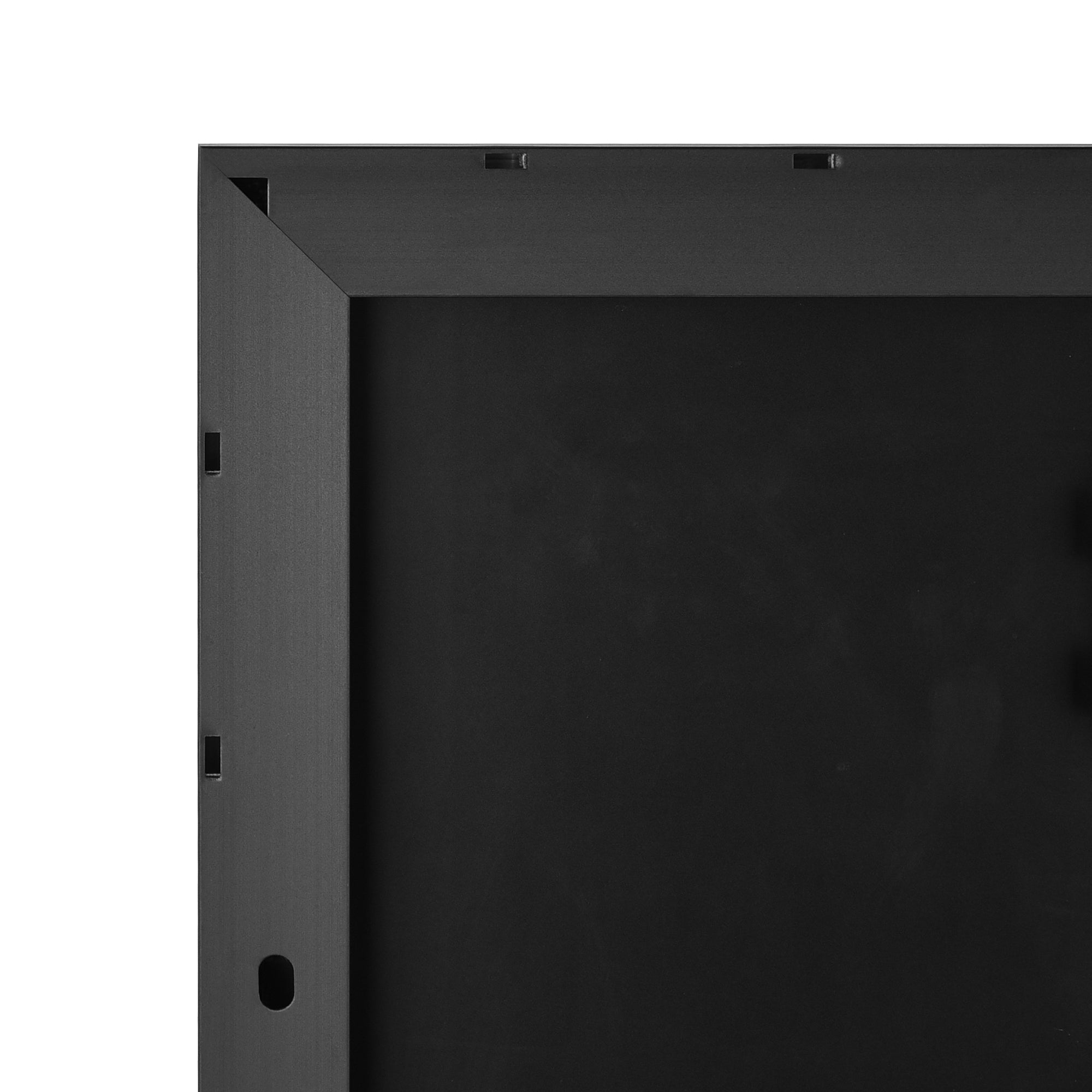

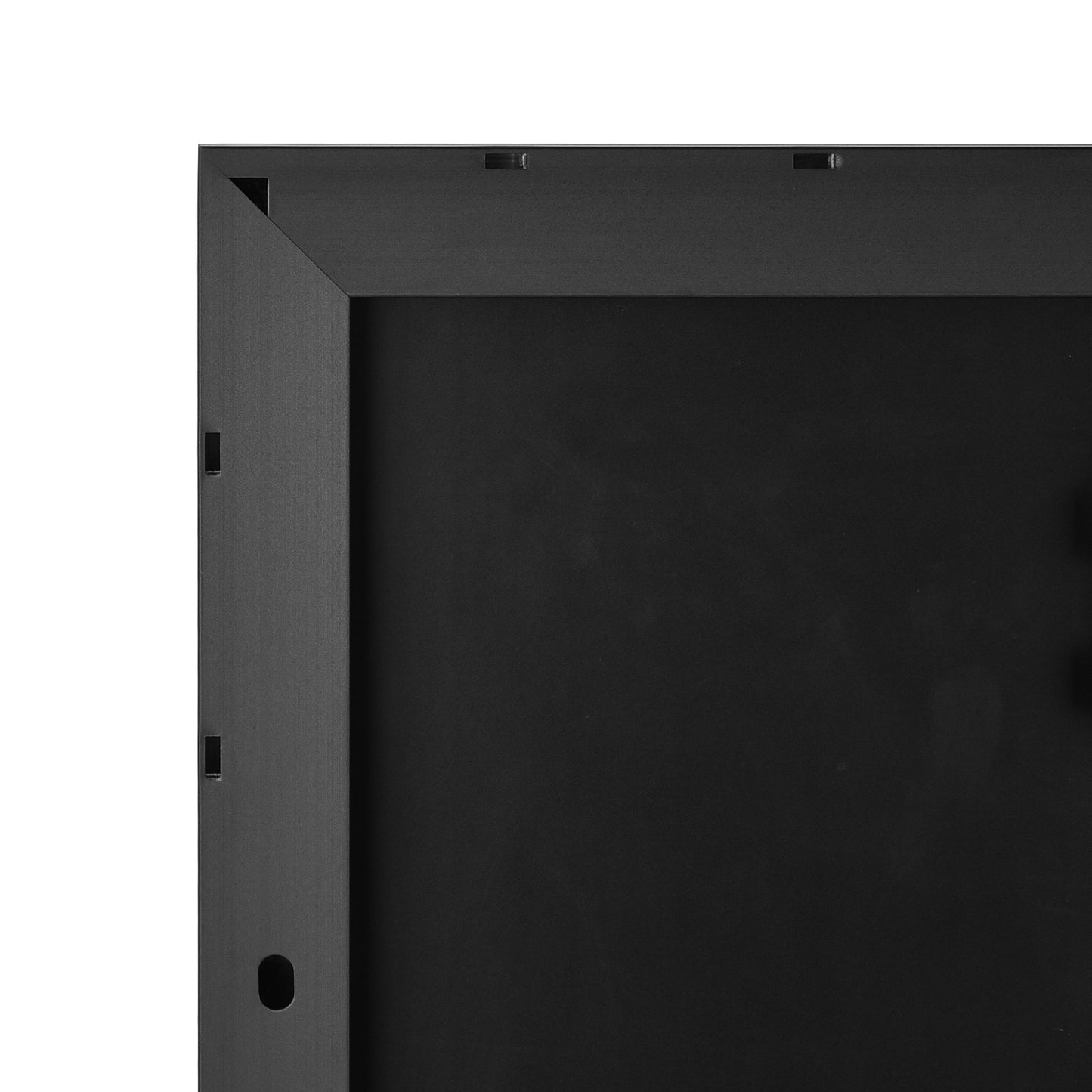

• 8 pre-drilled mounting holes engineered for direct compatibility with standard Z-brackets, tilt mounts, pole mounts, and specialized roof racks.
• Pre-attached 2-foot 12AWG solar leads terminating in standard waterproof solar connectors for plug-and-play pairing with on-grid or off-grid inverters and MPPT/PWM charge controllers.

Warranty & Structural Guarantee

• 25-Year Power Output Warranty: Guaranteed cell longevity to ensure decades of off-grid performance.
• 10-Year Material & Workmanship Warranty: Complete coverage against defects in factory framing and physical assembly components.

Frequently Asked Questions

What can a Rich Solar 50W solar panel run?
A 50W solar panel is primarily designed to maintain and trickle charge 12V battery banks (such as AGM, Gel, or Lithium Iron Phosphate). It supplies roughly 150-250 Watt-hours of energy per day depending on sun exposure, which is ideal for keeping up with small electronics, LED lighting, bilge pumps, gate openers, and keeping vehicle starter batteries topped off while parked.

What is the difference between Rich Solar MEGA 50 Onyx and Silver?

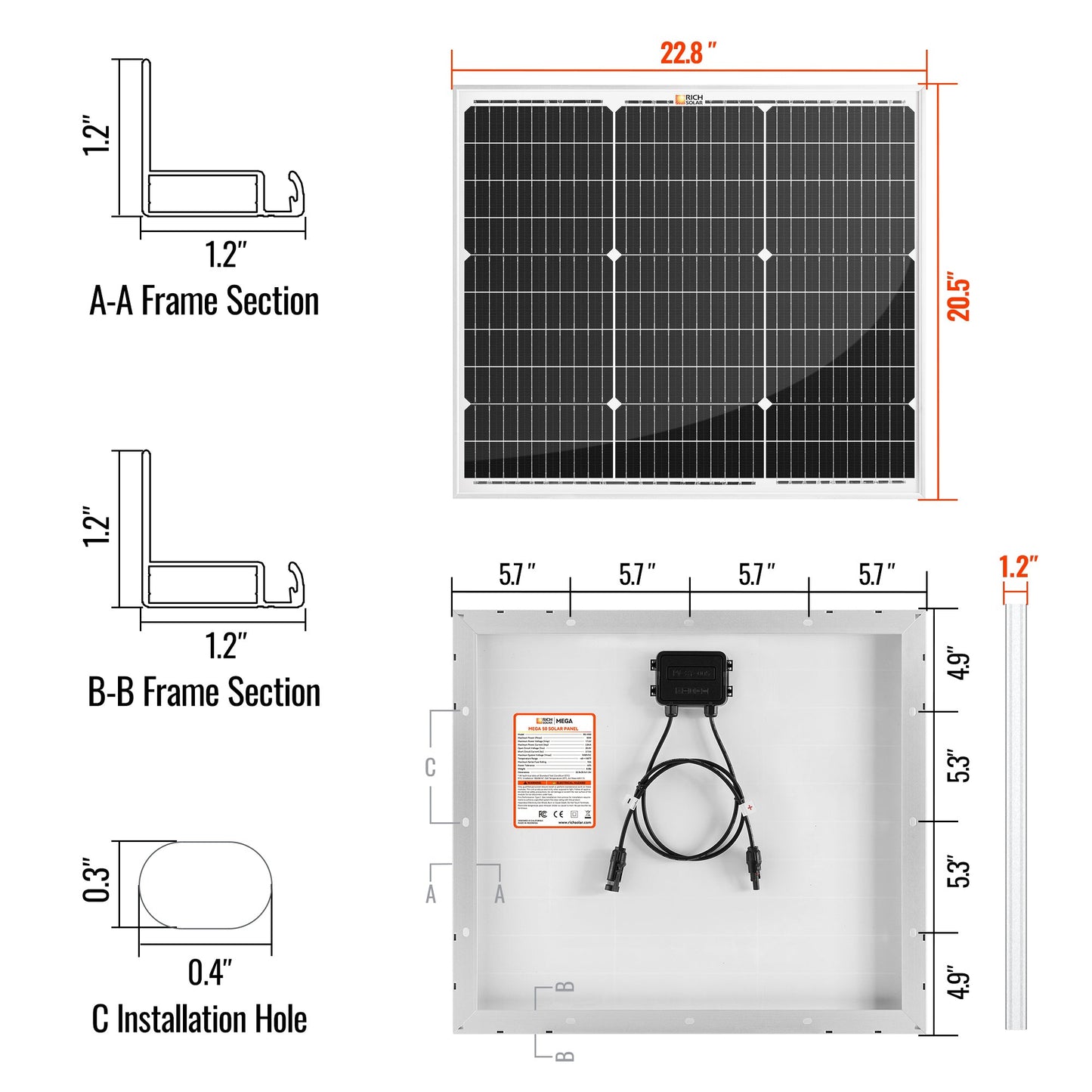

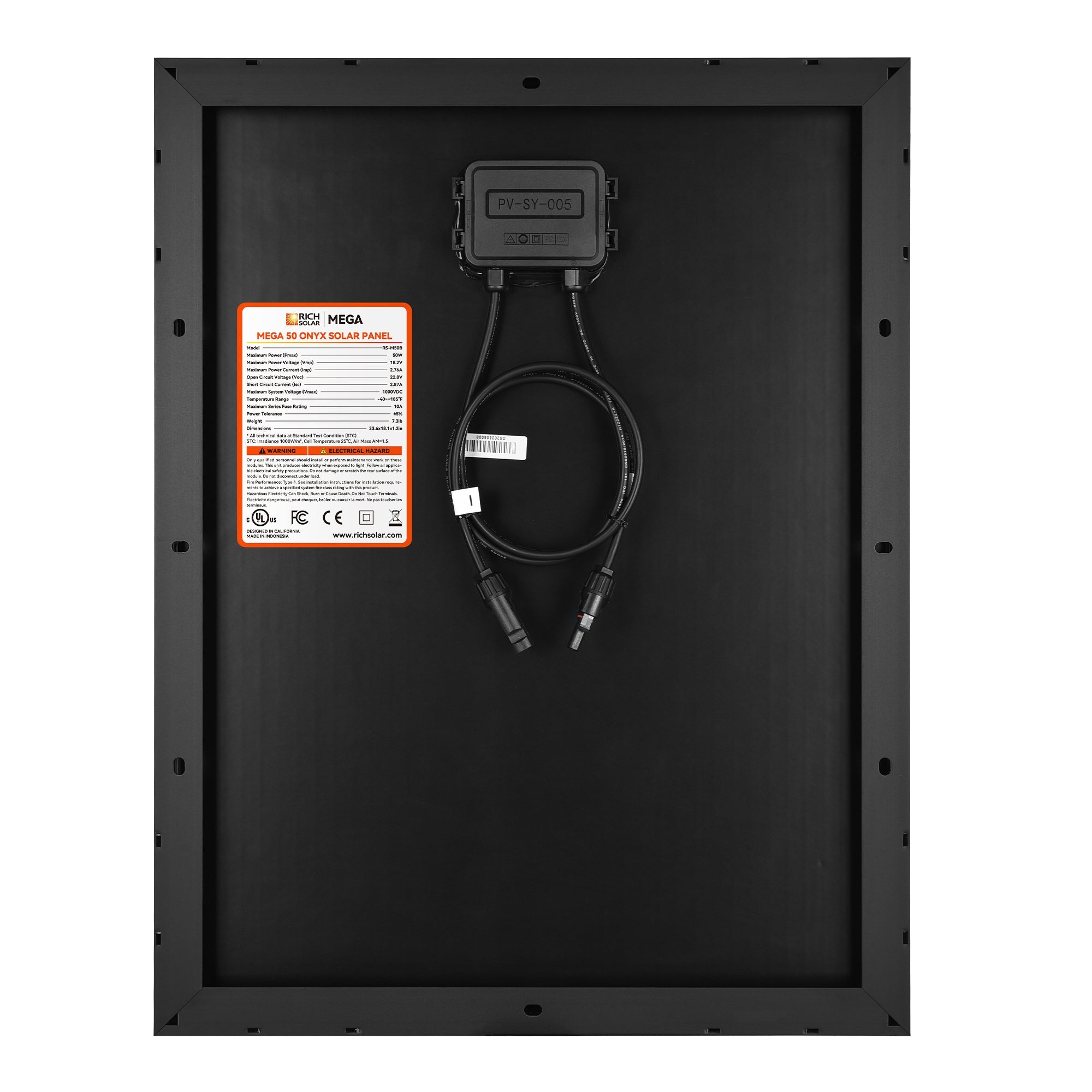

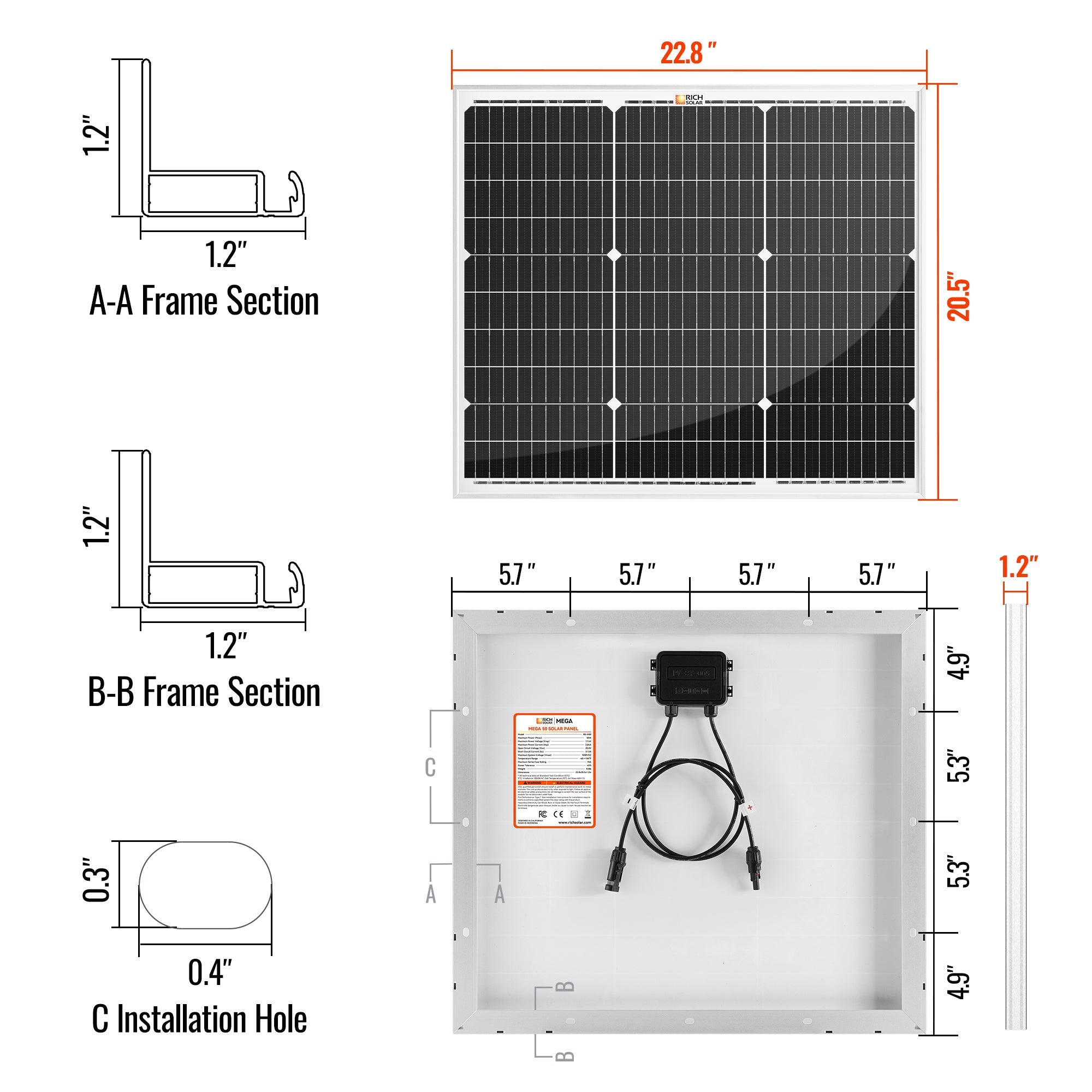

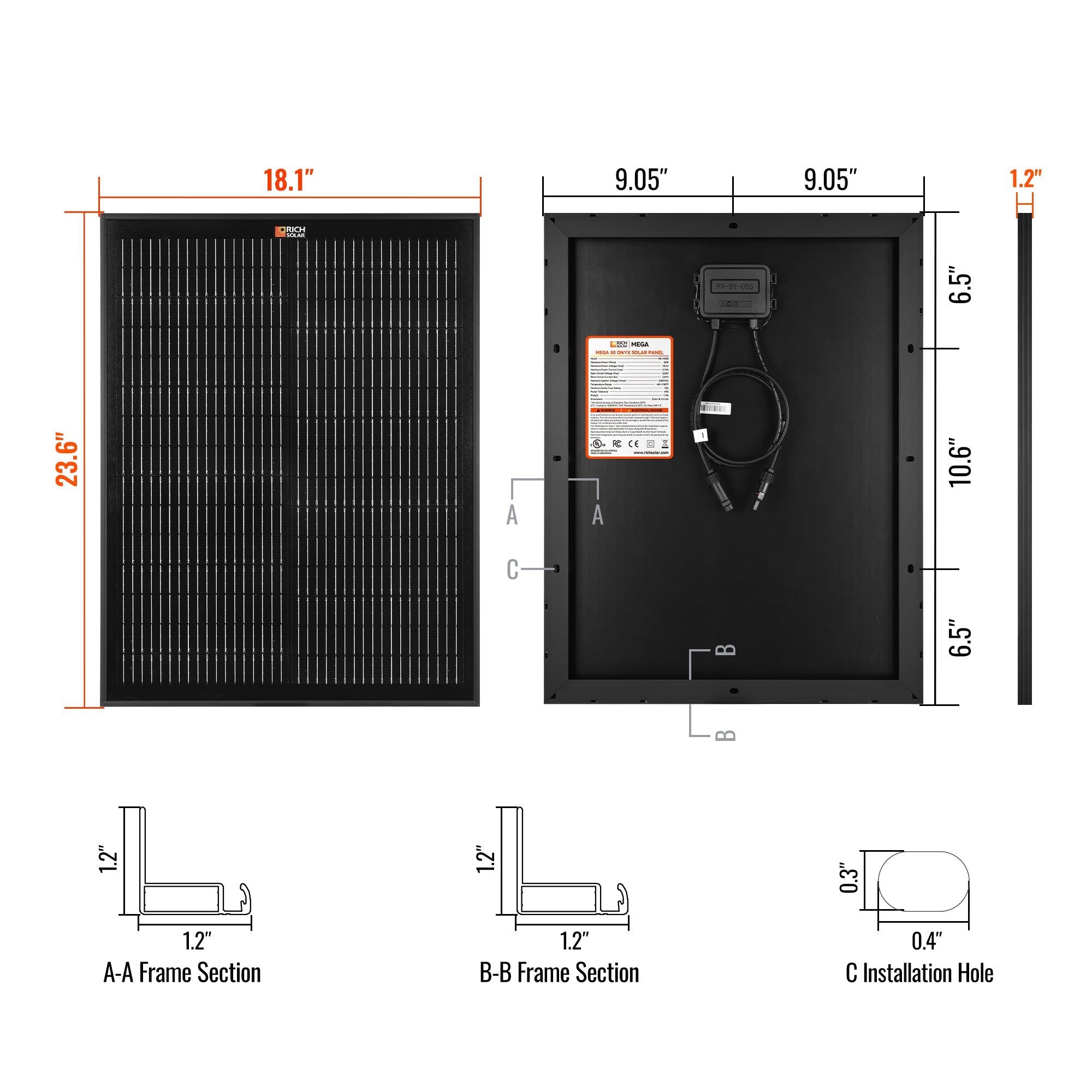

The core differences lie in aesthetics, physical layout, and frame width. The Onyx variant features a stealthy black anodized frame, measuring 23.6 x 18.1 in and weighing 7.3 lbs. The Silver variant uses a raw anodized aluminum frame, measuring 22.8 x 20.5 in and weighing 8.0 lbs. Review our comparison table above to check slight differences in voltage (Vmp) and amperage (Imp) parameters to align perfectly with your charge controller settings.

Do I need a charge controller with this 50W 12V panel?
Yes. Although it is a lower-wattage panel, its Open Circuit Voltage (Voc) can reach over 20-22V. A charge controller (either a basic PWM or an efficient MPPT controller) is highly recommended between the panel and your 12V battery to protect against overcharging and reverse current drainage during night hours.

Are these Rich Solar panels waterproof and safe for marine use?
Absolutely. Both the Onyx and Silver options feature heavy-duty corrosion-resistant anodized aluminum frames and an IP67-rated waterproof junction box with pre-installed bypass diodes, ensuring complete safety and structural integrity on boats, yachts, docks, and harsh marine applications.

Can I wire multiple 50W panels together for more power?

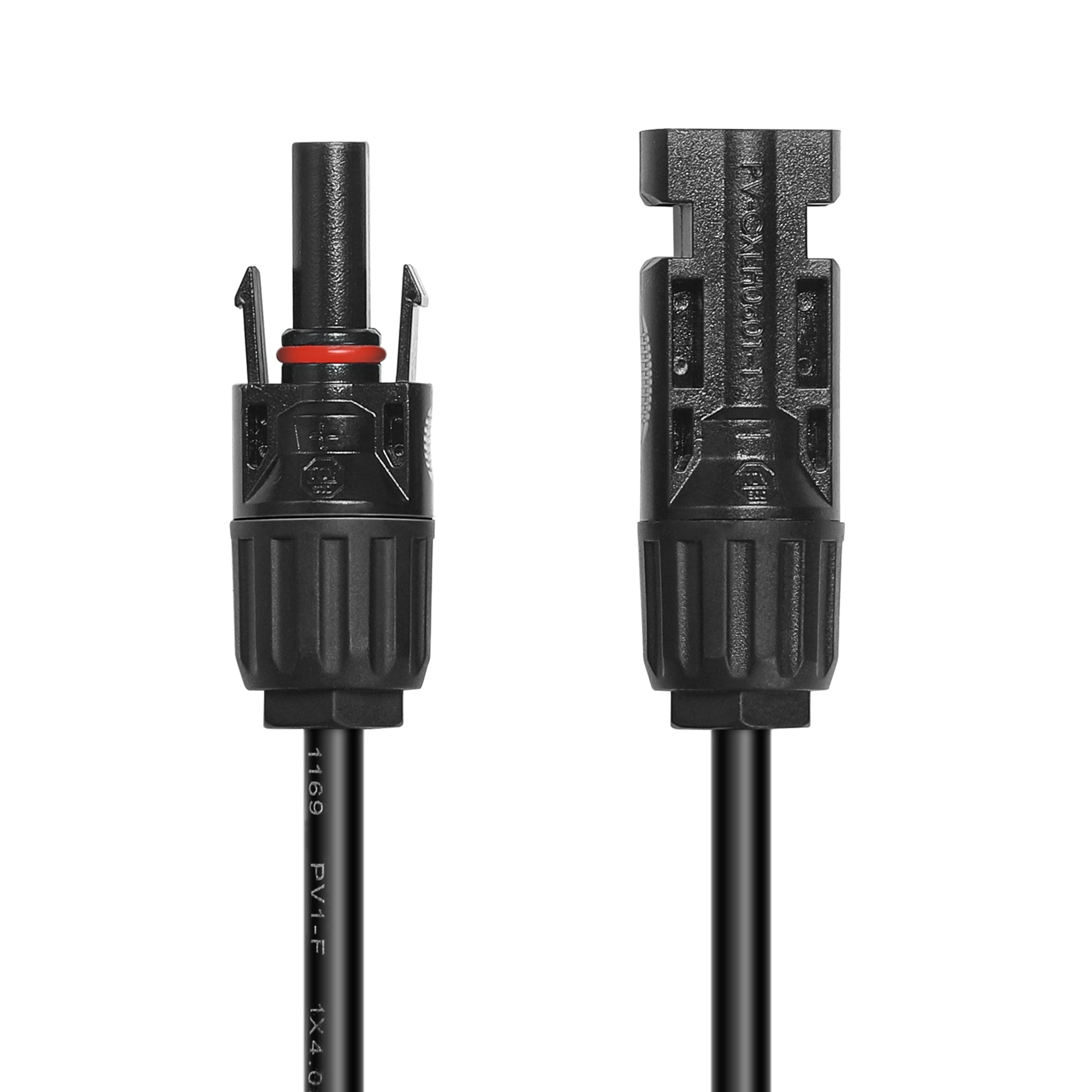

Yes. This panel uses standard MC4 connectors, so you can wire additional 50W panels (or other Rich Solar panels of the same voltage) in series or parallel to scale up your array, as long as your charge controller's input voltage and amperage ratings can handle the combined output.

Does this panel still produce power in cloudy weather or partial shade?
Yes, at reduced output. Monocrystalline cells hold up better than most in diffuse light, and built-in bypass diodes mean a shaded section does not drag the whole panel down — the unshaded cells keep working. Expect a fraction of rated output on an overcast day, not zero.

How is the panel actually fixed down?
Through pre-drilled holes in the aluminium frame, using whichever bracket suits the surface: Z-brackets, rails, tilt mounts or pole mounts. Those brackets are typically a separate purchase. Match the fixing to the roof material, and use sealant on any penetration.

What warranty does this panel carry?
Rich Solar backs its panels with a 25-year power output warranty alongside a 10-year workmanship warranty covering manufacturing defects. Exact terms for this model are in the specifications above.

How does the 50W model compare to other panels in the Rich Solar MEGA lineup?
The MEGA lineup spans roughly 50W to 410W. Smaller panels (50-100W) suit trickle-charging or small off-grid setups, mid-size panels (150-250W) suit RVs and cabins, and larger panels (300W+) suit home backup and off-grid ground-mount arrays. Choose based on your available mounting space and daily power needs.

Do I need an electrician to install this panel?
Most owners install and wire these panels themselves using the included MC4 connectors, since it's a DC-only component. If you're tying the system into your home's AC wiring through an inverter or hybrid system, we recommend a licensed electrician for that portion of the install.
